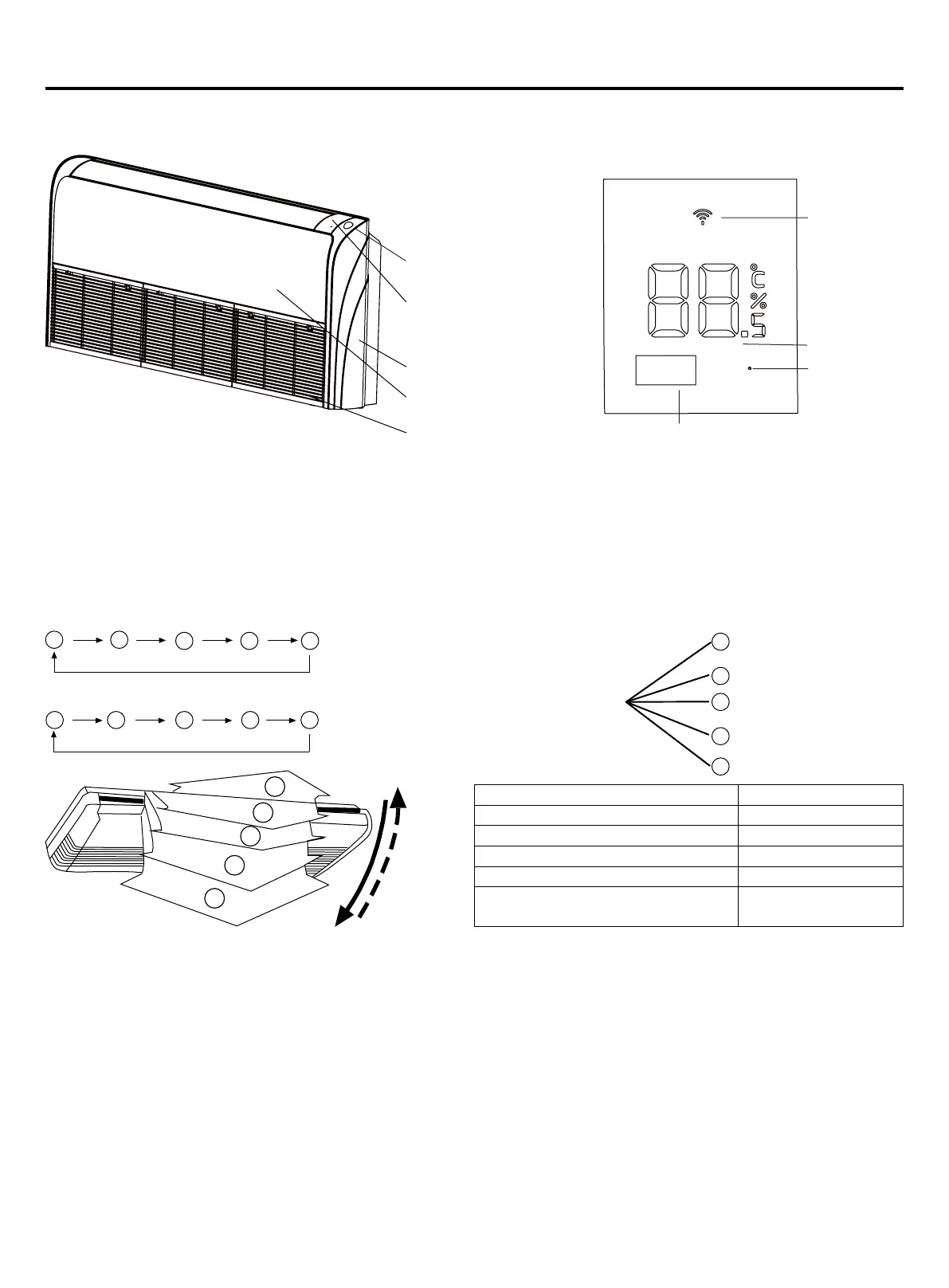

Parts and Functions
Indoor unit
Wind Direction Regulation
Fixing Outlet Direction
Operation Control Panel
Human Sensor
Cover Plate
Front Panel
Inlet Grill (Filter inside)
Operating Control Panel
Wi-Fi
Indicator
Lamp
Display
Indicator
Lamp
Emergency
Switch
Remote Receiver
Note:
For the wired control type unit, the unit state should be checked by the wired controller, instead of the
remote receiver. And if you set the TIMER function, the TIMER LED on the remote receiver will not be on.
Auto Airow
Press Up/Down Airow button, outlet guide plate changes posture as follows:
COOL/DRY/FAN:
1
2
3 4 5
HEAT:
1
2345
1
2
3
4
5
Upper/Lower Guide Plates Swing Range:
5
4
3
2
1
Air Guide Plate Positioning Swing Range
① ①
→
③
② ①
→
③
③ ②
→
④
④ ③
→
⑤
⑤
①
→
⑤
(All Covered)
Decide upon a proper angle when guide plates move in auto airow mode and press Wind Direction button to x wind
direction.
Upper/lower aps commanding airow directions shall be positioned as follow when xing wind directions:
Upward in cooling and drying mode
Downward in heating mode
• Make sure that outlet plates or aps are adjusted only and always through the Wind Direction button on remote control;
manual adjusting may cause malfunction.
• Outlet guide plates constantly positioned downwards are prohibited when cooling and drying modes are activated as
vapor close to outlet grille may condense and resultant water may drip down from the unit.
• Please pay close attention to temperature regulation values when operating the unit in places where infants, children,
old people and patients are to be found.
