Haier HF-100 User Manual

Problem Possible cause Remedy
Temperature in freezer not cold No power Check fuse in plug
enough Door is open for too long Do not open door
needlessly
Temperature control set to MIN Turn control towards MAX
Abnormal noise and vibration Freezer not level Adjust feet to level the unit
Condenser tubes touching cabinet Carefully ease away
or other parts tubes from other parts
Page 7
Troubleshooting
Fuse and mains plug replacement
This product is supplied with a moulded plug
which contains a 13A fuse. If you are simply
replacing the fuse, you must use a 13A fuse which
has been approved by ASTA to BS1362 (Figure 9).
If the plug does not fit the socket or becomes
damaged, a new plug must be fitted. Replace the
original plug with the correct plug for your socket. If
this is a 3-pin (square pin) 13A (BS1363) plug, you
must make sure that it is fitted with an ASTA
approved 13A fuse.
If another type of plug is used, it must be protected
by a 13A fuse, either in the plug or at the
distribution board.
1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this
appliance are coloured in accordance with the
following code (Figure 10):
GREEN/YELLOW = EARTH (E)
BLUE = NEUTRAL (N) BROWN = LIVE (L)
This product must be earthed
As the colours of the wires in the mains lead may
not correspond with the colour markings identifying
the terminals in your new plug, proceed as follows.
The wire which is coloured GREEN or
YELLOW/GREEN must be connected to the
terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be
connected to the terminal in the plug which is
marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be
connected to the terminal which is marked with the
letter L or coloured RED.
3. Ensure that the connections are tight and that no
loose strands are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED
ELECTRICIAN.
If the mains lead becomes damaged consult a
qualified electrician.

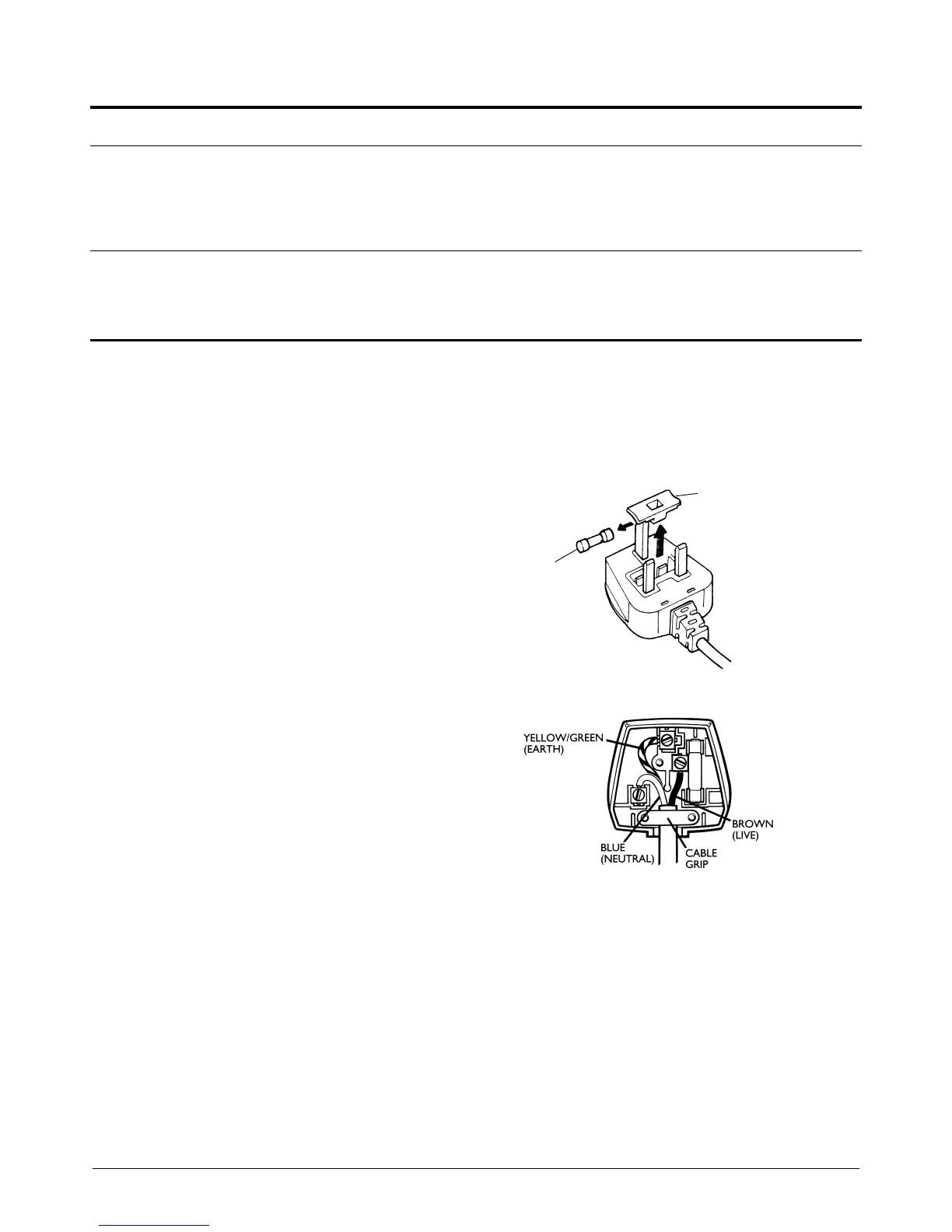

FIGURE 9
FIGURE 10
FUSE
FUSE
COVER

Haier HF-100 Specifications

Capacity

total gross capacity	93 litres
net capacity	68 litres

Power

power supply	220/240V, 50Hz
nominal yearly consumption	291 kWh

Weight and Dimensions

dimensions	865x500x550 mm
