9
IMPORTANT: Do not apply pressure to the
screen display area which may compromise
the integrity of the display. The manufacturer’s
warranty does not cover user abuse or
improper installations.

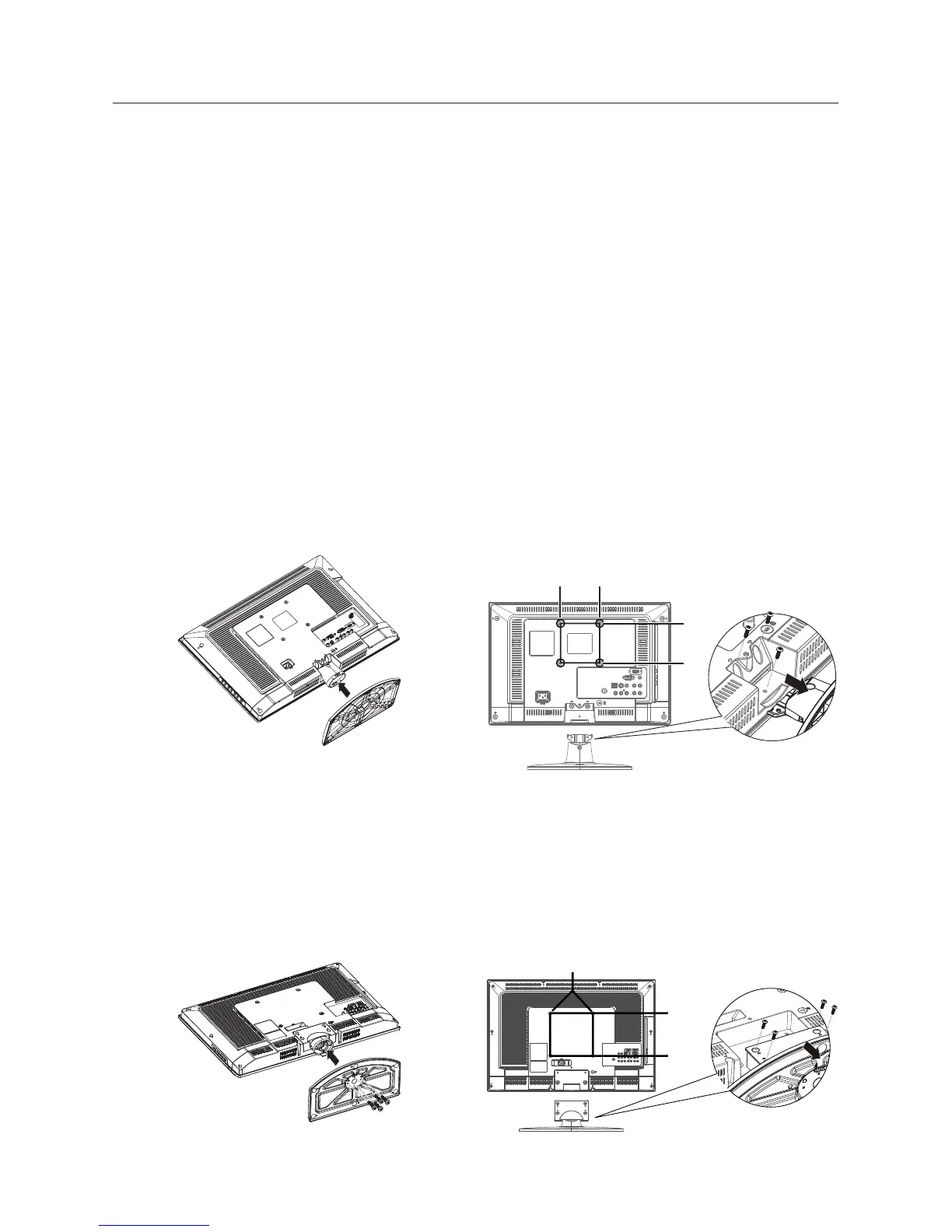

ATTACHING THE BASE
IMPORTANT: The Base of the HDTV must
be assembled prior to usage.
For HL19D2 / HL24XD2
Place TV unit face down on a soft and 1.
flat surface (blanket, foam, cloth, etc.) to
prevent any damage to the HDTV.
Carefully align and insert the Base to the 2.
stand.
Gently push the Base towards the HDTV 3.
until the locking mechanism locks into
place.
For HL32D2
Place TV unit face down on a soft and 1.
flat surface (blanket, foam, cloth, etc.) to
prevent any damage to the HDTV.
Carefully align and insert the Base to the 2.
stand.
Insert the screws to the bottom of the 3.
base and tighten the base to the stand.
PREPARING YOUR LCD HDTV FOR
WALL MOUNTING
We suggest that you keep your TV at least 2.36
inches (60 mm) from the wall to prevent cable
interference.
Before mounting your TV on the wall, you need
to remove the base.
For your safety, please use only with UL listed
wall mount bracket with minimum weight of
the TV without stand. (Please see page 23.)
To attach a wall mount bracket to your TV:
For HL19D2 / HL24XD2
Remove the screws holding your TV to the 1.
stand.
Remove the stand base from your TV.2.
Secure the wall mount bracket to the 3.
back of your TV using four M4 screws, as
indicated in the illustration.
100 mm
100 mm
For HL32D2
Remove the screws holding your TV to the 1.
stand.
Remove the stand base from your TV.2.
Secure the wall mount bracket to the 3.
back of your TV using four M6 screws, as
indicated in the illustration.
200 mm
200 mm
PREPARATION
