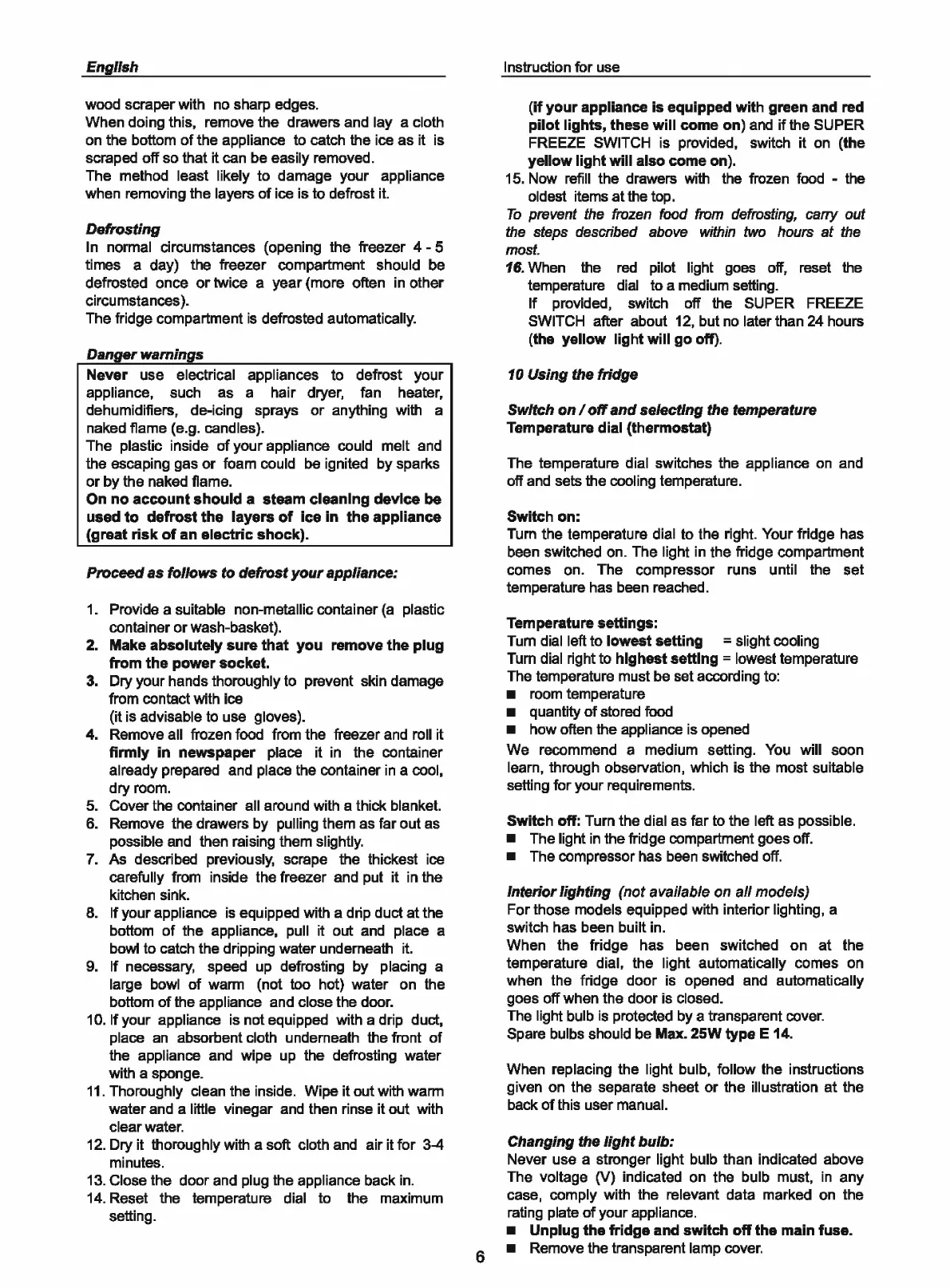

Haier HRF-368F User Manual

English Instruction for use
wood scraper with no sharp edges.
When doing this, remove the drawers and iay a cloth
on the bottom of the appliance to catch the ice as it is
scraped off so that it can be easily removed.
The method least likely to damage your appliance
when removing the layers of ice is to defrost it.
Dsh'osting
In normal circumstances (opening the freezer 4-5
times a day) the freezer compartment should be
defrosted once or twice a year (more often in other
circumstances).
The fridge compartment is defrosted automatically.
Danger warnings _
Never use electrical appliances to defrost your
appliance, such as a hair dryer, fan heater,
dehumidifiers, de-icing sprays or anything with a
naked flame (e.g. candles).
The plastic inside of your appliance could melt and
the escaping gas or foam could be ignited by sparks
or by the naked flame.
On no account should a steam cleaning device be
used to defrost the layers of ice in the appliance
(great risk of an electric shock).
Proceed as MIows to defirost your appliance:
1. Provide a suitable non-metallic container (a plastic
container or wash-basket).
2. Make absolutely sure that you remove the plug
from the power socket.
3. Dry your hands thoroughly to prevent skin damage
from contact with ice
(it is advisable to use gloves).
4. Remove all frozen food from the freezer and roll it
firmly in newspaper place it in the container
already prepared and place the container in a cool,
dry room.
5. Cover the container all around with a thick blanket.
6. Remove the drawers by pulling them as far out as
possible and then raising them slightly.
7. As described previously, scrape the thickest ice
carefully from inside the freezer and put it in the
kitchen sink.
8. If your appliance is equipped with a drip duct at the
bottom of the appliance, pull it out and place a
bowl to catch the dripping water underneath it.
9. If necessary, speed up defrosting by placing a
large bowl of warm (not too hot) water on the
bottom of the appliance and close the door.
10. If your appliance is not equipped with a drip duct,
place an absorbent cloth underneath the front of
the appliance and wipe up the defrosting water
with a sponge.
11. Thoroughly clean the inside. Wipe it out with warm
water and a little vinegar and then rinse it out with
Clearwater.
12. Dry it thoroughly with a soft cloth and air it for 3-4
minutes.
13. Close the door and plug the appliance back in.
14. Reset the temperature dial to the maximum
setting.
(if your appliance is equipped with green and red
piiot lights, these will come on) and if the SUPER
FREEZE SWITCH is provided, switch it on (the
yellow light will also come on).
15. Now refill the drawers with the frozen food - the
oldest items at the top.
To prevent the frozen food from defrosting, cany out
tile steps described above within two hours at the
most.
16. When the red pilot light goes off, reset the
temperature dial to a medium setting.
If provided, switch off the SUPER FREEZE
SWITCH after about 12, but no later than 24 hours
(the yellow light will go off).
10 Using tite fridge
Switch on/off and selecting the temperature
Temperature dial (thermostat)
The temperature dial switches the appliance on and
off and sets the cooling temperature.
Switch on:
Turn the temperature dial to the right. Your fridge has
been switched on. The light in the fridge compartment
comes on. The compressor runs until the set
temperature has been reached.
Temperature settings:
Turn dial left to iowest setting = slight cooling
Turn dial right to highest setting = lowest temperature
The temperature must be set according to:
■ room temperature
■ quantity of stored food
■ how often the appliance is opened
We recommend a medium setting. You will soon
learn, through observation, which is the most suitable
setting for your requirements.
Switch off: Turn the dial as far to the left as possible.
■ The light in the fridge compartment goes off.
■ The compressor has been switched off.
Interior lighting (not available on all models)
For those models equipped with interior lighting, a
switch has been built in.
When the fridge has been switched on at the
temperature dial, the light automatically comes on
when the fridge door is opened and automatically
goes off when the door is closed.
The light bulb is protected by a transparent cover.
Spare bulbs should be Max. 25W type E 14.
When replacing the light bulb, follow the instructions
given on the separate sheet or the illustration at the
back of this user manual.
Changing tite light bulb:
Never use a stronger light bulb than indicated above
The voltage (V) indicated on the bulb must, in any
case, comply with the relevant data marked on the
rating plate of your appliance.
■ Unplug the fridge and switch off the main fuse.
■ Remove the transparent lamp cover.

Haier HRF-368F Specifications

General

Brand	Haier
Model	HRF-368F
Category	Freezer
Language	English
