Outdoor Unit
4
Loading of the battery
1
2
3
4

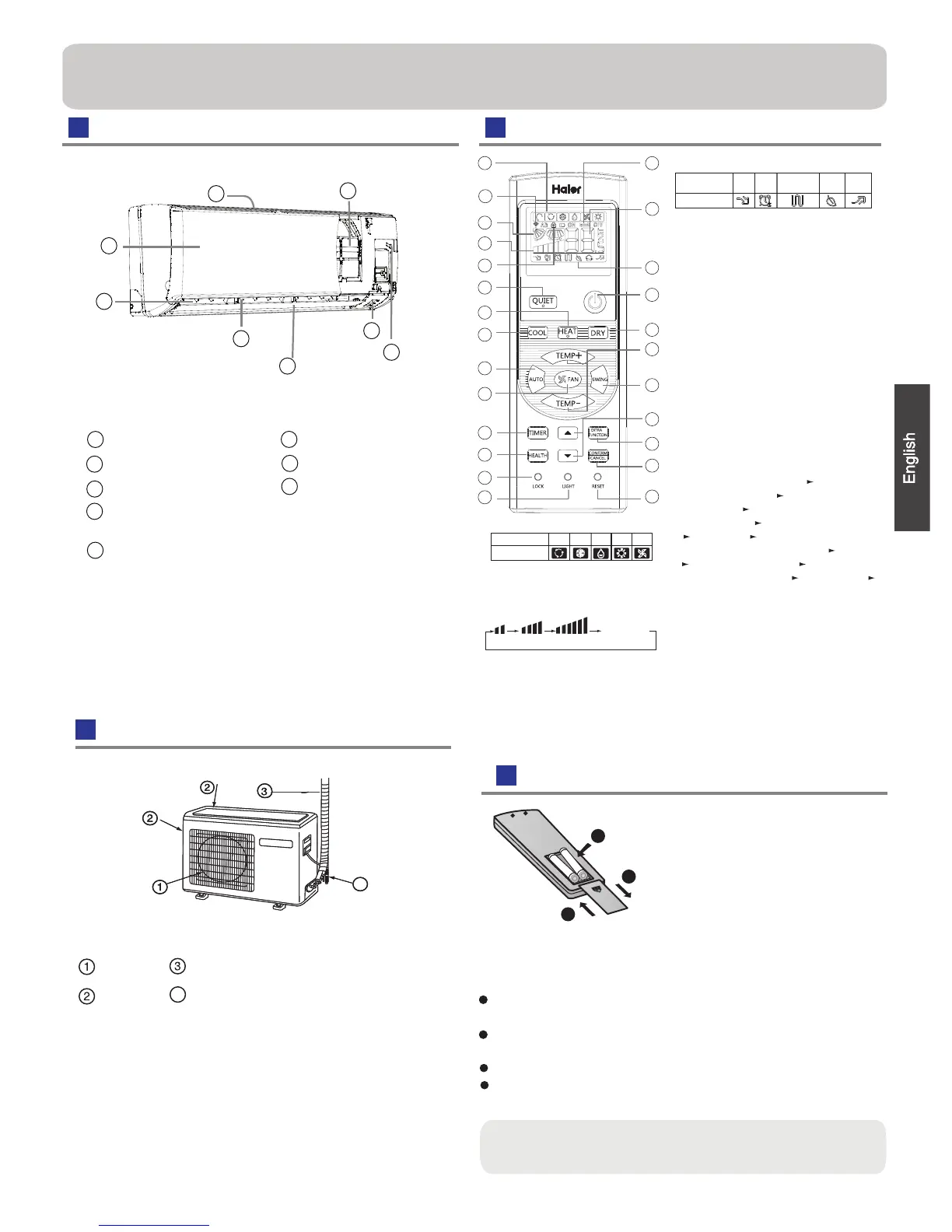

Parts and Functions
Indoor Unit
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Remote controller
Remove the battery cover;
Load the batteries as illustrated.
2 AAA batteries, resetting key
(cylinder);
" + "/"-";
Load the battery,then put on the cover again.
Note:
Please be subject to the actual produce purchased the
above picture is just from your reference
Please be subject to the actual produce purchased the
above picture is just from your reference
Air Purifying Filter
(inside)
Inlet
1
Inlet grille
2
Outlet
3
(adjust left and
Vertical blade
right air flow)
4
Display board
Horizontal flap
(adjust up and down air flow.
Don't adjust it manually)
Emergency
Switch
6
7
8
5
1
2
3
4
5
6
7
8
4
Hint:
Remove the batteries in case won't be in use for a long period. If
there is any display after taking-out, just press reset key.
1
2
3
Healthy function is not available for some units.
Be sure battery polarity is
correct
The distance from the remote to the receiver should be less than
23 feet (7 meters) with no obstructions.
Fluorescent lights or cordless telephones will reduce the range
of the remote.
If the display is dim the remote batteries may need to be replaced.
Remote malfunctions can sometimes be corrected by removing
the batteries for a few minutes and then replacing them.
1
1. Mode display
2. Signal sending display
4. FAN SPEED display
5. LOCK display
6. TIMER OFF display
TIMER ON display
LO MED HI
7.TEMP display
16. LOCK button
Used to lock buttons and LCD display.
25. RESET button
When the remote controller
appears abnormal, use a sharp
pointed article to press this button
to reset the remote
22. HOUR button
Operation mode
AUTO FANCOOL DRY
Remote controller
HEAT
1
2
3
4
5
9
10
11
12
13
14
15
16
17
22
23
24
25
19
20
21
8
18
7
6
Control the lightening and extinguishing
of the indoor LED display board.
3. SWING display
8
.
9. QUIET button
10. HEAT button
11. COOL button
12. AUTO button
13. FAN button
14. TIMER button
15. HEALTH button
17. LIGHT button
18. POWER ON/OFF button
19. DRY button
20. TEMP button
21. SWING button
23. EXTRA FUNCTION button
24.CANCEL/CONFIRM button
AUTO
Function: Setting and cancel to the
timer and other additional functions.
Display
circulated
Operation mode
Remote controller
QUITE
POWER
SLEEP
Supplemented
electrical
heating
HEALTH
Additional functions display
Function: Air sending--- Healthy
airflow position1--- Healthy airflow
position 2 --- Restore the original
flap position --- Right & left air airflow
--- A-B yard---10 and heating symbol
displayed simultaneously--- Sleeping
--- Electrical heating--- Refresh air
(
reserved function) --- Power ---
Fahrenheit/Celsius mode conversion
