SERVICE MANUL
HW50-1010W/HW50-1010S
Front Load Washing Machine
２０
Chapter 9 Wiring circuit and Self check

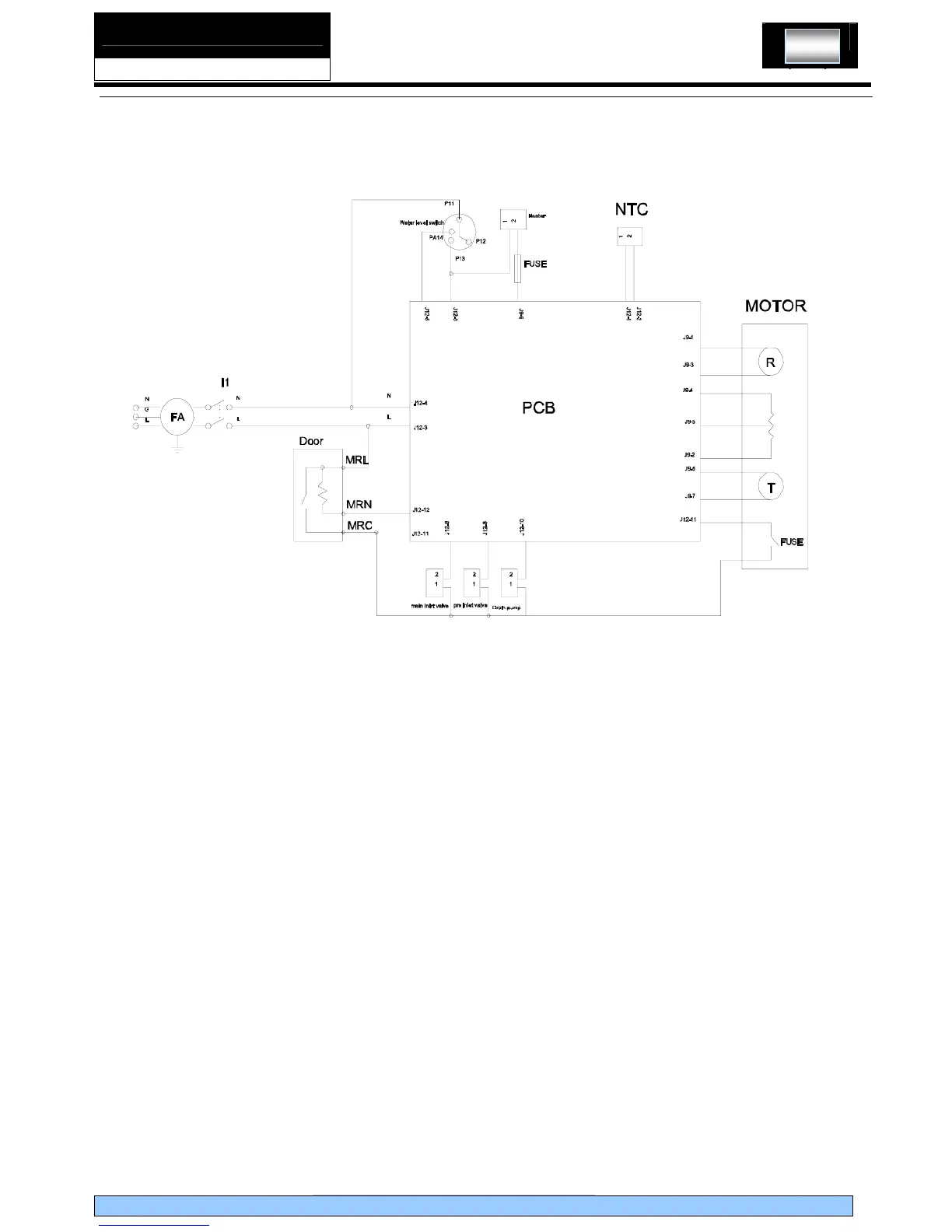

9-1. Wiring circuit
PCB-Printed Circuit Board
NTC-Temperature Sensor
FA-Interference Suppresser
Door-Door Lock
I1-Power Switch
Main inlet valve/pre inlet valve -Water Inlet Magnetic Valve
Water level Switch - Pressure Switch
Drain pump-Drainage Pump
Heater-Heating element
Motor –Motor
