Haier L15TA11W User Manual

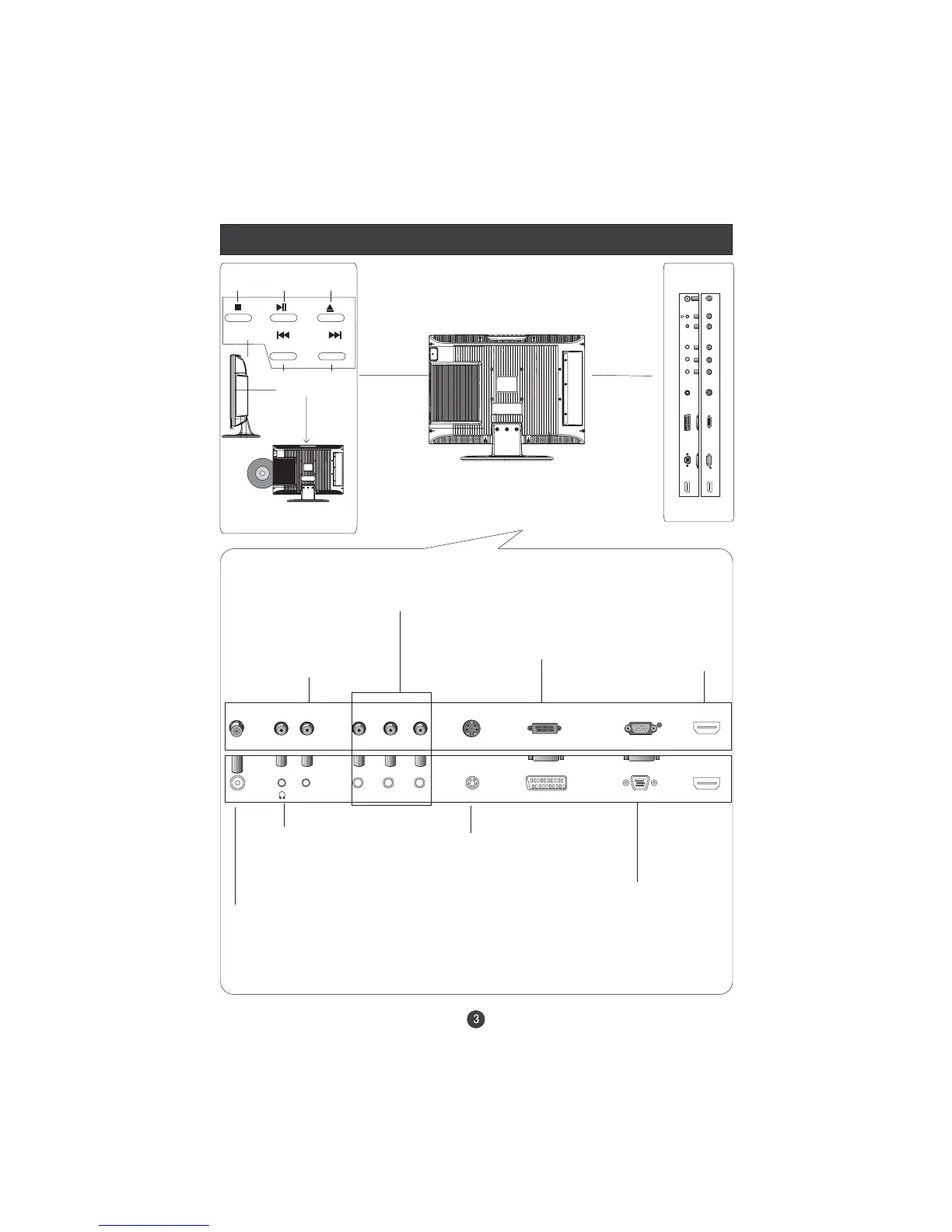

Connection Options
COMPONENT Input
Connect a component
video/audio
device to these jacks
VGA Input
Connect to the VGA
15PIN analog output
connector of the PC
display card for PC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Earphone port
VGA /COMPONENT/
S-VIDEO Audio Input
Connect the PC output
connector from a PC to
the audio input port
SCART
Connect to the DVD/
VCR/broadcasting
receiver or other
equipment
ANT IN
Y
Pr S-VIDEO
TV SCART VGA IN
AUDIO IN
Pb
HDMI
HDMI
Connect to HDMI
output of other
equipment
ANT
IN
Y
Pr
S-VIDEO
TV
SCAR
T
VGA
IN
AUDIO IN
Pb
HDMI
DVD
STOP
PLAY/PAUSE OPEN/CLOSE
PREV NEXT
DVD insert
(Please refer to actual product
of the DVD slot)

Haier L15TA11W Specifications

General

Brand	Haier
Model	L15TA11W
Category	LCD TV
Language	English
