-6-

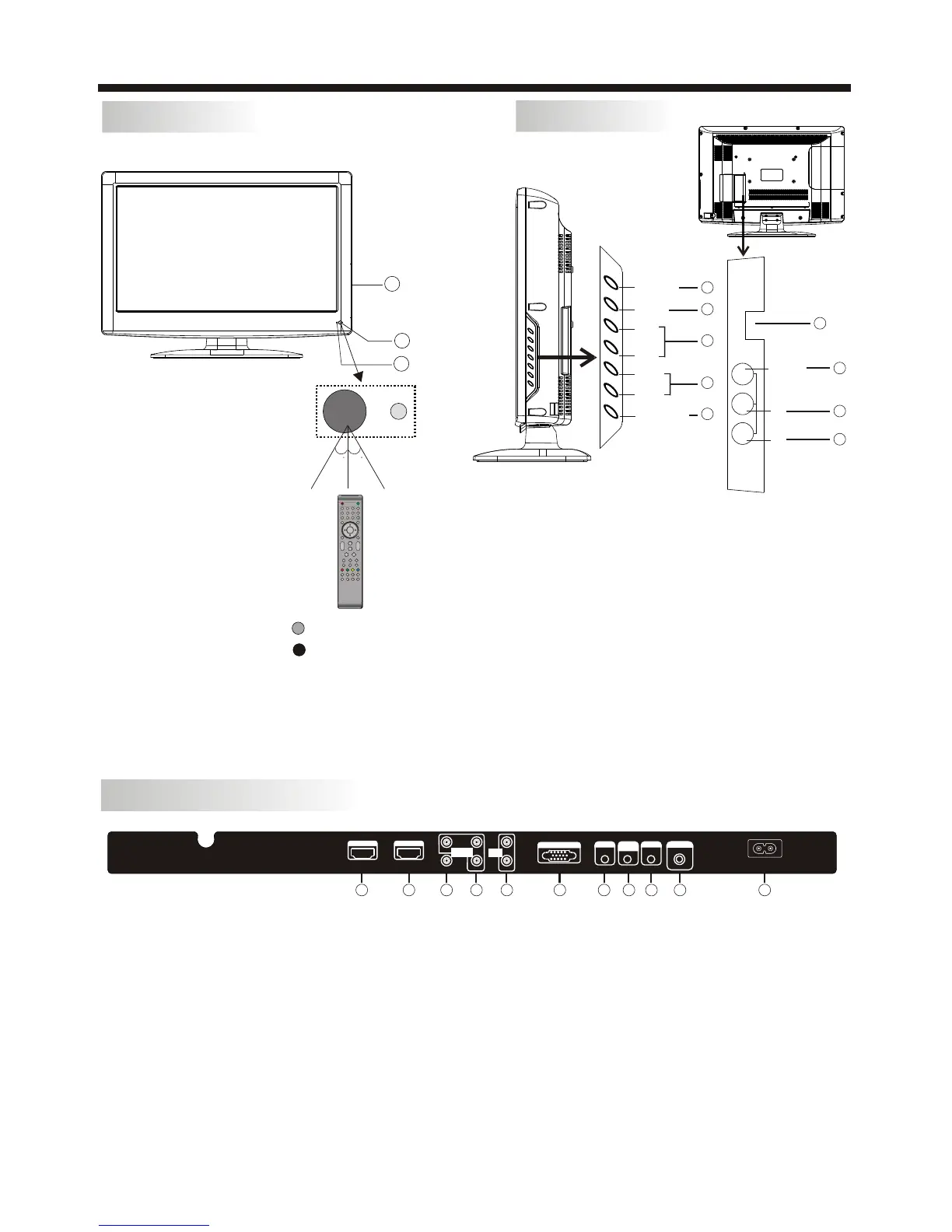

INSTALLATION
Front panel
REAR AV INPUT/OUTPUT
1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
6. USB INPUT
7. VIDEO INPUT
8. AUDIO INPUT-L
9. AUDIO INPUT-R
Side panel
SOURCE
MENU
CH+
CH-
VOL+
VOL-
ST ANDBY
1 2 3
4 5 6
7 8 9 0
+
CH
_
+
_
VOL
30 30
3
1
2
VIDEO
L
R
AV2
USB
R
L
VIDEO
Note: 1. Composite video input and component video input share the audio input.
2. When DVI connect is used on HDMI 1 Input, use "PC Audio" for the audio signal input.
3. When a DVI connection is used on the HDMI 2 Input, use "YPbPr Audio" for the audio signal input.
a ion the
7. Headphone Output
8. PC Audio Input
9. Coaxial
10. Antenna Socket
11. AC Power Socket
1. HDMI1 Input
2. HDMI2 Input
3. Composite Video Input
4. Component Video (YPbPr) Input
5. Audio Input
6. VGA Port (PC Input)
1
2
3
4
5
6
7
8
9
1 2
3
4 5
6
7
8
9
10 11
HDMI 1
AC INPUT
100-240V~50/60Hz
L
R
AV1
Pr
Y
Pb
HEADPHONE
PC AUDIO
INPUT
COAXIAL
RF INPUT
COMPONENT
INPUT
AUDIO
INPUT
VGA INPUT
HDMI 2
