Haier LE50F2280 User Manual

-6-
INSTALLATION

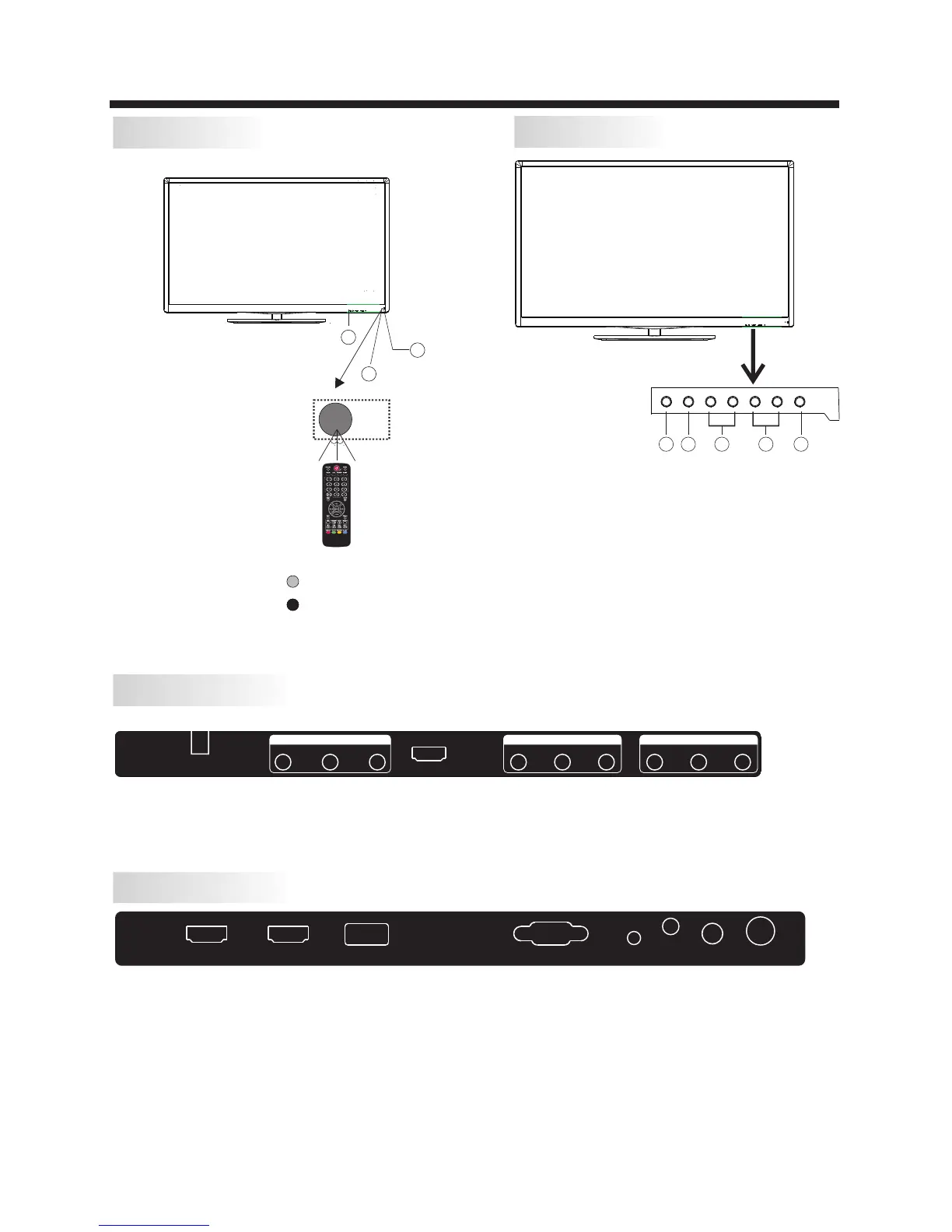

Front panel
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
All the terminals are (from left to right):
POWER SOCKET, VIDEO2, AUDIO INPUT, HDMI3, YPbPr INPUT
Note: AV1 and component (YPbPr) share the R and L audio inputs.
VIDEO1, AUDIO INPUT,
30 30
1
3
2
1
2
3
4
5
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
R F
AC-INPUT
100-240V~50/60HZ
Y
Pb
Pr
COMPONENT
VIDEO
L R
AV2 IN
VIDEO
L R
HDMI3
AV1 IN
