-6-

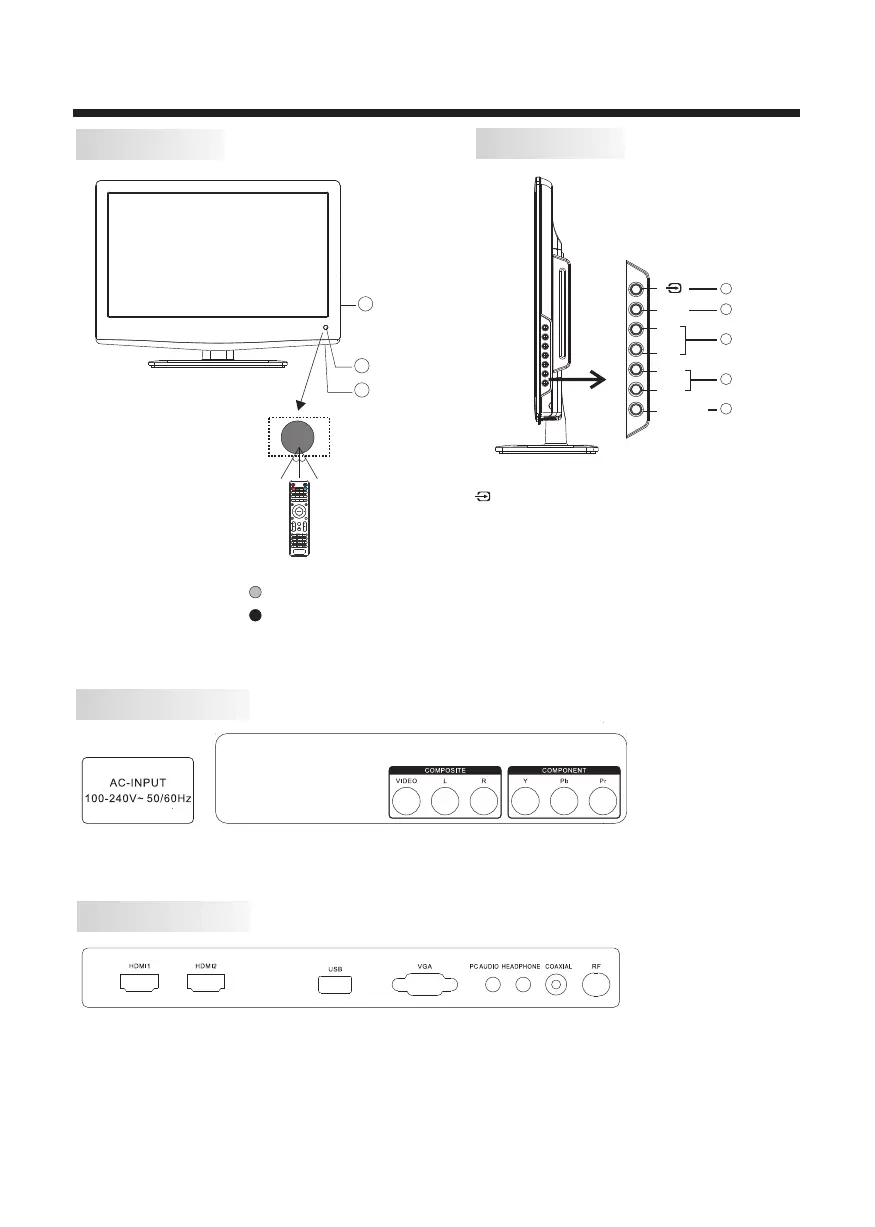

INSTALLATION
Front panel
Side panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
HDMI1
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, .
Note: AV and component (YPbPr) share the R and L audio inputs.
YPbPr INPUT(COMPONENT)
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3:
Side panel keys
1. : Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items; In standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
30 30
YPbPr CC MTS VGA
DTV
STRENGTH
TV AV HDMI
EPGCH LIST FAV
TV
DISPLAY
S.M
P.M
1
3
2
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1
2
3
4
5
