28
190
20
130

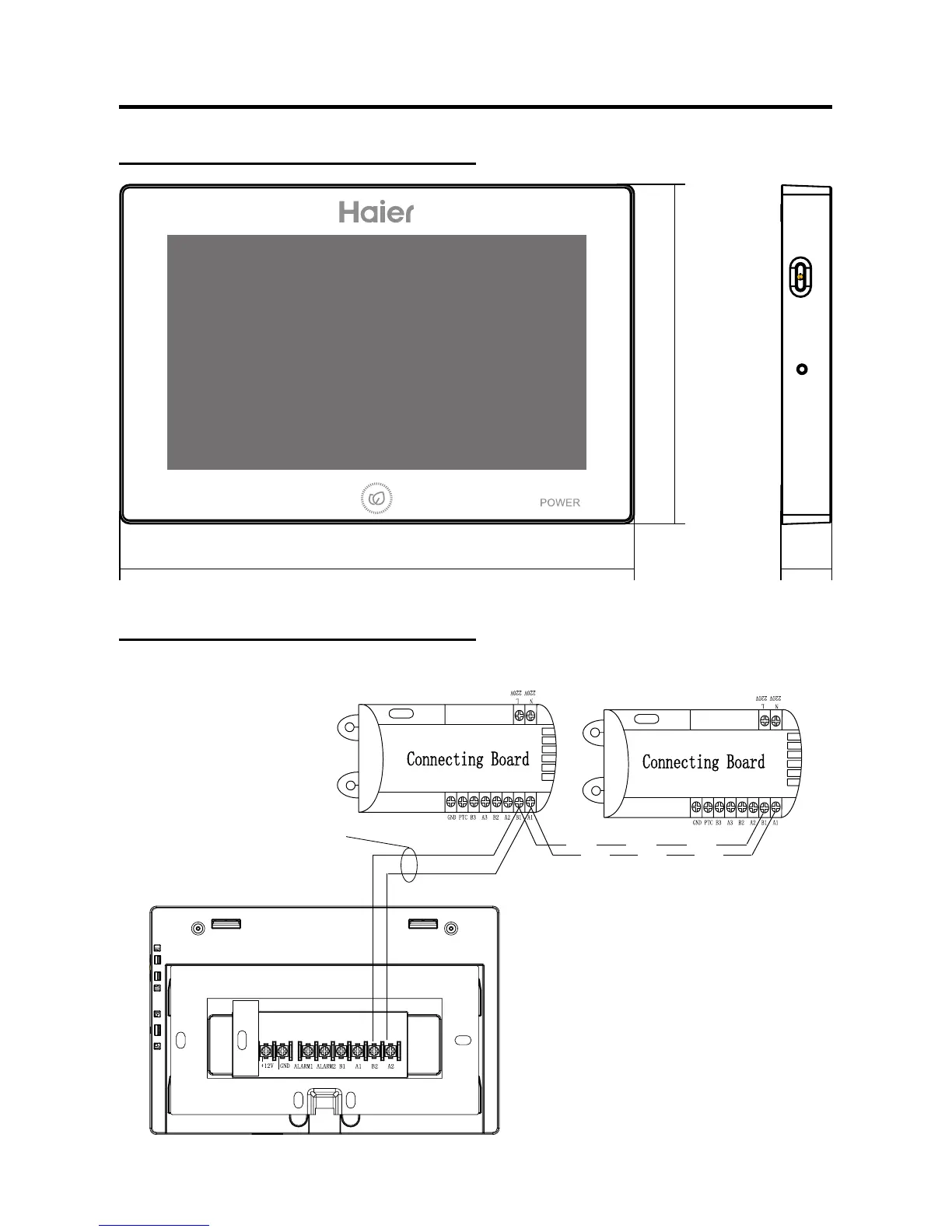

Wiring diagram between central controller and converter board (IGU05).
Note: The communication wires
have polarity
. Meaning that
one wire must go to all of the
A
terminals and the other must go to
the B terminals. Do not cross.
Installation
Installation dimension
Wiring diagram
maintain polarity
16
A
WG Shielded Cable
28
30
Table of Contents
Table of Contents
1
Function Introduction of Central Controller
2
Part Info for Central Controller
3
Page & Key Explanation
5
Address Setting When Using Central Controller
7
Function Operation
10
Installation
29
