7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

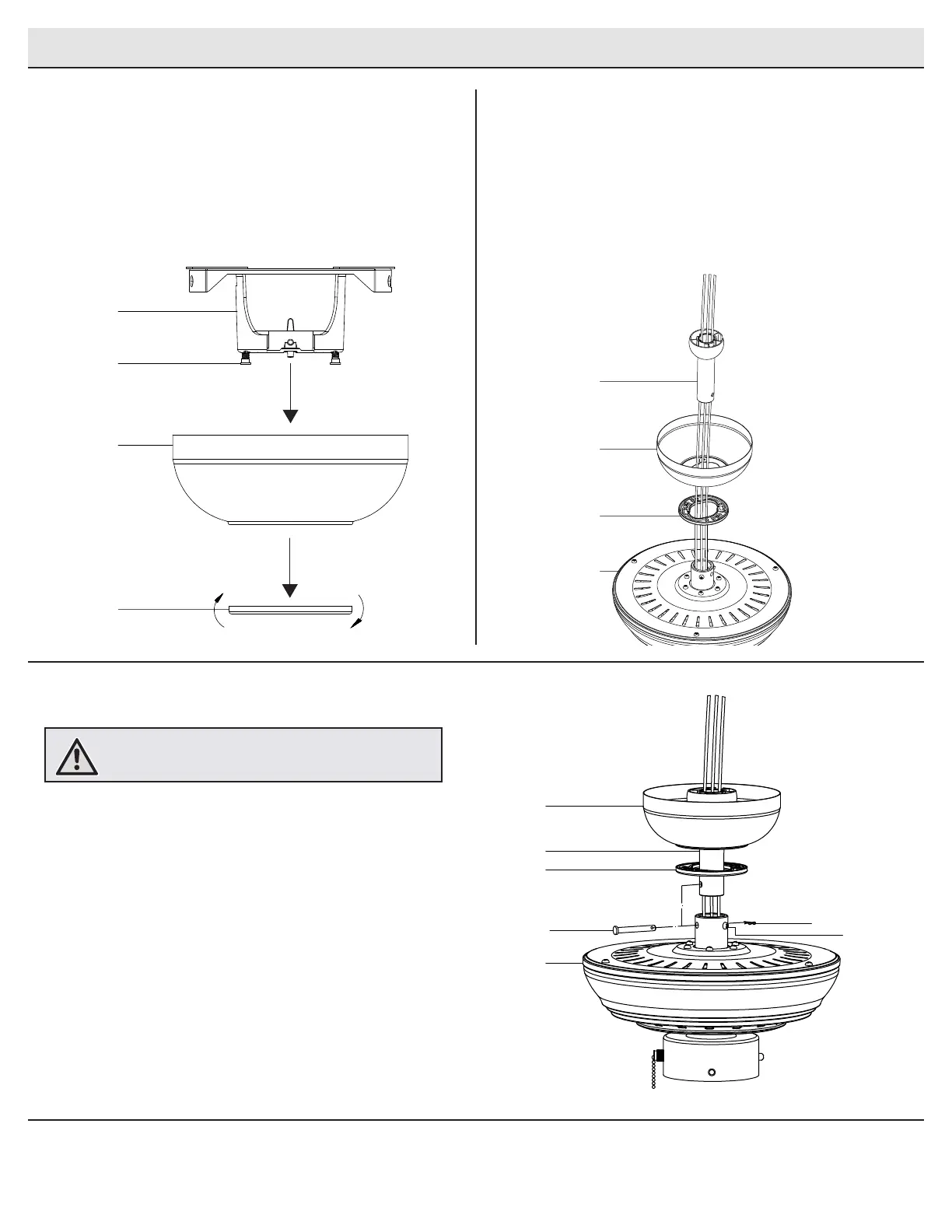

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
□ Route the wires exiting the top of the fan motor assembly (E)
through the center of the canopy bottom cover (C).
□ Make sure the opening of the canopy (B) is on top and insert
the ball/downrod (D) through the canopy (B).
□ Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
21
□ Remove the canopy bottom cover (C) from the canopy (B) by
turning the bottom cover counterclockwise until it unlocks.
□ Loosen the two canopy screws (FF) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from the canopy (B).
Assembling the fan
□ Loosen, but do not remove, the 2 setscrews (ZZ) on the
collar on top of the motor housing (E).
□ Align the holes at the bottom of the downrod (D) with the
holes in the collar on top of the motor housing (E).
□ Carefully insert the hanger pin (CC) through the holes in the
collar and downrod (D). Be careful not to jam the hanger pin
(CC) against the wiring inside the downrod (D).
□ Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□ Re-tighten the 2 setscrews (ZZ) on the collar on top of the
motor housing (E).
3
B
A
FF
C
C
D
E
B
DD
E
ZZ
B
CC
D
C
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
