Hanns.G AG172D User Manual

17" LCD Color Monitor Hanns.G AG172D
5
2. LCD Monitor Description
Assembly Description
The LCD MONITOR will contain a main board, power board, audio board and a key board which house the flat panel
control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
AC-IN
100V-240V
Power board
(
Include: ada
p
ter, inverter
)
Flat Panel and
CCFL backlight
main board
RS232 Connector
For white balance
adjustment in factory
mode
HOST Computer
CCFL Drive.
Video signal, DDC

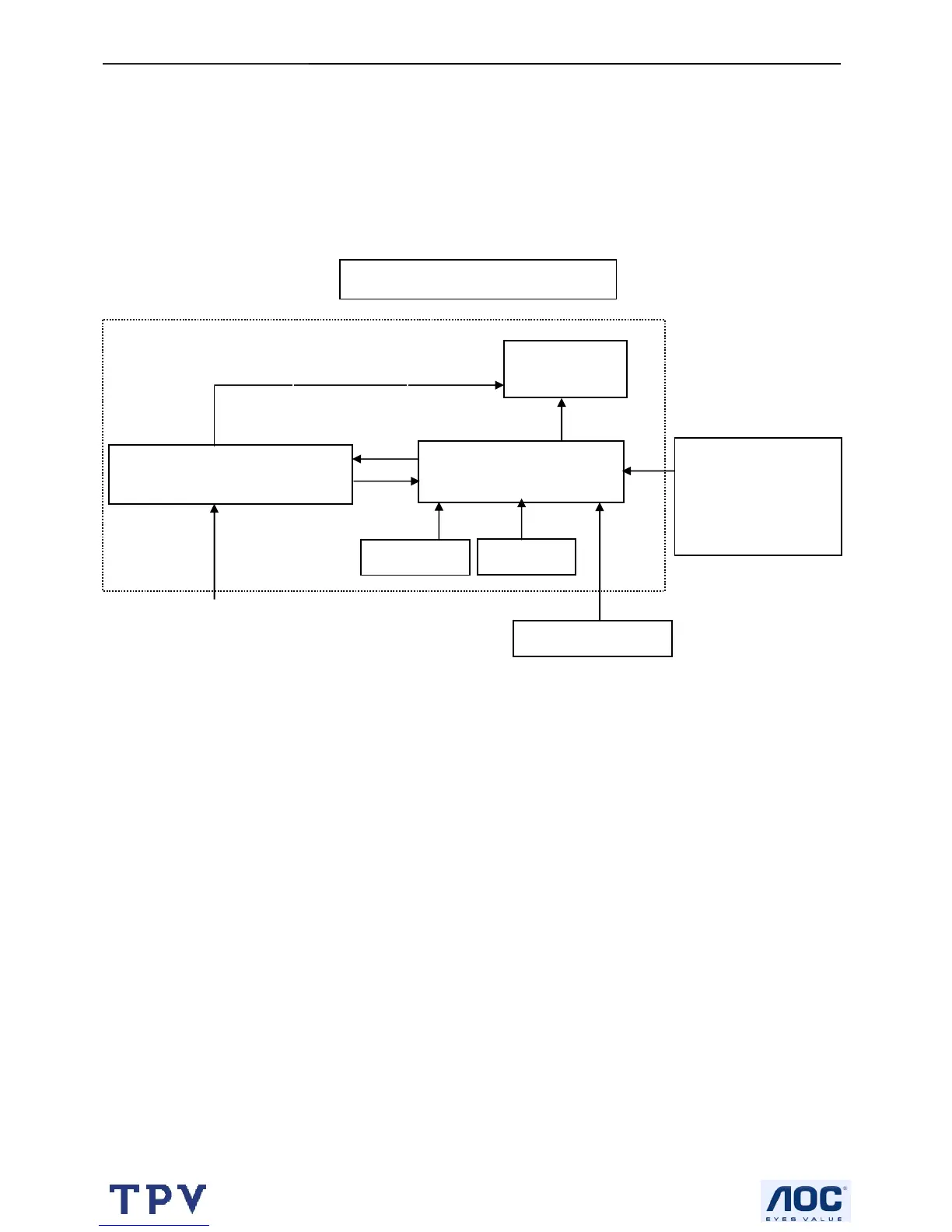

Monitor Block Diagram
Audio board
Key board
