User’s Manual
16

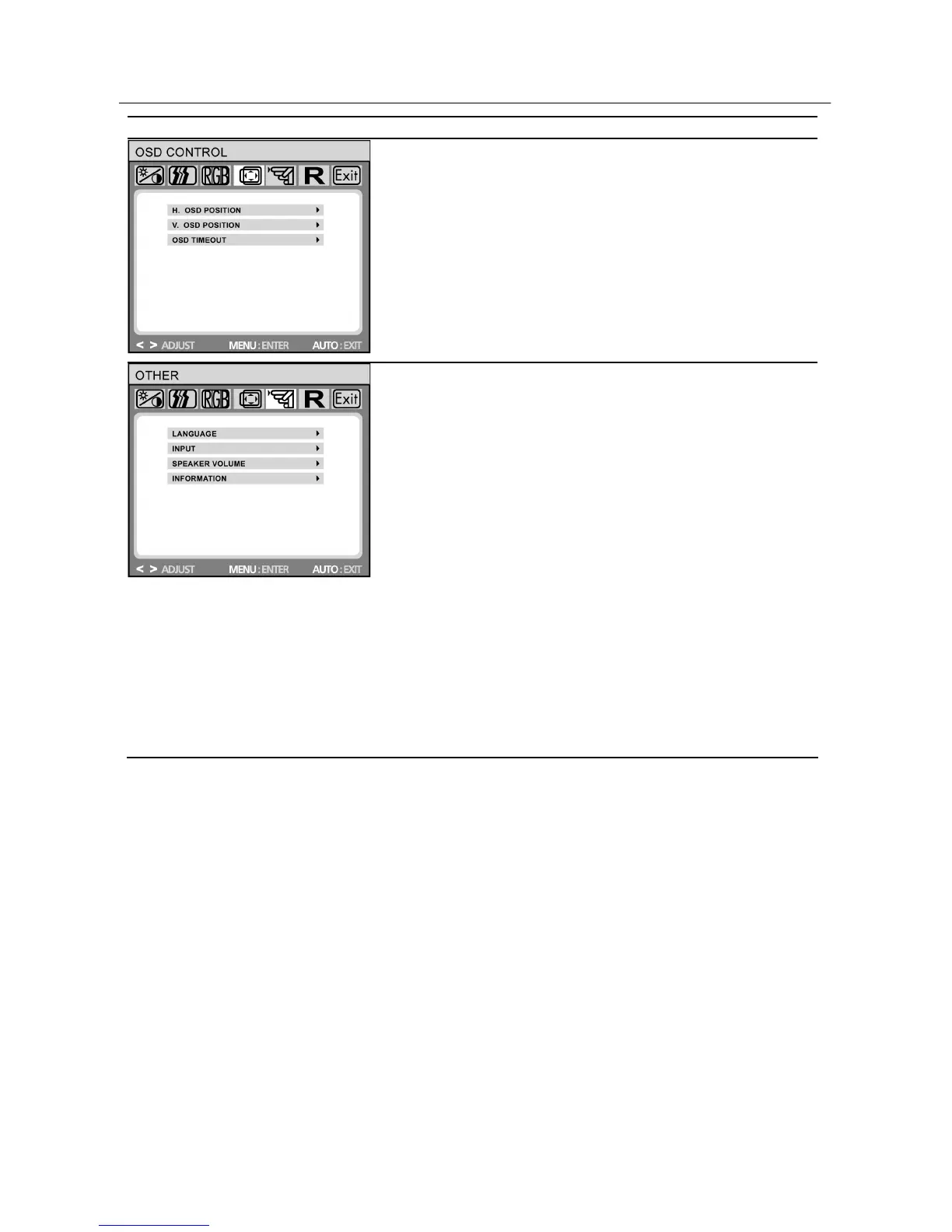

OSD Diagram OSD Description
OSD Control:
H. OSD Position: Controls the OSD
menu’s horizontal position.
V. OSD Position: Controls the OSD
menu’s vertical position.
OSD Timeout: Determines how long (in
seconds) the OSD menu waits before
closing automatically after no action has
been performed.
Other:
Language: English. French. German.
Italian. Spanish. Japanese. Portuguese.
Nederlands. Korea. Simplify Chinese.
Traditional Chinese.
Input: Controls the selection of the input
signal. The monitor allows you to make
the following connections: analog graphics
card via the 15-pin mini D-Sub interface,
digital graphics card via the 24-pin DVI-D
interface.
Speaker Volume: Adjusts the monitor
loudspeaker output volume.
Information: There is an optional OSD
window (on/off) that displays the newly
adjusted screen resolution settings.
PLUG AND PLAY
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC
STANDARD. It allows the monitor to inform the host system of its identity and, depending
on the level of DDC used, communicate additional information about its display capabilities.
The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request
EDID information over the DDC2B channel.
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO
INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE
MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Green monitor standards as set by the Video Electronics Standards
Association (VESA) and/or the United States Environmental Protection Agency (EPA) and
The Swedish Confederation Employees (NUTEK). This feature is designed to conserve
To Next Page
