Hardi HC5500 Installation Manual

5
020-056-UK
HARDI HC5500 w/ JobCom
Required Parts
To add BoomPilot to a HARDI HC5500 w/JobCom, the following part numbers are
required:
Item Part Number Description Quantity
A 90-xxxxx* Matrix Guidance Controller Kit ........................................................ 1
B 45-05826 Power/CAN/Data Cable w/COBO connector ..................................1
C 78-05096 SmartCable HARDI HC5500 ..........................................................1
D 45-08101 CAN Termination male 4p WP ........................................................1
*Part number is dependent on kit contents

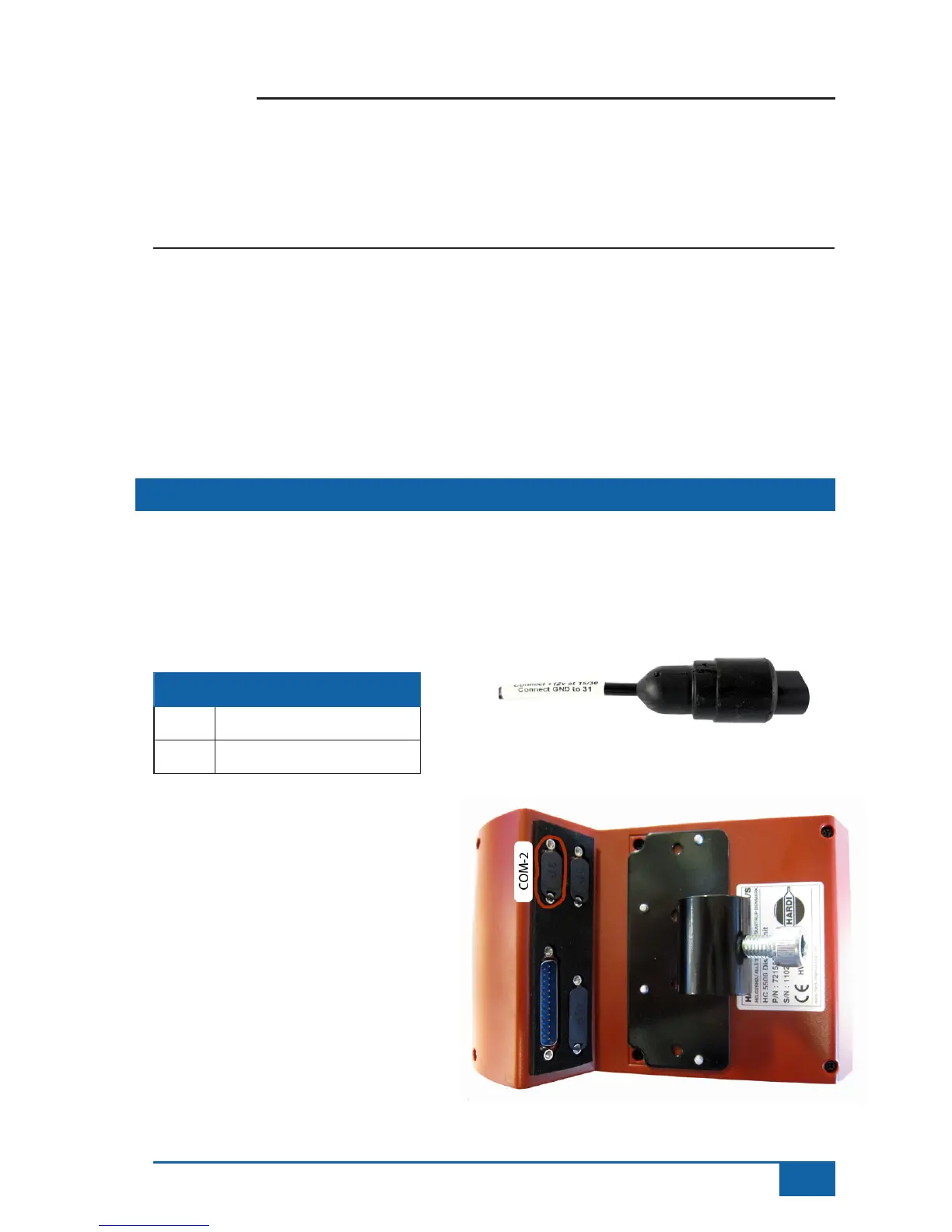

INSTALLING THE HARDI HC5500 SMARTCABLE
Connect the Smartcable (C) and CANBUS termination (D) as shown on the system
diagram.
Connecting to Power:
Pos. Description
1 +12V (15/30)
2 Ground (31)
Connect the
Smartcable to COM-2:

Hardi HC5500 Specifications

General

Brand	Hardi
Model	HC5500
Category	Controller
Language	English
