Harman AVR 151S User Manual

18
AVR
Making Connections

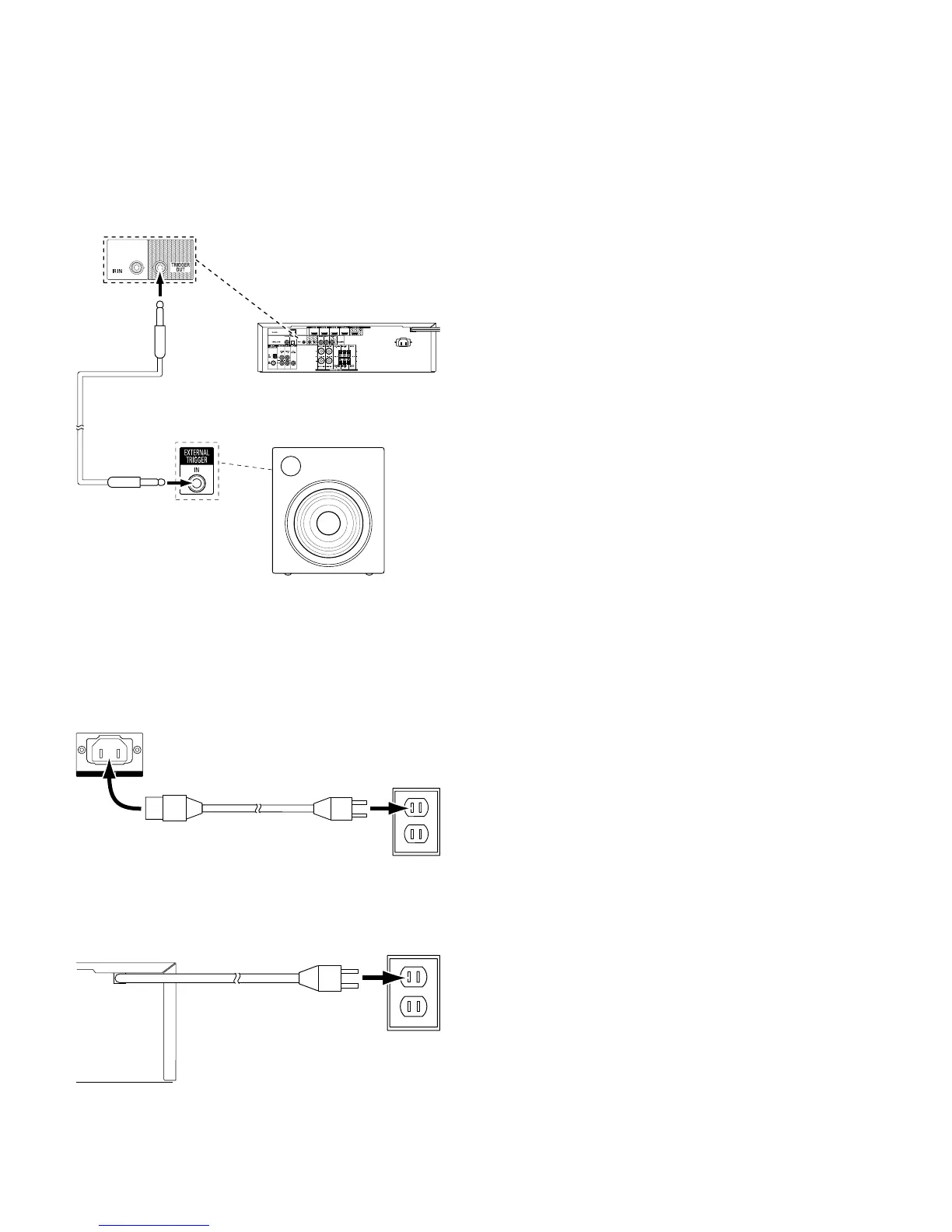

Connect the Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s Trigger Out connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
AVR
Device with
Trigger In Connector
Mono 1/8-inch (3.5mm)
Mini-Plug Interconnect
(not supplied)
Connect to AC Power
AVR 151S:
Connect the supplied AC power cord to the AVR’s AC Input connector and then to a
working, non-switched AC power outlet.
AC Power
Outlet
AVR
AC Input
Connector
Power Cord (supplied)
AVR 1510S:
Connect the AVR’s power cord to a working, non-switched AC power outlet.
AVR
Power Cord
AC Power
Outlet

Harman AVR 151S Specifications

General

Channels	5.1
Network Connectivity	No
Weight	4.6 kg
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio (IHF-A)	100 dB
Tuner Section Frequency Range	87.5MHz – 108.0MHz
Video Section Input Level/Impedance	1Vp-p/75 ohms
Video Frequency Response	10Hz – 8MHz (–3dB)
Dimensions (H x W x D)	121mm x 440mm x 300mm
Inputs HDMI	4
Inputs Analog Audio	2
Inputs Digital Audio (Coax/Optical)	1 Coaxial, 1 Optical
Outputs HDMI	1
Outputs Headphone	1
Outputs Subwoofer Pre-out	1
Digital Audio Inputs	1 Coaxial, 1 Optical
Dimensions (W x H x D)	440mm x 121mm x 300mm
Dolby Technologies	Dolby Pro Logic II
DTS Technologies	DTS-HD Master Audio
USB Ports	1
Frequency Response (@ 1W)	10Hz – 130kHz (+0dB/–3dB)
Power Requirement	AC 230V, 50Hz
Power Consumption	300W maximum
Total Harmonic Distortion	0.07%
Signal-to-Noise Ratio	100 dB
Tuner	FM
Video Inputs/Outputs	1 Output
Audio Inputs/Outputs	2 in
HDMI	3D, Audio Return Channel (ARC)
