APPLICA
TION 3 - PLA
CES OF
W
ORSHIP

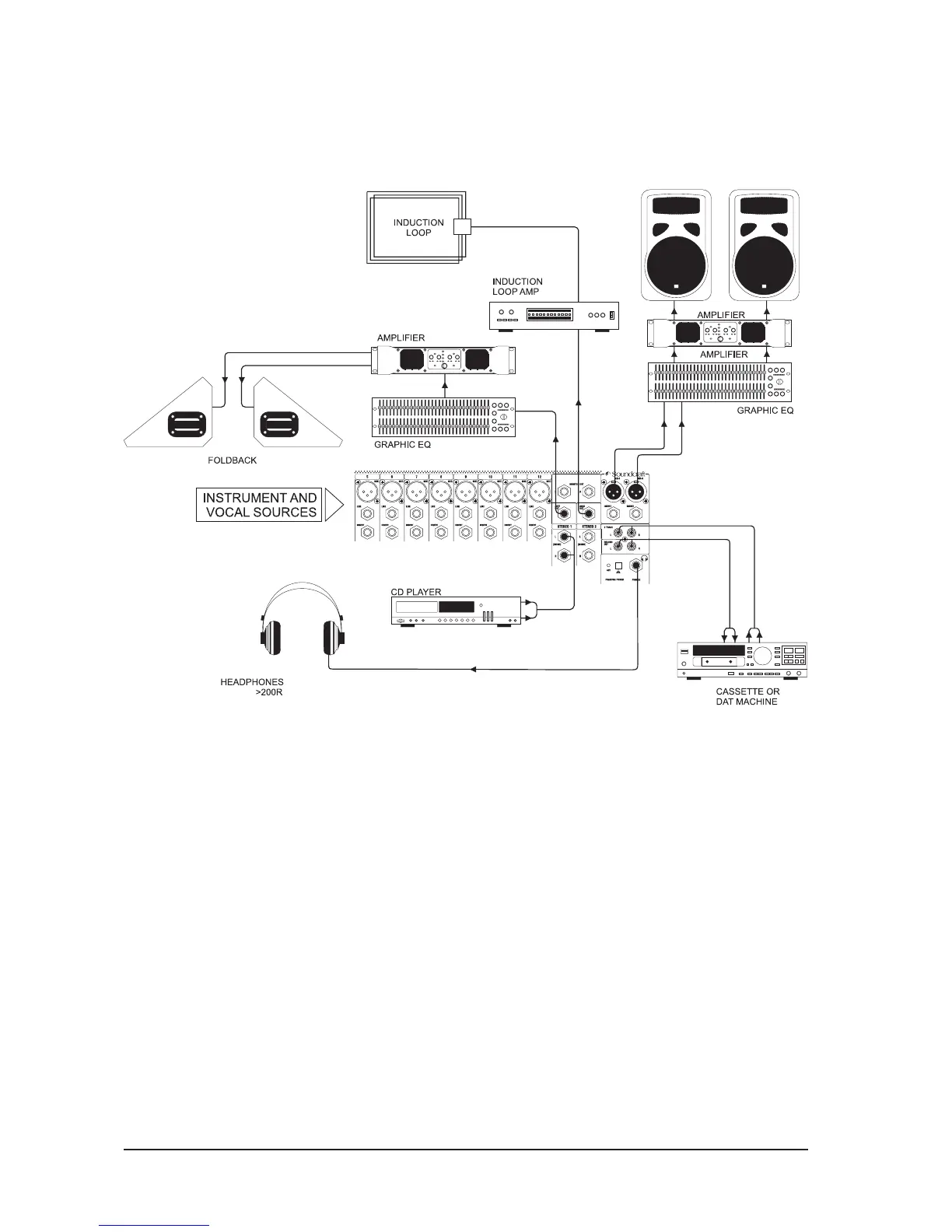

This configuration uses the Aux 2 output to drive an induction loop for the hard of hearing. Aux 1 output is used to generate
foldback
monitoring for the speaker/singer
. The main outputs are used to drive the main speaker system. The record and playback connecti
ons
are used to pass audio to and from a DA
T machine or CDR.
