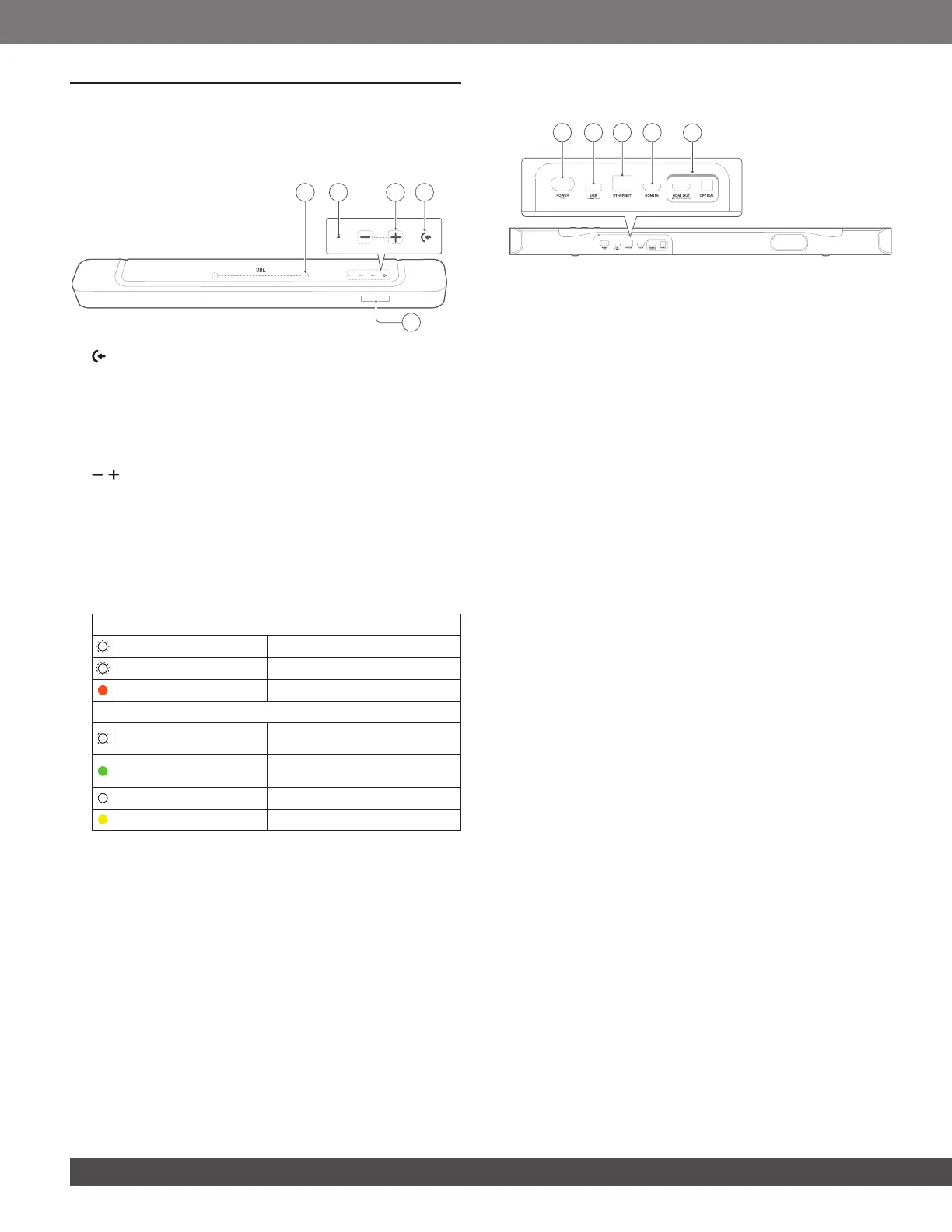

3. PRODUCT OVERVIEW
3.1 Soundbar
3.1.1 Controls
5
34 12
1) (Source)
• Switch on
• Select a sound source: TV (default, for audio input
from TV connection where the HDMI OUT (TV ARC/
TV eARC) connector is prioritized over the OPTICAL
connector), Bluetooth or HDMI IN
2) / (Volume)
• Switch on
• Decrease or increase the volume
• Press and hold to decrease or increase the volume
continuously
• Press the two buttons together to mute or unmute
3) Status indicator
System:
Regular flashing (white) System startup
Fast flashing (white) Software updating in progress
Solid (amber) Restoring factory settings
Network connection:
Slow flashing (white)
Entering Wi-Fi setup mode, or
network disconnected
Solid (green)
Soundbar discovered by the JBL
One app
Solid (white) Network connected
Solid (yellow) Weak Wi-Fi connection
4) Microphone
• For sound calibration
5) Status display
3.1.2 Rear connectors
1 2 3 4
5
1) POWER
• Connect to power (with the supplied power cord)
2) USB
• USB connector for software update
• Connect to a USB storage device for MP3 le playback
(for US version only)
3) ETHERNET
• Connect to your home network through an Ethernet
cable
4) HDMI IN
• Connect to the HDMI output on your digital device
5) TV connectors
HDMI OUT (TV ARC/ TV eARC)
• Connect to the HDMI ARC / HDMI eARC input on
your TV
OPTICAL
• Connect to the optical output on your TV or digital device
