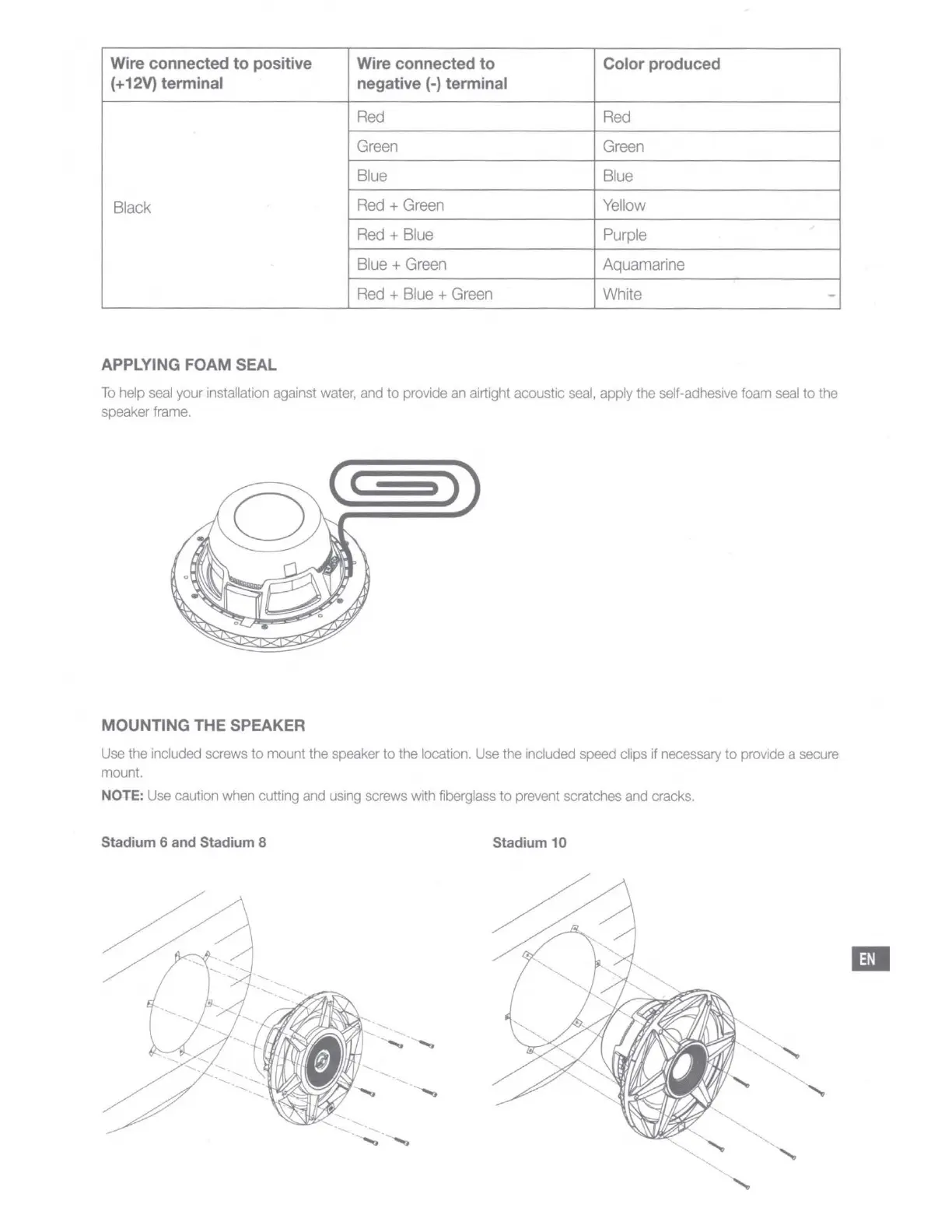

Wire connected
to
positive Wire connected
to
Color produced
(+12V) terminal negative (-) terminal
Red
Red
Green
Green
Blue Blue
Black
Red+
Green
Yellow
Red+
Blue
Purple
Blue+
Green
Aquamarine
Red
+
Blue
+
Green
White
APPLYING FOAM SEAL
To
help
seal
your installation
against
water,
and
to
provide
an
airtight acoustic
seal,
apply the
self-adhesive
foam
seal
to the
speaker
frame.
MOUNTING
THE
SPEAKER
Use
the
included
screws
to mount the
speaker
to
the
location.
Use
the
included
speed
clips
if
necessary
to
provide
a
secure
mount.
NOTE
:
Use
caution
when
cutting
and
using
screws
with
fiberglass
to
prevent
scratches
and
cracks.
Stadium 6 and Stadium 8 Stadium 10
~ -
........
