Harman Oakwood Installation & Operating Manual

3-90-08327R26_03/14

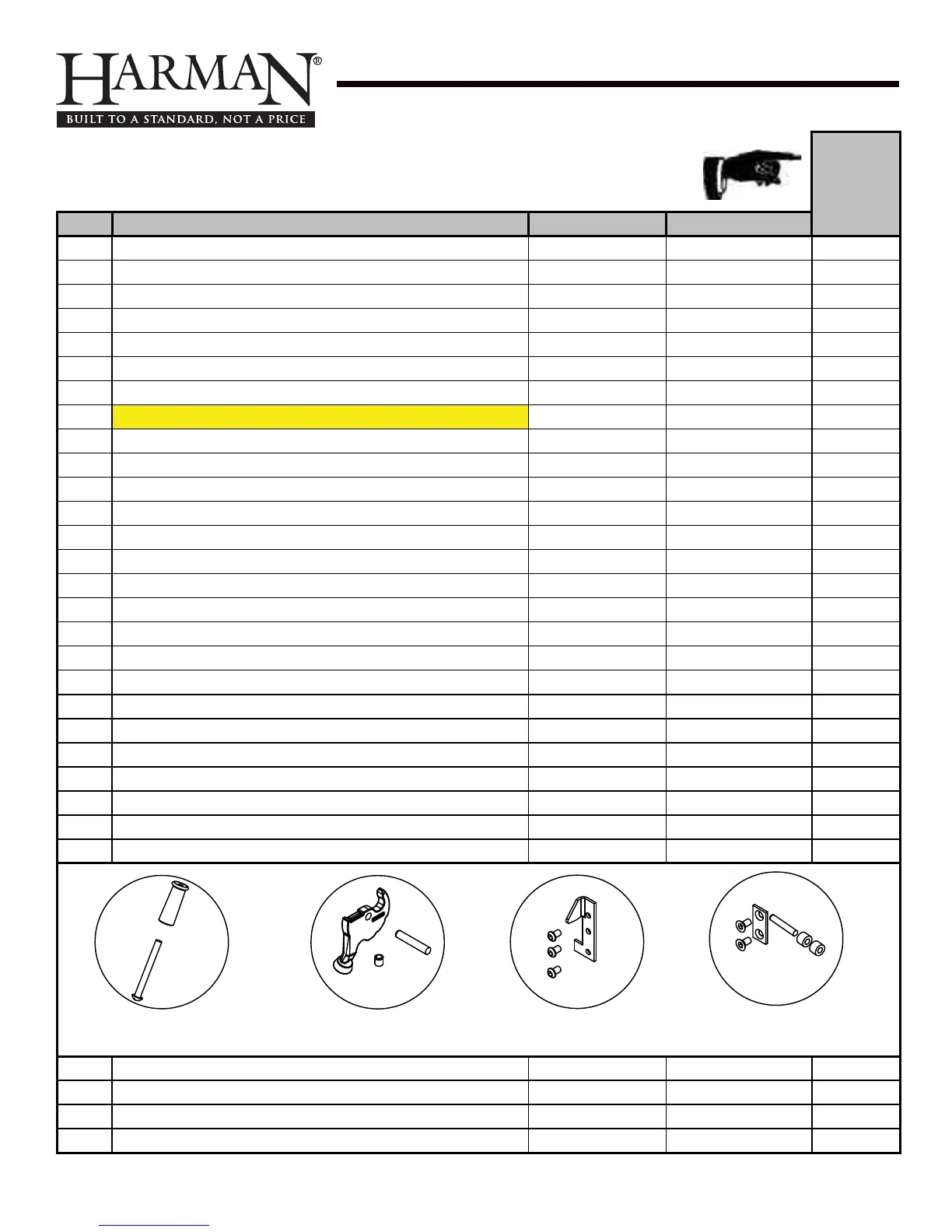

Service Parts
Oakwood
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 UL Label Outer Shield 2-00-249162S
2 UL Label Inner Shield 2-00-249161S
3 Rear Housing Cover Assembly w/Gasket 1-10-249116A
Gasket 10 Ft 1-00-11862 Y
4 Flue Collar Cover with Gasket 1-10-249109
5 Rear Housing 4-00-249110S
Gasket, 3/8" RD LPSA 10 Ft 1-00-00999 Y
6 Damper Elbow Painted 3-50-00500S Y
7 Cook Grill Assembly Optional 1-00-08121
8 Flue Collar 4-00-249108D
9 Top Hinge Plate Qty 2 req 2-00-249147S
10 Top 4-00-249105P
Gasket 30 Ft 1-00-00888
Y
11 Top Load Door
3-00-249115P
Gasket 5 Ft 1-00-37525
Y
12 Top Load Handle 2-00-249148
Top Handle Retainer
2-00-249190
13 Left Side Panel 4-00-249103D
14 Inner Front 4-00-249111S
15 Andiron Qty 2 req
3-00-249101P Y
16 Front Load Door 4-00-249112P
Y
Door Glass
3-40-21130 Y
Gasket - Glass 15 Ft 1-00-2312
Y
Gasket - Door 30 Ft 1-00-00888
Y
Glass Clips & Hardware Set of 4 1-00-249140
Y
Hinge Plate 3-00-249136
Handle Assembly
2 Sets 1-00-00249
Y
Handle and Plunger Kit
1-00-73765
Y
Retainer Plate W/Hardware
1-00-249138
Y
Inner Front Latch Kit
1-00-249143
Y
Additional service part numbers appear on following page.
Handle Assembly
Handle & Plunger Kit
Retainer Plate W/
Hardware
Inner Front Plate
Latch Kit
