P43 Pellet Stove
Pellet nes may accumulate in the feeder body over
a period of time; therefore, a yearly inspection and
cleaning of this area must be performed.
To clean out nes:
1. Remove the rear cover panels.
2. Remove wing nut and feeder cover on the
side of the feeder.
3. Use a vacuum cleaner to remove all nes.
4. Reinstall feed cover, wing nut, and rear
cover panels.
5/16" Hex Head
Screws (2 on
each side)
5/16" Hex Head
Screws (2 on
each side)
The low draft sensor which is a vacuum differential switch, monitors the negative
pressure (draft) in the rebox through a port on the rear of the feeder. Poor draft will
result in an interruption of power to the feeder and the igniter. Poor draft can be caused
by blockage in the exhaust, excessive build-up on the combustion blower fan blades, a
failed combustion blower, or a door or other opening to the rebox not sealed properly.
The hopper lid position switch, located in the right rear corner of the hopper opening, will
also interrupt power to the feeder and igniter if the hopper lid is not closed properly. The
circuit board is monitoring the position of these switches. During a feed cycle, if either
of these switches were to open, the feed motor light on the control will stay illuminated
with the power being interrupted by the switch. If the switch opens when the cycle is at
rest, the power lights for the feed motor or igniter will not illuminate. Be sure all doors,
including the hopper lid, are securely closed when operating the appliance.

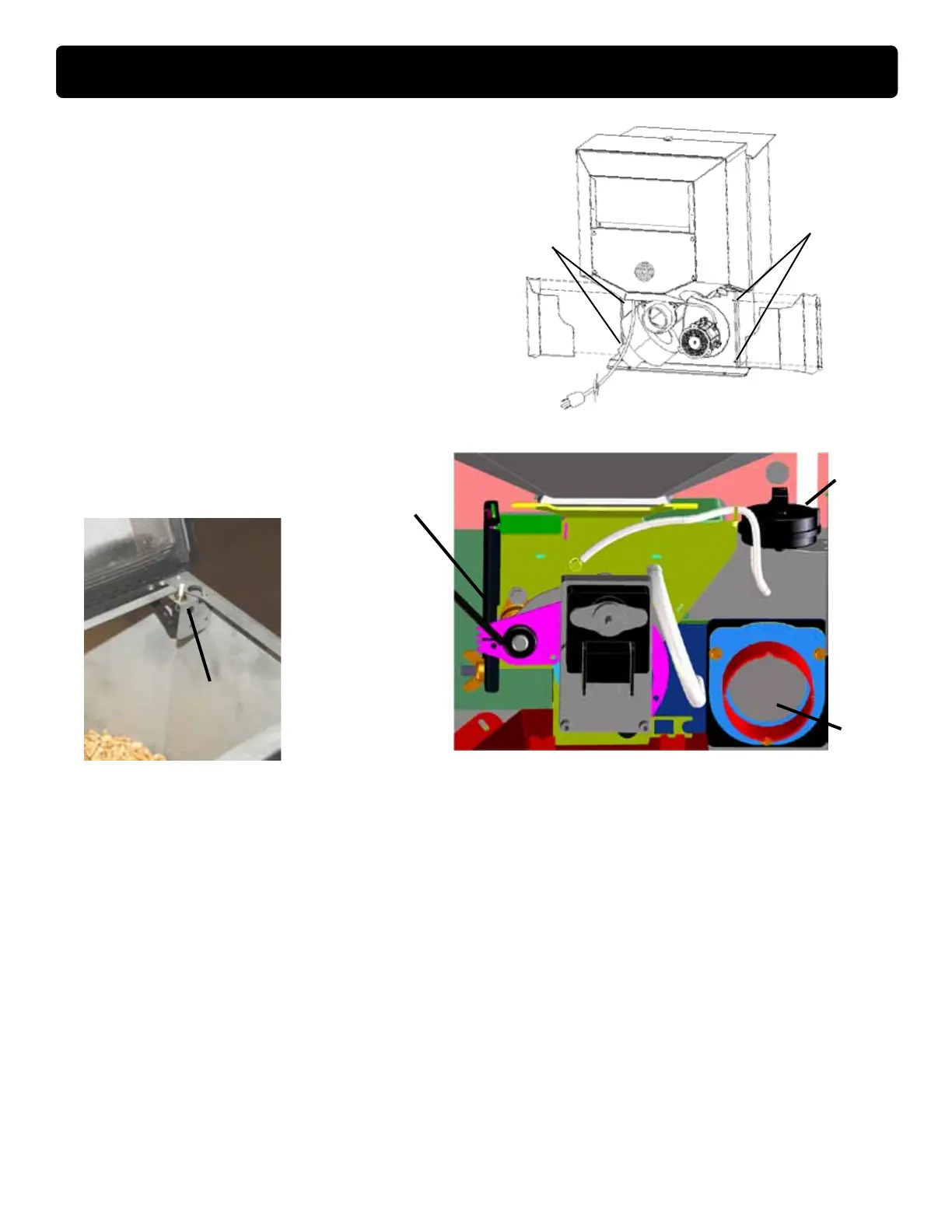

Pellet Fines may
build up in this area
Low
Draft
Sensor
Air
Intake
Flapper
