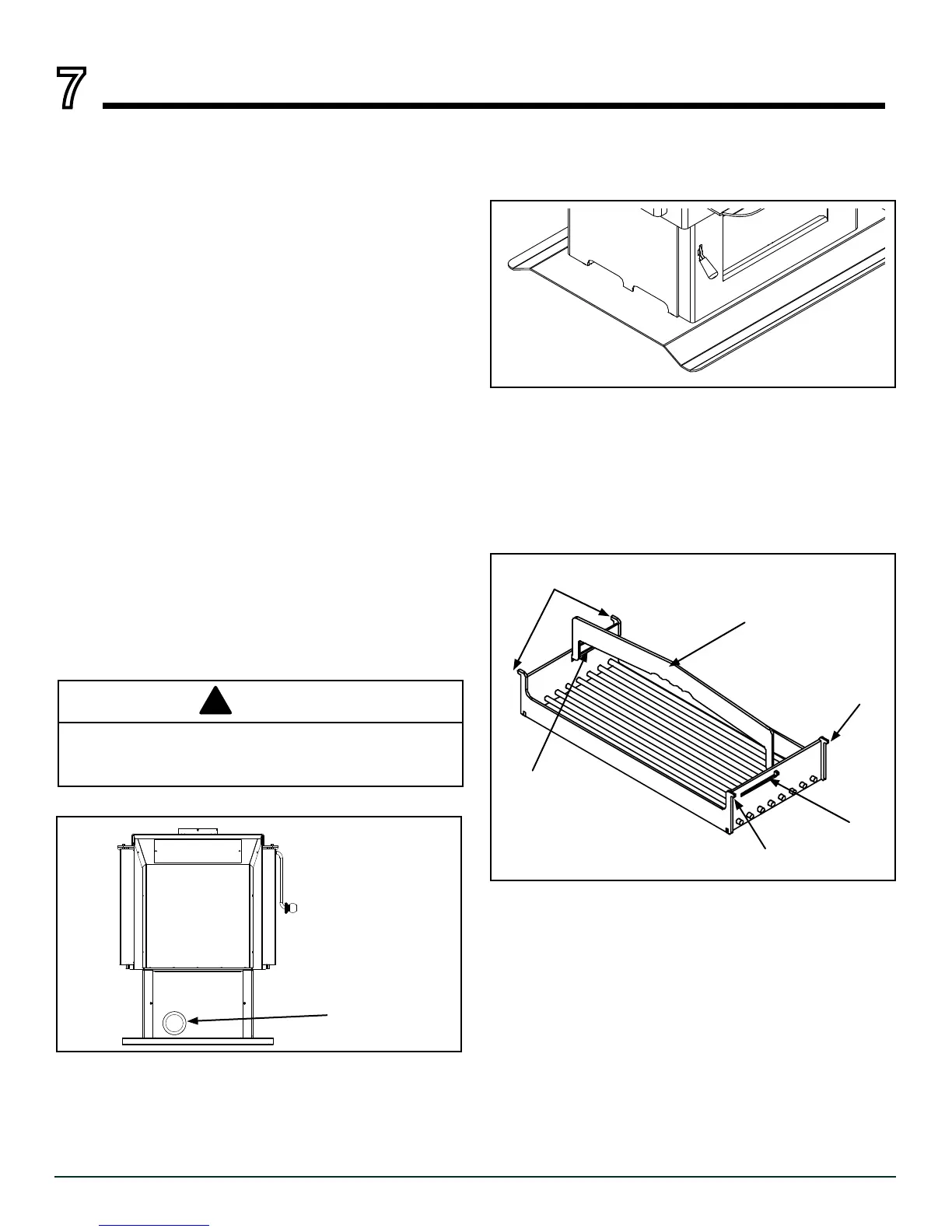

A. Outside Air Attachment
Parts and Supplies Needed: Kit #1-10-856082, 1 piece of
metalexiblepipe,4"Xneededlength.1RodentScreen,
andaluminumtape.Plus,atrimringfornishingaroundthe
pipe on the inside wall.
1. Determine an appropriate hole location, through the
wall. Be sure there are no studs or other supporting
members. Also ensure there are no electrical wires or
plumbing contained within the wall.
2. Make the hole through the exterior wall using a hole
saw or reciprocating saw. You'll want the hole to be just
slightlylargerthanthemetalexpipe.
3. Attach the rodent screen to one end of the ex pipe,
and insert it through the wall until the back of the screen
cover is against the outside surface.
4. Hold the ex pipe in place to make an accurate
determination of the length needed. Cut the ex pipe
to length.
5. Slidethetrimringontotheexfortheinsidewallportion.
6. Slide the other end of the metal intake ex pipe into
the stub on the rear of the stove and secure it with
aluminum tape. This air intake will supply outside air for
the secondary combustion.
7. Securethetrimringinplacefornishingtheinsidewall
area.
8. Seal around the rodent screen on the exterior wall,
using silicone caulking.
B. Leveling the Appliance
Use metal shim material under the pedestal base where
needed for leveling.
C. Optional Cooking Grill
The optional cooking grill #1-00-08121 installs easily in the
top load opening of the stove.
The grill handle (B) ts in the slots (C) on each side. To
remove the handle, lower and turn.
When installed, the grill hangs in the opening by the hooks
(A).
When grilling, you'll want to keep the re size small and
the bypass damper in the open position. Depending on the
grilling being done, you may get grease dripping on the
glass causing it to become dirty and obstructed. When you
burnyournexthotre,theglasswilllikelycleanitself.
Keep top load door closed except when loading or
unloading grill.
7
Appliance Set-Up
NEVER DRAW OUTSIDE COMBUSTION AIR FROM:
• WALL, FLOOR OR CEILING CAVITY.
• ENCLOSED SPACE SUCH AS AN ATTIC OR GARAGE
CAUTION
!
A
A
A
B
C
C
Outside Air
Attachment
