Hayward Aqua Solar User Manual

4
INSTALLATION
Mounting
The Aqua Solar is designed for outdoor use. Mount the enclosure vertically with the
knockouts facing downward. For safety, the Aqua Solar must be a minimum of 5 feet
(horizontally) from the pool or spa.
Power input
Turn off power at circuit breaker before wiring. Follow NEC and all local electrical
codes. Wire to either 120VAC or 240VAC per the diagram below. If the Aqua Solar
is being powered from the same circuit as one of the pumps, wire to the relay first and
then jumper over the Aqua Solar terminal block. Do NOT use the Aqua Solar termi-
nal block as a junction for pump power, the terminal block is not rated for high amps.
Be sure to connect the earth ground to the green terminal.
Output wiring to solar diverter valve
Most installations use a solar valve, which diverts water through the collector panels
when solar heat is available. For Hayward, Jandy, and Compool valve actuators (with
wire end connectors), two 3-pin connectors are supplied. Plug the actuator into one
of the Aqua Solar's two 3-pin connectors (see diagram above for location of connec-
tors). If the valve operates opposite to the way it is supposed to, disconnect and plug
into the other connector.
7

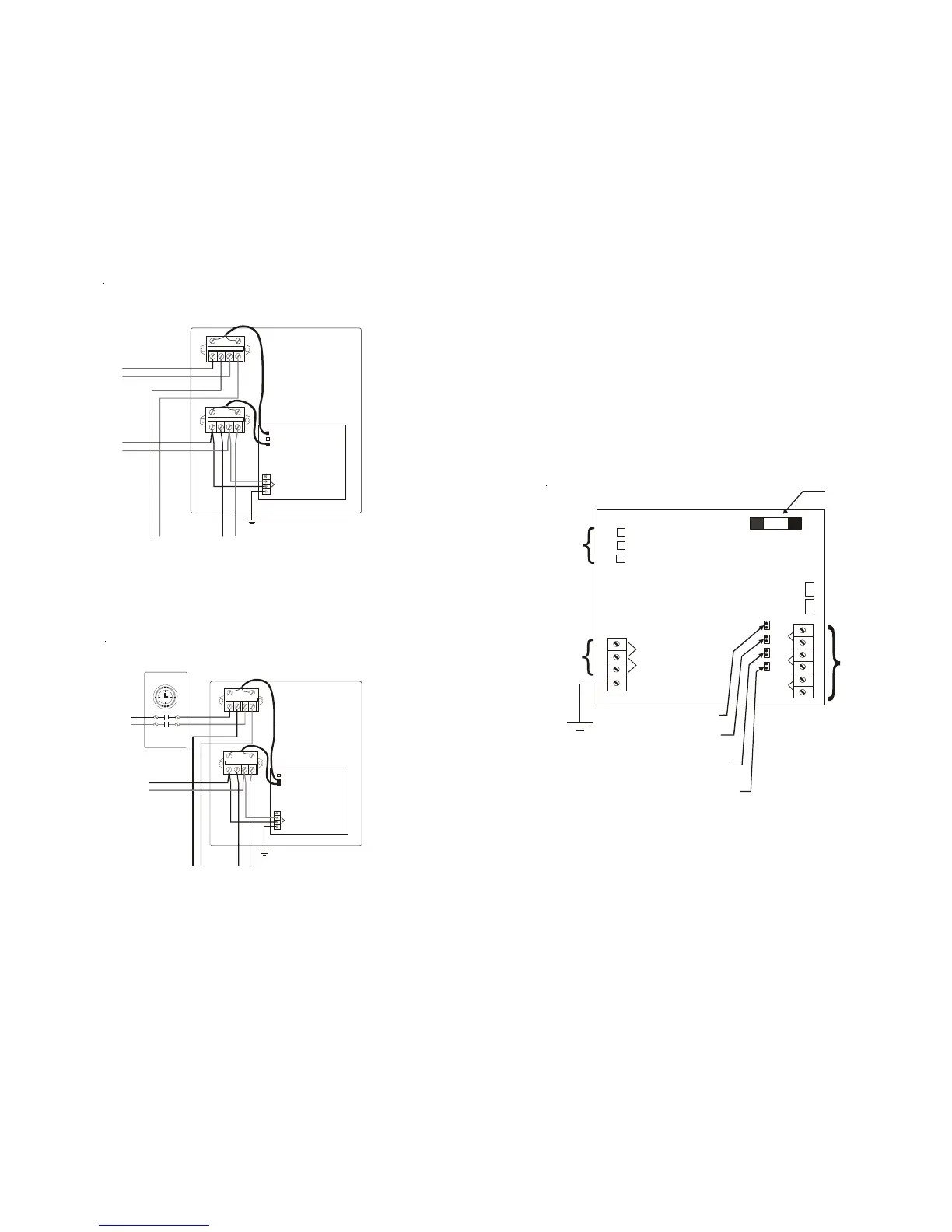

Booster Pump
Pool Sweep
Filter Pump
240
VAC
240
VAC
Filter
Pump
Solar
Booster
Pump
Aqua Solar
(AQ-SOL-LV-TC)
AQ-SOL-LV-TC
with filter pump & booster pump relays
NOTES:
1) Do not use Aqua Solar terminal block as a junction for pump wiring.
2) Most codes require that each pump be on a separate circuit.
Ground
240 VAC
120VAC
Booster Pump
Pool Sweep
Rev
Valve
Output
Relay
Control
Outputs
Input
Power
Tempera ture
Sensor
Inputs
Fuse (2A, Slo-Blo)
Aux
Filter Pump
Fwd
Pool
Solar
240 VAC
Ground
}
Cooling
Recirculate/
Freeze Protection
Celsius/
Fahrenheit
Solar
Override
(heater interlock for -SP model)
Booster Pump
Pool Sweep
Filter Pump
240
VAC
Filter
Pump
Sweep
Pump
Aqua Solar
(AQ-SOL-LV-TC)
AQ-SOL-LV-TC
with filter pump & pool sweep rela
y
s
NOTES:
1) Do not use Aqua Solar terminal block as a junction for pump wiring.
2) Most codes require that each pump be on a separate circuit.
3) Aqua Solar will ensure sweep pump runs only when filter pump is running.
4) Sweep pump will turn off for approximately 5 minutes when solar turns on.
Ground
240 VAC
Pool Sweep
Timer
120/240
VAC
