Bonding
A lug used for bonding is attached to the bottom of the Aqua Trol enclosure. Connect to the
pool bonding system using minimum 8AWG copper wire if required by code.
Pump Output
The Aqua Trol’s filter pump output is rated at 120 VAC, 15 A max. Check the electrical rating
marked on the pump motor. Connecting a pump with a higher amperage rating may result
in permanent damage to the Aqua Trol. The 120 VAC standard or twist lock pump receptacle
is located outside, on the bottom of the enclosure.
Electrolytic Cell and Flow Switch
The cell and flow switch plug into connectors on the Aqua Trol electronics unit. Note that

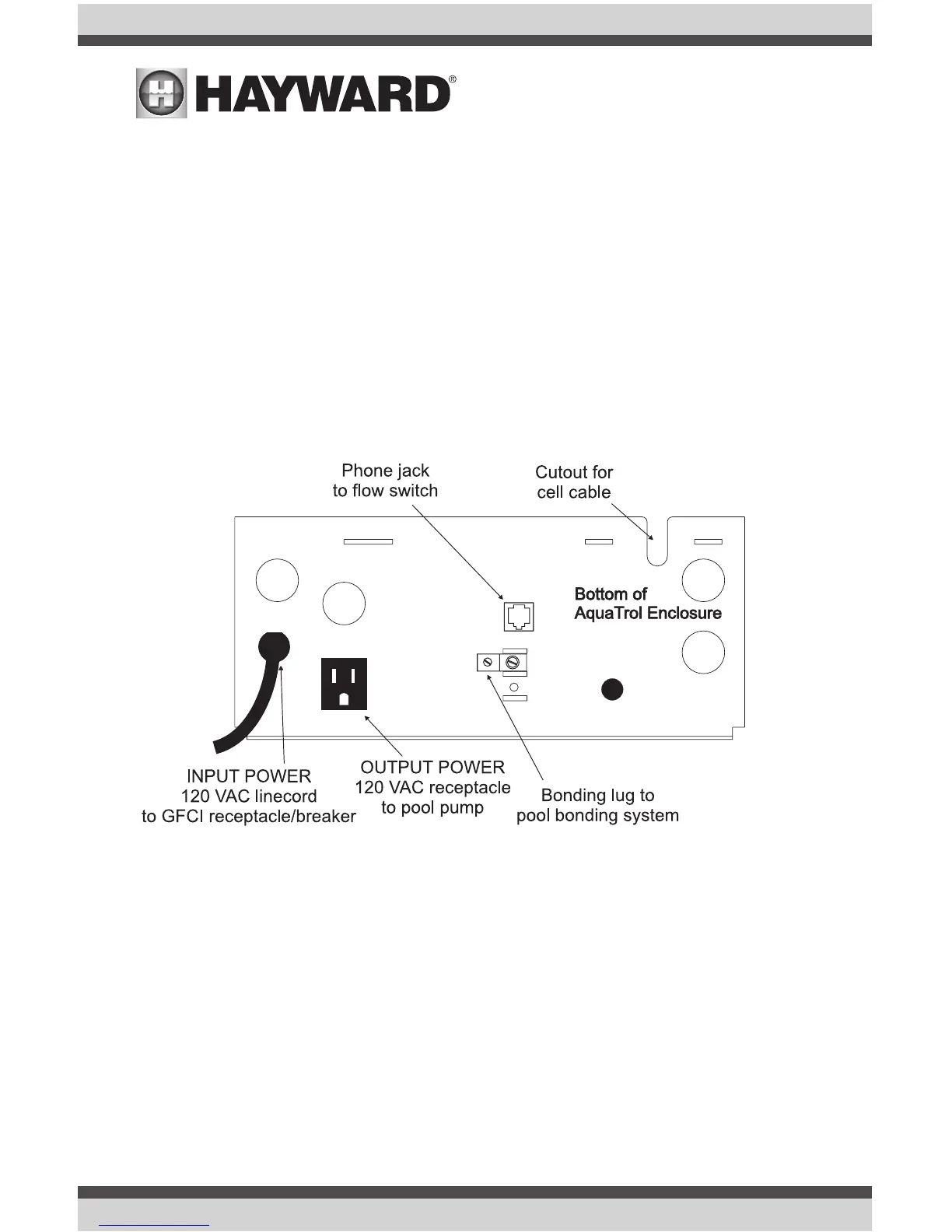

return jet units (-RJ option) will NOT have a flow switch. See diagram below.
