Installation
Installation must be performed in accordance with Local and NEC codes.
Preparing Pool/Spa Water
Refer to page 3 for recommended chemical levels. The pool's chemistry must be balanced BEFORE
activating the AquaRite. NOTE: If the pool does not have new water, add 1 quart (1 liter) of metal
remover and 1 quart (1 liter) of non-copper based algaecide to the pool, per manufacturer's instruc-
tions. This ensures a quick, troublefree transfer to the AquaRite system.
Mounting the AquaRite Control
The AquaRite is contained in a raintight enclosure that is suitable for outdoor mounting. The control
must be mounted a minimum of 5 ft. (2 meters) horizontal distance (or more, if local codes require)
from the pool/spa.
The control is designed to mount vertically on a flat surface with the knockouts facing downward.
Because the enclosure also acts as a heat sink (disperses heat from inside the box), it is important not
to block the four sides of the control. Do not mount AquaRite inside a panel or tight enclosed area.

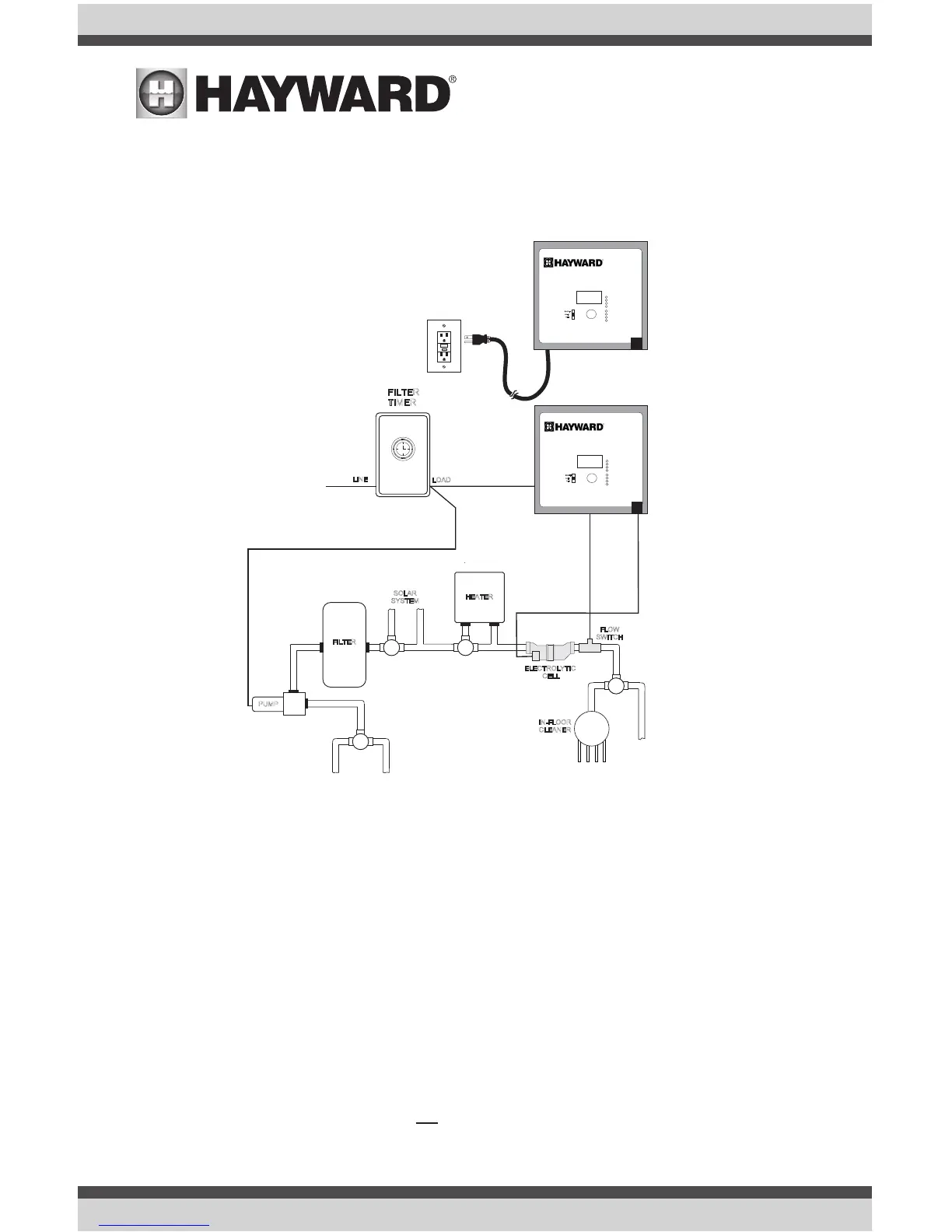

FLOW
SWITCH
LINE
LOAD
IN-FLOOR
CLEANER
ELECTROLYTIC
CELL
HEATER
SOLAR
SYSTEM
FROM
POOL
120/240 VAC
POWER
TO
POOL
FROM
SPA
TO
SPA
FILTER
PUMP
FILTER
TIMER
LDLINE
CONTROLS INC.
G
BOOST
AUTO
OFF
AQUA
RITE
BOOST
AUTO
OFF
GFCI
OUTLET
LDLINE
CONTROLS INC.
G
BOOST
AUTO
OFF
AQUA
RITE
BOOST
AUTO
OFF
AQR15-120
AQR15-LL
AQR15
AQR9
AQR3
11
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
