Hayward C3020 User Manual

Page 9 of 12 SWIMCLEAR CARTRIDGE FILTER ISC2027 REV D
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
WWW.HAYWARD.COM
Separation Hazzard: Failure to follow the instructions in
this manual on the Clamp Spring Assembly can cause
injury or death. To Avoid injury follow the directions. If
any of the individual components in the clamp assembly,
is damaged or missing the entire clamp assembly
system MUST be replaced.

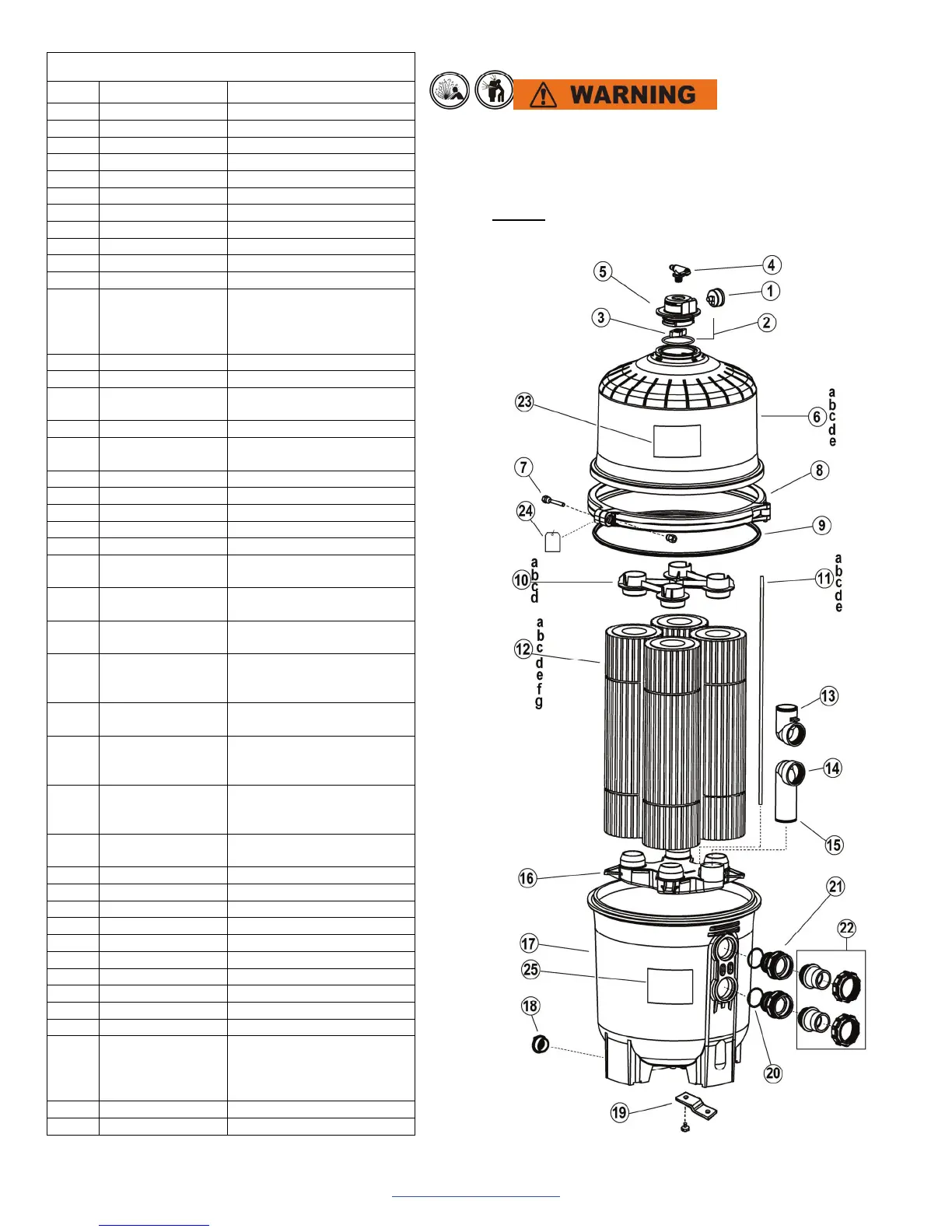

REPLACEMENT PARTS
Item Part No. Description
1 ECX2712B1 Pressure Gauge
2 DEX2420Z8A O-Ring Kit (Set of 2)
3 CCX1000N Air Relief Valve Nut
4 CCX1000V Manual Air Relief w/O-Ring
5 DE2420MAR2 Manual Air Relief Assembly
6a DEX2420BT Upper Filter Body C2020
6b DEX3620BT Upper Filter Body C3020
6c DEX4820BT Upper Filter Body C4020
6d DEX6020BT Upper Filter Body C5020
6e DEX7220BT Upper Filter Body C7000
7 DEX2421J2 Clamp Bolt & Nut
8 DEX2421JKIT
Clamp System including:
Clamp, Clamp Nut and Bolt,
Hang tag, Metal Reinforced
Seal, and Labels
9 DEX2422Z2 Metal Reinforced Seal
10a CX2020DA Top Closure Plate C2020
10b CX3020DA
Top Closure Plate
C3020,C4020
10c CX5020DA Top Closure Plate C5020
10d CX3020D4
Top Closure Plate C7000
Series
11a CX800Z4 Air Relief Tube Assy C2020
11b CX3000Z3 Air Relief Tube Assy C3020
11c CX4000Z3 Air Relief Tube Assy C4020
11d CX5000Z3 Air Relief Tube Assy C5020
11e CX7000Z3 Air Relief Tube Assy C7000
12a CX480XRE
Cartridge Element C2020
4 Required
12b CX580XRE
Cartridge Element C3020
4 Required
12c CX880XRE
Cartridge Element C4020
4 Required
12d CX875RE
Cartridge Element C4520
Series
4 Required
12e CX1280XRE
Cartridge Element C5020
4 Required
12f CX1380RE
Cartridge Element C5520
Series
4 Required
12g CX590XRE
Cartridge Element C7000
Series
8 Required
- CX7020M
Mid plate Connector C7000
only
13 CX3000F1 Inlet Elbow
14 CX3020FB Outlet Elbow
15 DEX360M O-Ring
16 CX3000C Bottom Collector Manifold
17 DEX2420AT Lower Filter Body
18 SP1022C 1 ½” Drain Plug w/O-Ring
19 DEX2420DCKIT Strap kit (Optional)
20 SX220Z2 O-ring
21 DEX2420F Bulkhead Fitting
22 DE2400PAK2CS Cartridge Filter Plumbing Kit
23 DEX2420LA6PAK
Label Pack: Includes all
Warning and Operation
Label’s Hang Tag, Wire Tie
and Owner’s Manual
24 DEX2420LA6PAK Complete as listed above
25 DEX2420LA6PAK Complete as listed above
