Hayward H-Power HPOW-B-D User Manual

Pág. 12

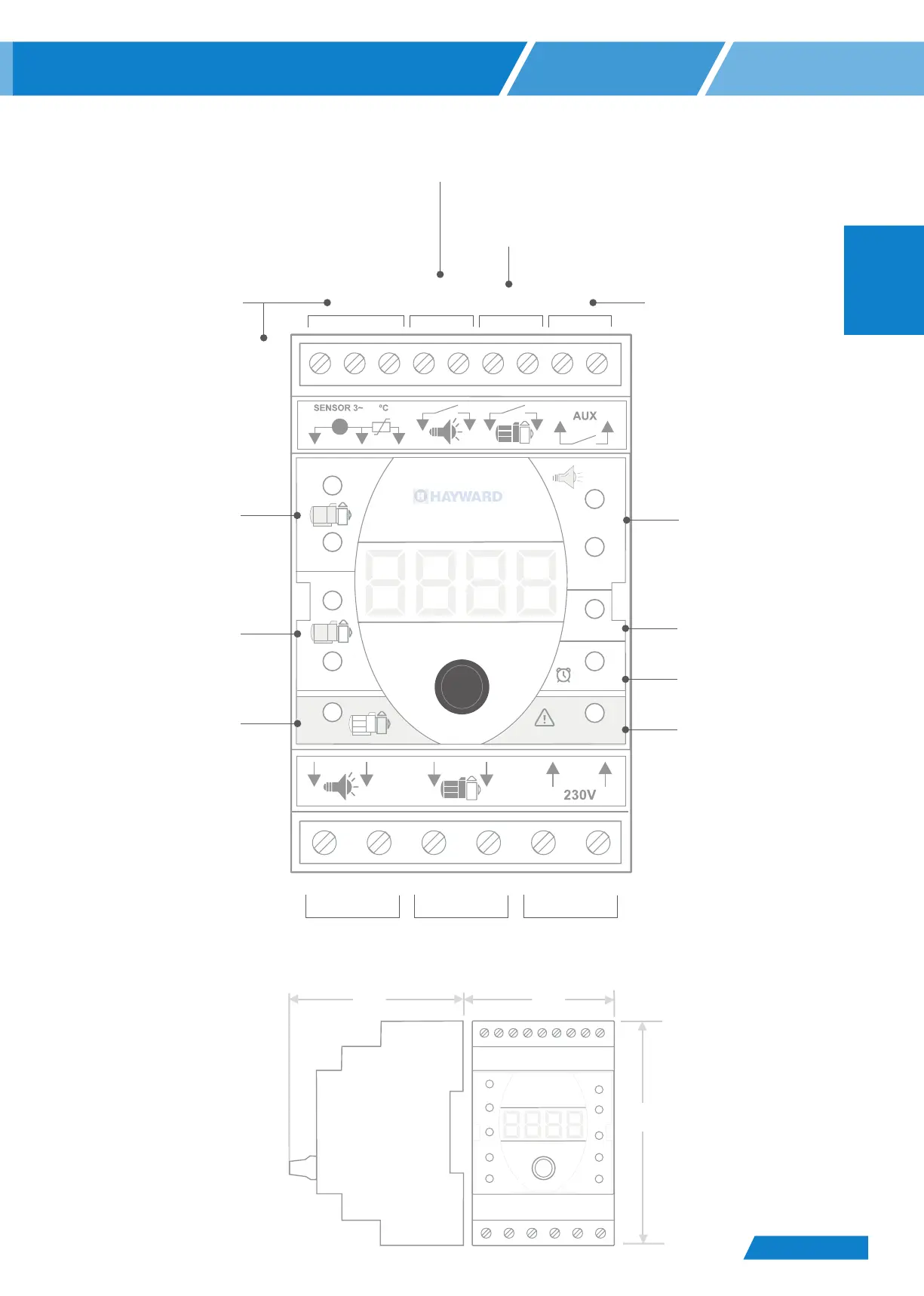

3. Control module/ Pilots
ON
OFF
ON
OFF
ON
OFF
AUX
push to
reset
push>4s
man
1
2
Auxiliary Output
Current Time setting
Alarm
Lighting program
Filtration Pump running
Pool Pump
Filtration program 1
Power inputPump OutputLighting
Output
3 4 5
Pool Pump
Filtration program 2
1 y 2
1.Tranformer current input
2.Heating pump relay input
and/or external temperature sensor.
3.lighting control input
(ON, OFF)
4.Pool pump control input
(ON, OFF)
5.Free potential
91
73
mm
mm
53
mm
ENGLISH ( EN )

Hayward H-Power HPOW-B-D Specifications

General

Brand	Hayward
Model	H-Power HPOW-B-D
Category	Controller
Language	English
