USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 11
Replacement Parts

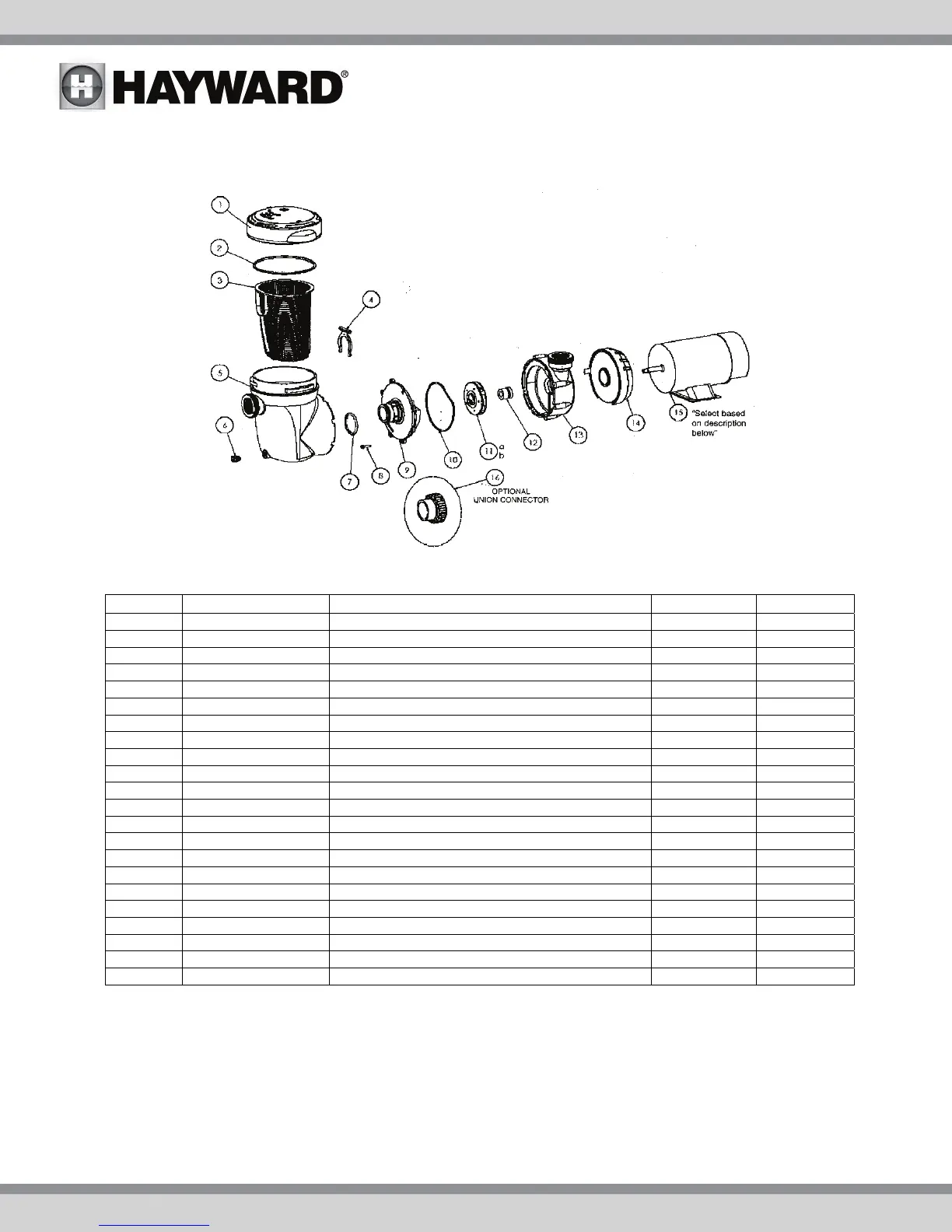

Parts Diagram
Parts Listing
Ref. No. Part No. Description Ctn. Qty. No. Req’d
1 SPX5500D Strainer Cover with Lock Ring & 'O' Ring 10 1
2 SPX5500H Strainer Cover 'O' Ring 10 1
3 SPX5500F Strainer Basket 10 1
4 SPX5500G Strainer Retainer/ 'C' Clip 10 1
5 SPX5500C Strainer Housing 1 1
6 SPX1700FG Drain Plug w/ Gasket 10 1
7 SPX5500K Strainer 'O' Ring 10 1
8 SPX0714Z48 Screw, #14 x 1/4" Type B Pan Head 80 8
9 SPX5500B Pump Cover 4 1
10 SPX0710XZ5 Housing 'O' Ring 10 1
11 ---- Impeller (Refer to Part No. on Original Equipment) * 1
12 SPX1500KA Shaft Seal Assembly 10 1
13 SPX5500A Pump Housing 4 1
14 SPX5500E Shroud Assembly 4 1
15 SPX1510Z1E ¾ HP Single Speed Motor with Switch, Flex-48 1 1
15 SPX1510Z1XE 1 HP Single Speed Motor with Switch, Flex 48 1 1
15 SPX1515Z1E 1 ½ HP Single Speed Motor with Switch, Flex-48 1 1
15 SPX1520Z1ESC 2 HP Single Speed Motor with Switch, Flex-48 1 1
15 SPX1524Z1ESC 2 ½ HP Single Speed Motor with Switch, Flex-48 1 1
15 SPX1510Z24XE 1 HP Two Speed Motor with Switch, Flex48 1 1
15 SPX1515Z2WS 1 ½ HP Two Speed Motor with Switch, Flex-48 1 1
16 SP1500UNPAK2 Union Connector Assembly 50 2
