Hayward Pro-Grid - Part List

Page 10 of 12 Pro-Grid
TM

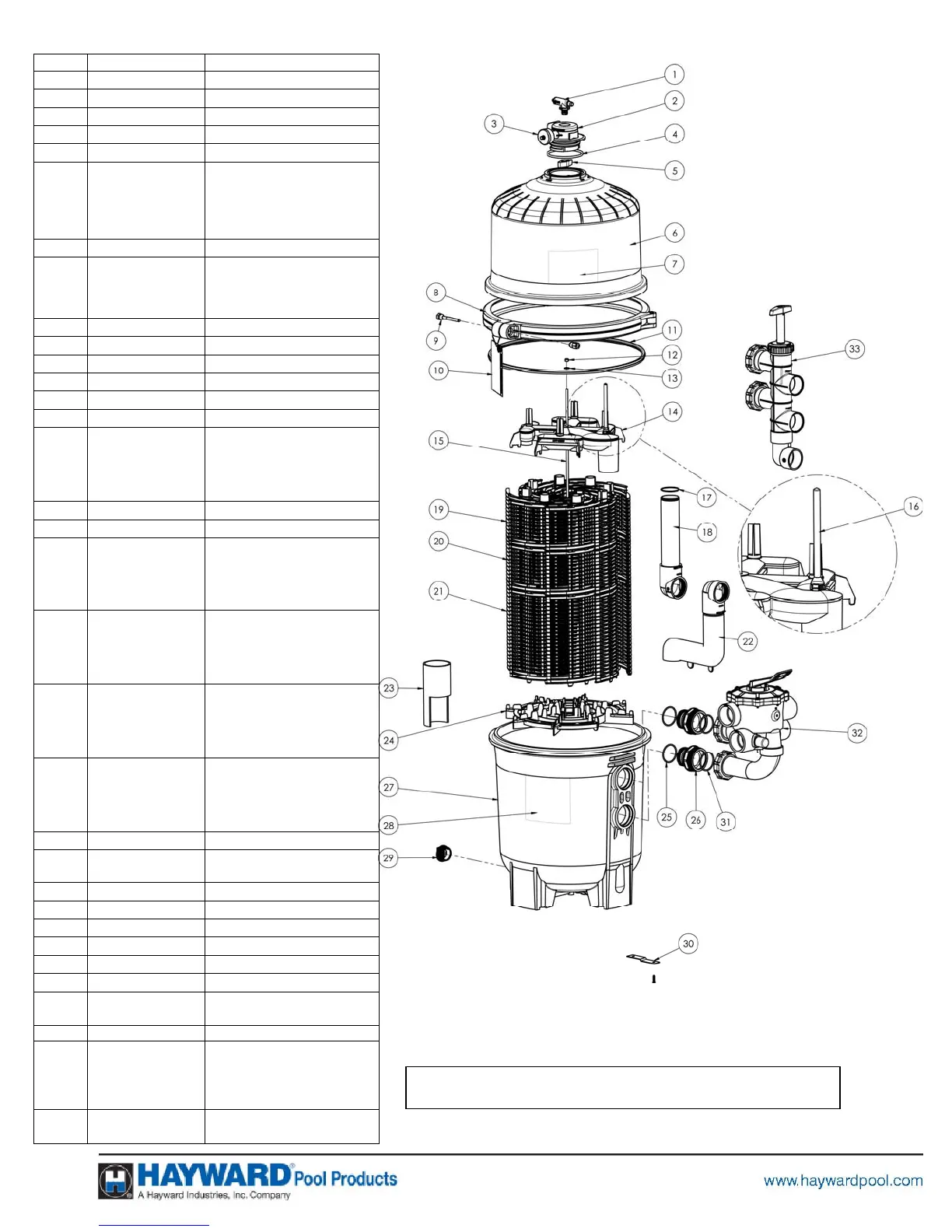

VERTICAL D.E. SERIES FILTER ISDE2423 REV C
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
ITEM Part No. Description
1 CCX1000V Manual Air Relief w/O-ring
2 DEX2420MAR2 Manual Air Relief Assembly
3 ECX2712B1 Pressure Gauge
4 DEX2420Z8A O-Ring Kit (Set of 2)
5 CCX1000N Manual Air Relief Nut
6
DEX2420BT
DEX3620BT
DEX4820BT
DEX6020BT
DEX7220BT
Upper Filter Body DE2420
Upper Filter Body DE3620
Upper Filter Body DE4820
Upper Filter Body DE6020
Upper Filter Body DE7220
7 DEX2420LA6PAK Label Pack*
8 DEX2421JKIT
Clamp System including:
Clamp, Clamp nut and Bolt,
Hang tag, Metal Reinforced
Seal and Labels
9 DEX2421J2 Clamp Bolt and Nut
10 DEX2420LA6PAK Label Pack*
11 DEX2422Z2 Metal Reinforced Seal
12 ECX176865 Retainer Nut 5/16”-18
13 ECX1109 Washer (2 Required)
14 DEX2400C Top Collector Manifold
15
DEX2400R
DEX3600R
DEX4800R
DEX6000R
DEX7200R
Retainer Rod DE2420
Retainer Rod DE3620
Retainer Rod DE4820
Retainer Rod DE6020
Retainer Rod DE7220
16
DEX2400CR Flex Air Relief Assembly
17 DEX2400Z5
Outlet Elbow O-ring
18
DEX2420EA
DEX3620EA
DEX4820EA
DEX6020EA
DEX7220EA
Outlet Elbow DE2420
Outlet Elbow DE3620
Outlet Elbow DE4820
Outlet Elbow DE6020
Outlet Elbow DE7220
19
DEX2420DC
DEX3600DC
DEX4800DC
DEX6000DC
DEX7200DC
Filter Element Cluster
Assembly (Complete set of
elements, collectors,
Locators, Manifold, ect.
20
DEX2400DA
DEX3600DA
DEX4800DA
DEX6000DA
DEX7200DA
Filter Element
(7 Required)
21
DEX2400DS
DEX3600DS
DEX4800DS
DEX6000DS
DEX7200DS
Filter Element Short
(1 Required)
22 DEX2420GA Inlet Diffuser
23 DEX2420T
Element Spacer
(DE2420 Only)
24 DEX2400H Filter Element Locator
25 SX220Z2 Bulkhead O-Ring (2 Req.)
26 DEX2420F Bulkhead Fitting (2 Req.)
27 DEX2420AT Lower Filter Body
28 DEX2420LA6PAK Label Pack*
29 SP1022C 1 ½” Drain Plug w/ O-Ring
30 DEX2420DCKIT
Strap Kit (Optional)
2 straps, 2 Screws
31 SX200Z4 O-Ring (2 Req.)
32
SP0740DE
SP0710XR50
SP0715XR50
Selecta-Flo™ Valve 2” SKT
Vari-Flo™ Valve 1 ½” NPT
Vari-Flo™ Valve 2” NPT
(Optional)
33 SP0410X5025
Slide Valve 2” SKT
(Optional)
*Label Pack: Includes all Warning and Operation Labels, Hang Tag, Wire Tie
and Owner’s Manual
