Hayward Pro Logic PL-PS-16 User Manual

1
System Overview
The Hayward Pro Logic is a multifunction pool controller used to fully manage your pool/spa system. The Pro
Logic can control pumps, valves, lighting, heaters, and chlorination. Although the Pro Logic is easy to use, it is
important to completely read through this operating manual before attempting to operate the control.
NOTE: This manual assumes that the Pro Logic has been wired and configured according to the Installation
Manual. Aspects of the Pro Logic that pertain to system setup are not covered in this manual.
Automation
The PL-PS-4 (-8, -16) can control up to 4 (8, 16) high voltage (120/240V) pieces of equipment, up to 4 (8 for the
PS-16) automatic valve actuators, and 2 conventional heaters plus a solar heater. Both manual and automatic
(programmed) operation are available. All of the control functions can be programmed at a display/keypad which
is part of the main unit (typically located near the pool equipment) or at one or more remote display/keypads.

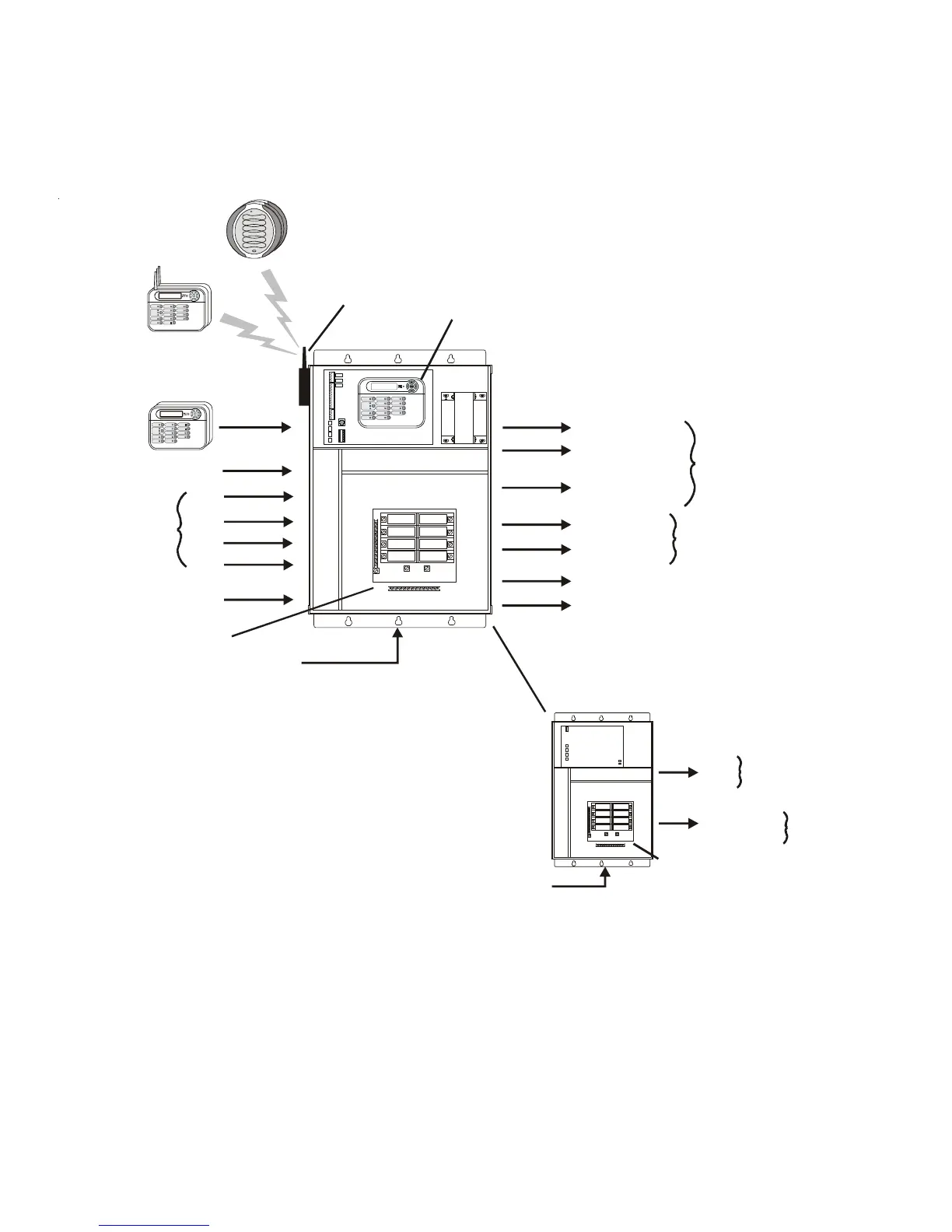

46
Water
External
Input
Air
Spa
(for dual equip)
Solar
Chlorinator
Flow Switch
240 VAC
Power
240 VAC
Power
Filter Pump
Lights
Aux
Aux (8)
Pool/Spa Suction &
Return Valves
General Purpose
Valves (2 )
General Purpose
Valves (4)
Heaters (2)
Chlorinator Cell
Circuit Breaker
Subpanel
Circuit Breaker
Subpanel
Main Display
Keypad
Optional Wired
Remote Display
Keypad
(maximum of three)
Optional Wireless
Remote Display
Keypad
Optional Wireless
Spaside Remote
Temperature
Sensors
120/240V
Relays
120/240V
Relays
24V Valve
A
ctuators
24V Valve
A
ctuators
INPUT
OUTPUT
OUTPUT
Optional
Wireless Base
Receiver
LDLI NE
CONTROLS IN C.
G
POOL SPA
ON OFF
ON OFF
ON OFF
ON OFF
ON OFF
VALV ES
FILTER
HEATER
LIGHTS
AUX 1
AUX 2
(2 for PS-4)
(6 for PS-8, PS-16)
EXPANSION UNIT
PS-4 (-8, -16) MAIN UNIT
(used with PS-16 only)
