Hayward S244SV User Manual

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 6
SPECIFICATIONS
MODEL
NUMBER
EFFECTIVE
FILTRATION
AREA
MAXIMUM
WORKING
PRESSURE
REQUIRED CLEARANCE MEDIA REQUIRED
SIDE ABOVE TYPE AMOUNT
FT
2
M
2
PSI BAR INCH MM INCH MM FILTER
SAND**
LBS KG
S244SV 3.1 .29 50 3.45 18 460 18 460 0.45-0.55mm 300 135
** Also Known as No. 20 Silica Pool Sand

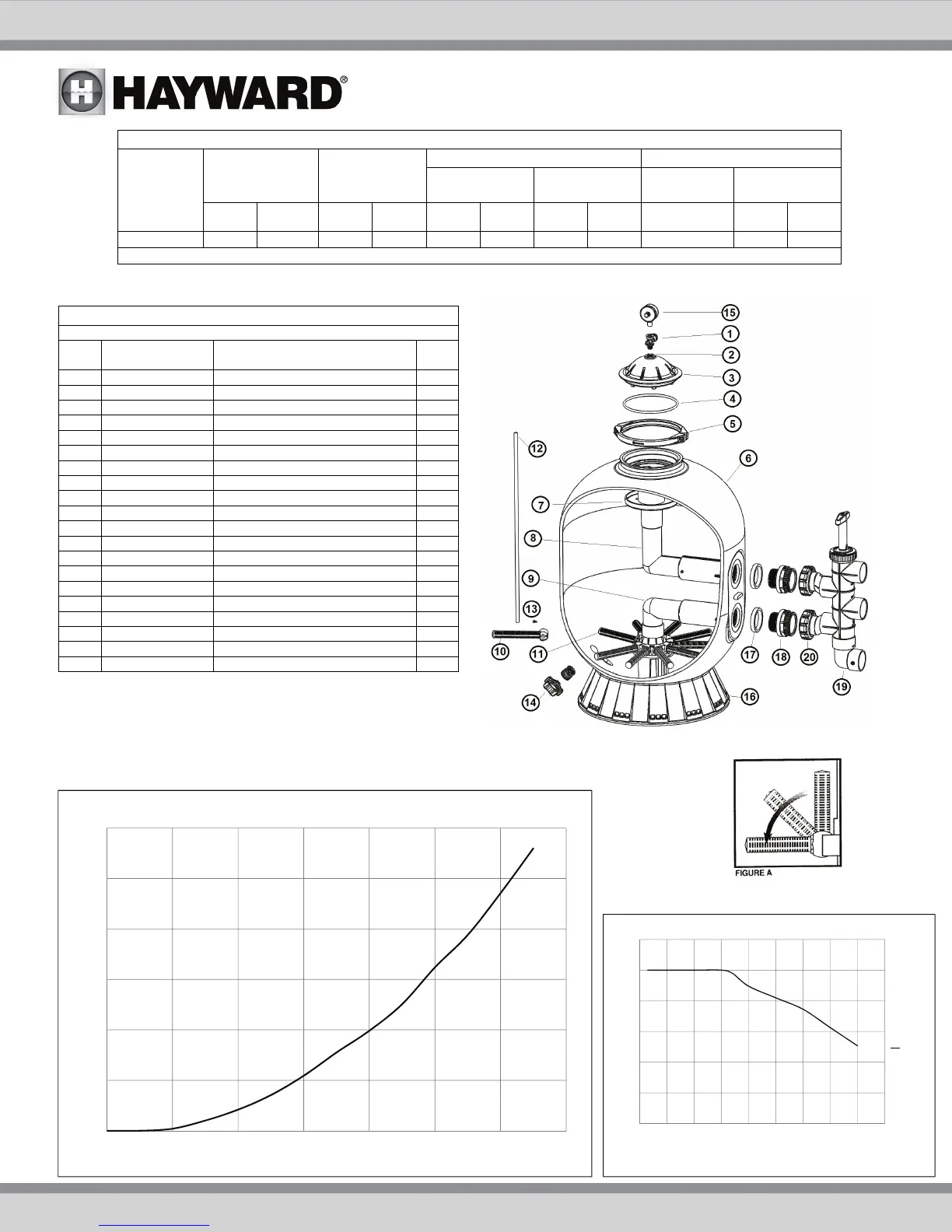

REPLACEMENT PARTS
MODELS: S244SV
REF
NO
PART
NO.
DESCRIPTION
NO.
REQ
1 DEX2400S Air Relief Assy 1
2 SX200Z5 O-Ring 1
3 SX244K Top Closure Dome 1
4 GMX600F Valve/tank O-ring 1
5 GMX600NM Flange Clamp S210S, S244S 1
6 SX244AA2FW Filter Tank w/Base, S244S 1
7 SX244G Top Diffuser 1
8 SX244CD1FW Top Elbow Assembly (S244S) 1
9 SX244CD2FW Bottom Elbow Assembly (S244S) 1
10 SX240DNPAK10 Lateral Pack of 10 (24”) 1
11 SX242MA1 Lateral Holder Assy w/S240DN 1
12 CX1100Z4 Plastic Air Tube (S244S) 1
13 SX200Z2 Air Tube Lock Screw 1
14 SX180LA Drain Cap Assy 1
15 ECX270861 Pressure Gauge 1
16 SX200J Filter Stand Support 1
17 SX244Z1 Square Seal 2
18 SX244PX Bulkhead Fitting w Seal 2
19 SP0410X602S 2” Slide Valve W/ 2 In Socket 1
20 SX200Z4 O-Ring 2
0
5
10
15
20
25
30
0 20 40 60 80 100 120 140
Head Loss
in Feet of Water
Flow in GPM
Head Loss with 2" Slide Valve
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70 80 90 100 110 120 130 140 150 160
Maximum Pressure PSI
Temperature °F
Temperature vs Maximum Pressure
S244SV

Hayward S244SV Specifications

General

Brand	Hayward
Model	S244SV
Category	Water Filtration Systems
Language	English
