USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 4 of 12 SWIMCLEAR™ CARTRIDGE FILTER ISC2031 REV A
GENERAL INFORMATION
Your Hayward SwimClear
TM
cartridge filter combines superior water filtration with ease of operation and totally
corrosion-resistant construction. With filtration ratings to 9000 gallons (34,000 liters) per hour, they are
designed for continuous or intermittent operation, for installation above or below the pool water line, for fresh
or salt water swimming pools or spas. SwimClear™ filters utilize multiple reusable, reinforced polyester filter
cartridge elements to provide a high degree of water clarity and long filter cycles with minimum care.

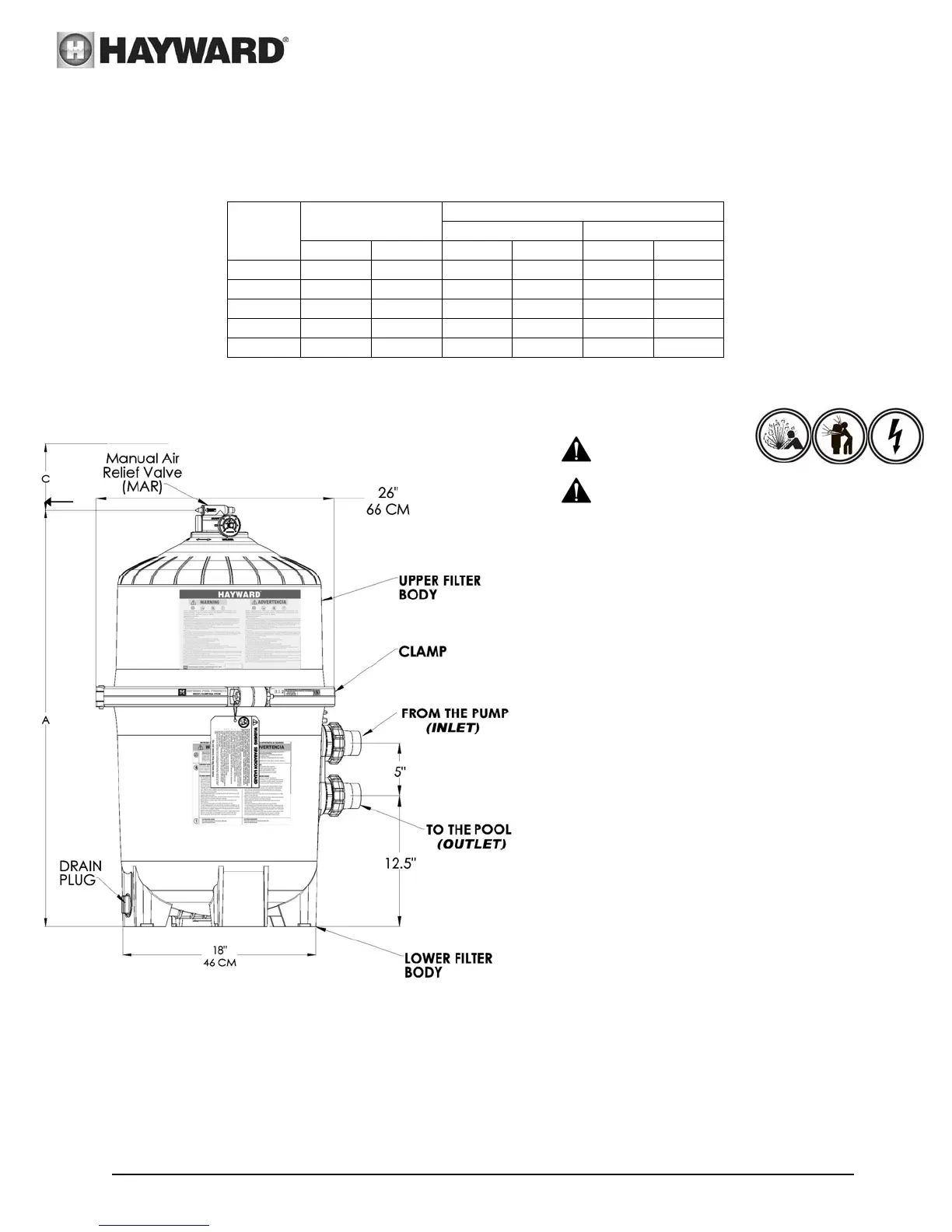

A
REQUIRED CLEARANCE
“B” SIDE “C” ABOVE
IN CM IN CM IN CM
C2030 32.5 83 18 46 15 38
C3030 34.5 88 18 46 16 41
C4030 40.5 103 18 46 18 46
C5030 46.5 118 18 46 22 56
C7030 52.5 133 18 46 28 71
INSTALLATION
WARNING
This product should be installed and
serviced only by a qualified pool
professional.
1. The filter system should be
installed on a
level concrete slab or
other rigid base. Select a well
drained and vented area, one that
does not flood when it rains.
Position the filter so that the piping
connections, and winter drain are
convenient and accessible for
operation, service, maintenance
and winterizing.
2. Position filter body such that all
operation and safety labels are
visible.
3. Position filter so the filter will drain
by gravity.
4. If practical, place pump and filter in
the shade to shield it from
continuous, direct heat from the
sun.
5. Connect the pool suction plumbing
between the skimmer, pool suction
outlet (from the pool) and the
pump.
6. Connect the pump discharge (pump OUTLET) to the top port of the filter (filter INLET).
7. Connect the bottom filter port (filter OUTLET) to the pool return plumbing lines.
8. Do not locate pump controls over or near filter.
9. Verify water discharge from the manual air relief valve(MAR) is directed away from electrical devices.
B
