HIKVISION DS-2CD2142FWD-IWS User Manual

Network Dome Camera·Quick Start Guide
29
29
Mounting with Brackets 2.3
This camera series supports mounting with wall mounting bracket,
pendant mounting bracket, and incline mounting bracket. We take
Type III camera as the demonstration example.
Wall Mounting 2.3.1
The wall mounting bracket is not included in the package. You need
to prepare one, if you adopt this mounting type.
Steps:

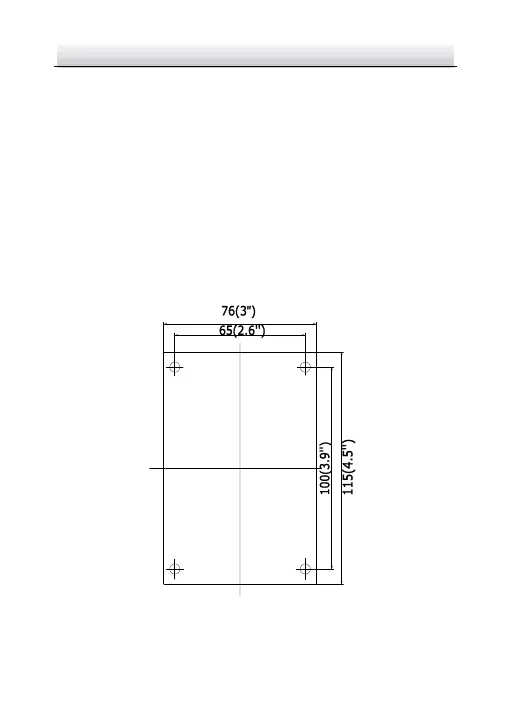

1. Mark the screw holes on desired mounting place.
Hole
Hole
Hole
Hole
Mark Screw Hole Figure 2-10
