User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
18
Chapter 4 Live View
4.1 Live View Page
Purpose:
The live video page allows you to view live video, capture images, realize PTZ control,
set/call presets and configure video parameters.
Log in the network camera to enter the live view page, or you can click
on the menu bar of the main page to enter the live view page.
Descriptions of the live view page:

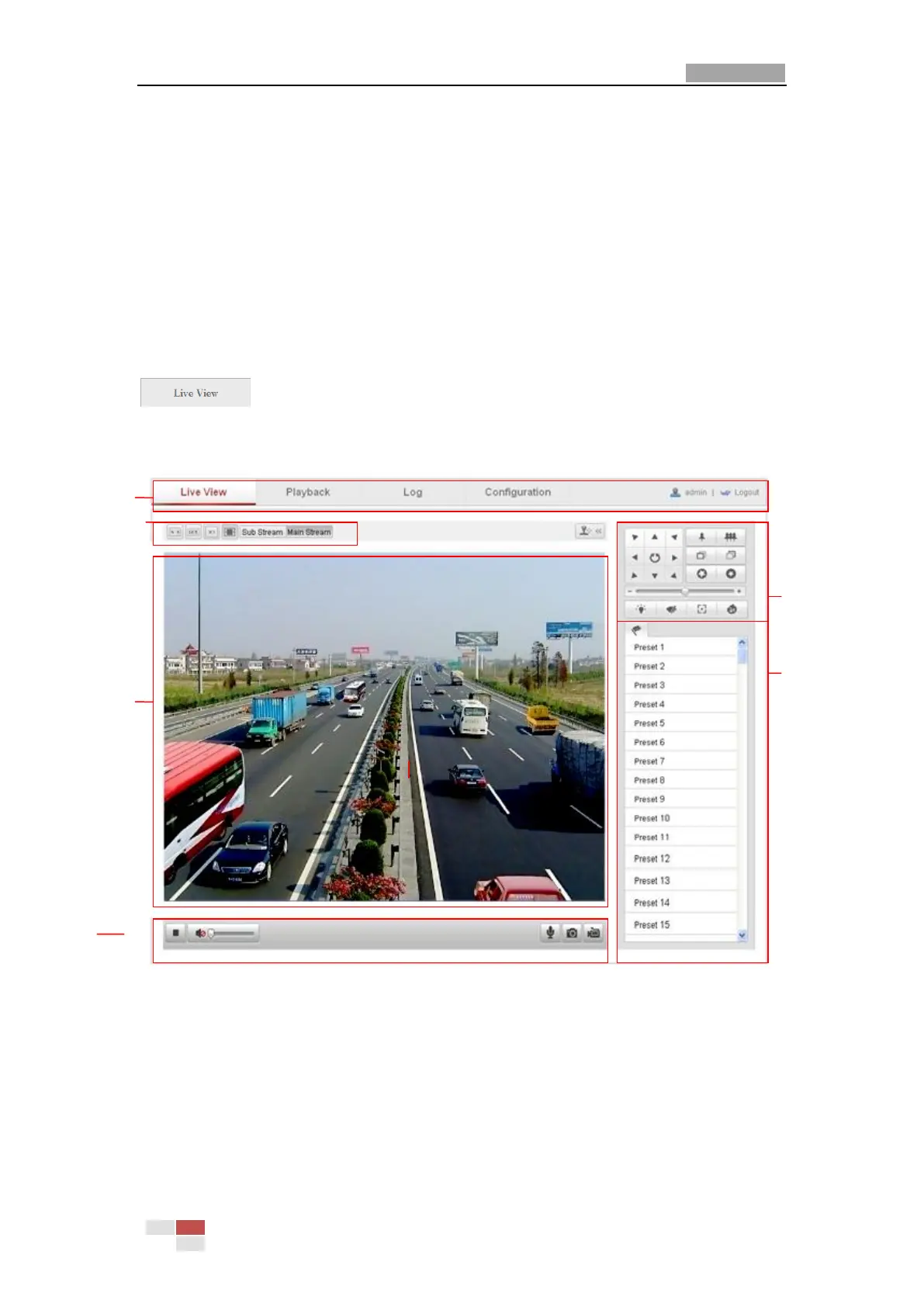

Figure 4-1 Live View Page
Menu Bar:
Click each tab to enter Live View, Playback, Log and Configuration page respectively.
Live View Window:
Display the live video.
Toolbar:
Operations on the live view page, e.g., live view, capture, record, audio on/off,
Menu Bar
Toolbar
PTZ control
Preset setting/calling
Live View Parameters
