HIKVISION DS-2CD2532F-IS Quick Operation Guide

Network Mini Dome Camera·Quick Operation Guide
12
12
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
2.1 Ceiling Mounting
Steps:
1. Drill the screw holes and the cable hole in the ceiling according
to the supplied drill template.

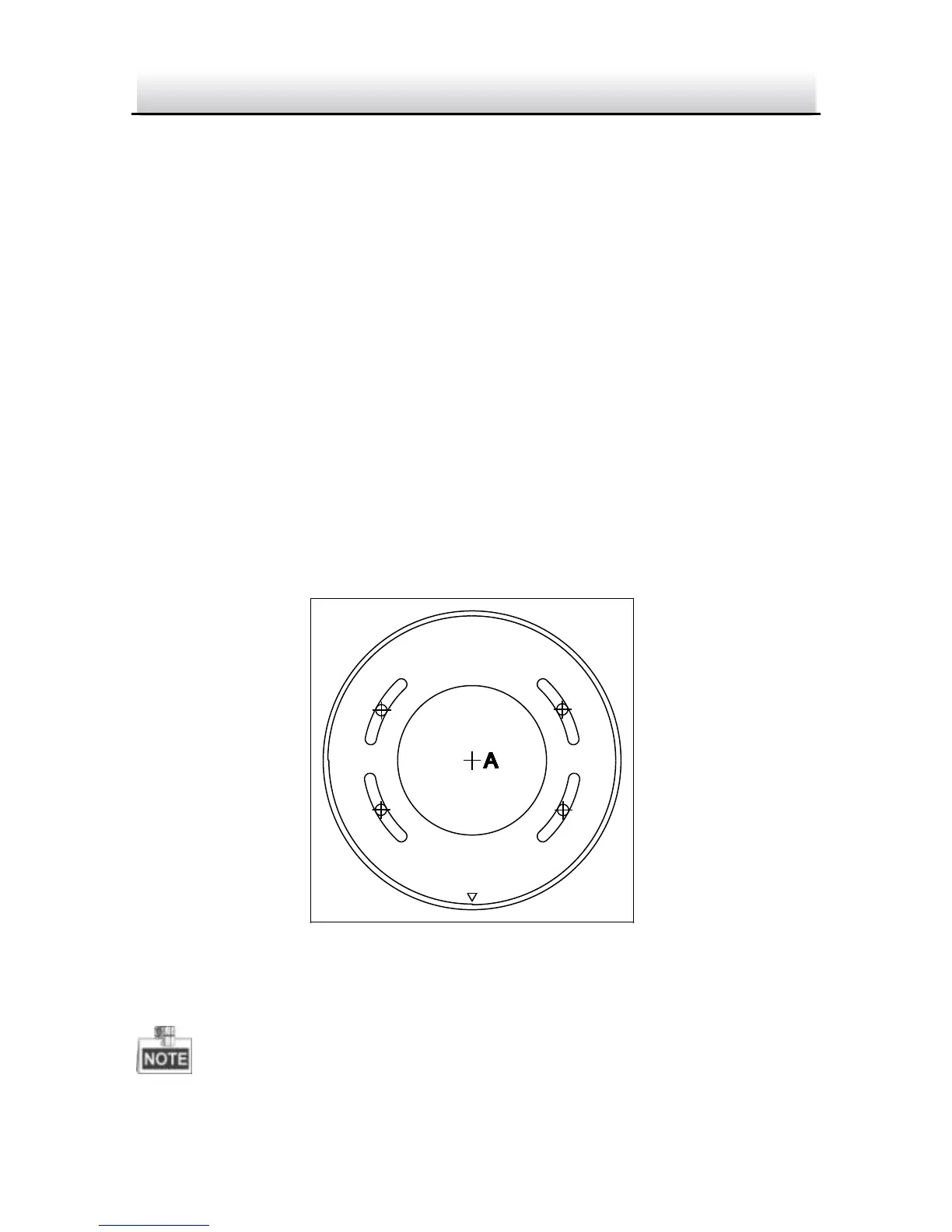

Type I Drill Template Figure 2-1
Drill Template
1
1
1
1
Hole A:for cables routed through the ceiling
Screw hole 1:for Mounting Base
FRONT

HIKVISION DS-2CD2532F-IS Specifications

General

Fixed focal length	6 mm
Maximum aperture number	2
Pan range	-30 - 30 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0 lx
Field of view (FOV) angle	43.3 °
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/3 \
Password protection type	User
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
LED type	IR
Night vision distance	10 m
Cabling technology	10/100Base-T(X)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Number of cameras	1
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	12
Power source type	PoE
Power consumption (max)	5 W
Audio system	2-way
Audio formats supported	G.711, G.726
Interface	RJ-45
Lens mount interface	M12

Weight and Dimensions

Depth	96.7 mm
Width	99.3 mm
Height	52.8 mm
Weight	600 g
