User Manual of Digital Video Recorder
148
12.1.3 Viewing Record Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Record tab to enter the Record Information menu to view the recording status encoding parameters
of each camera, as shown in Figure 12. 3.

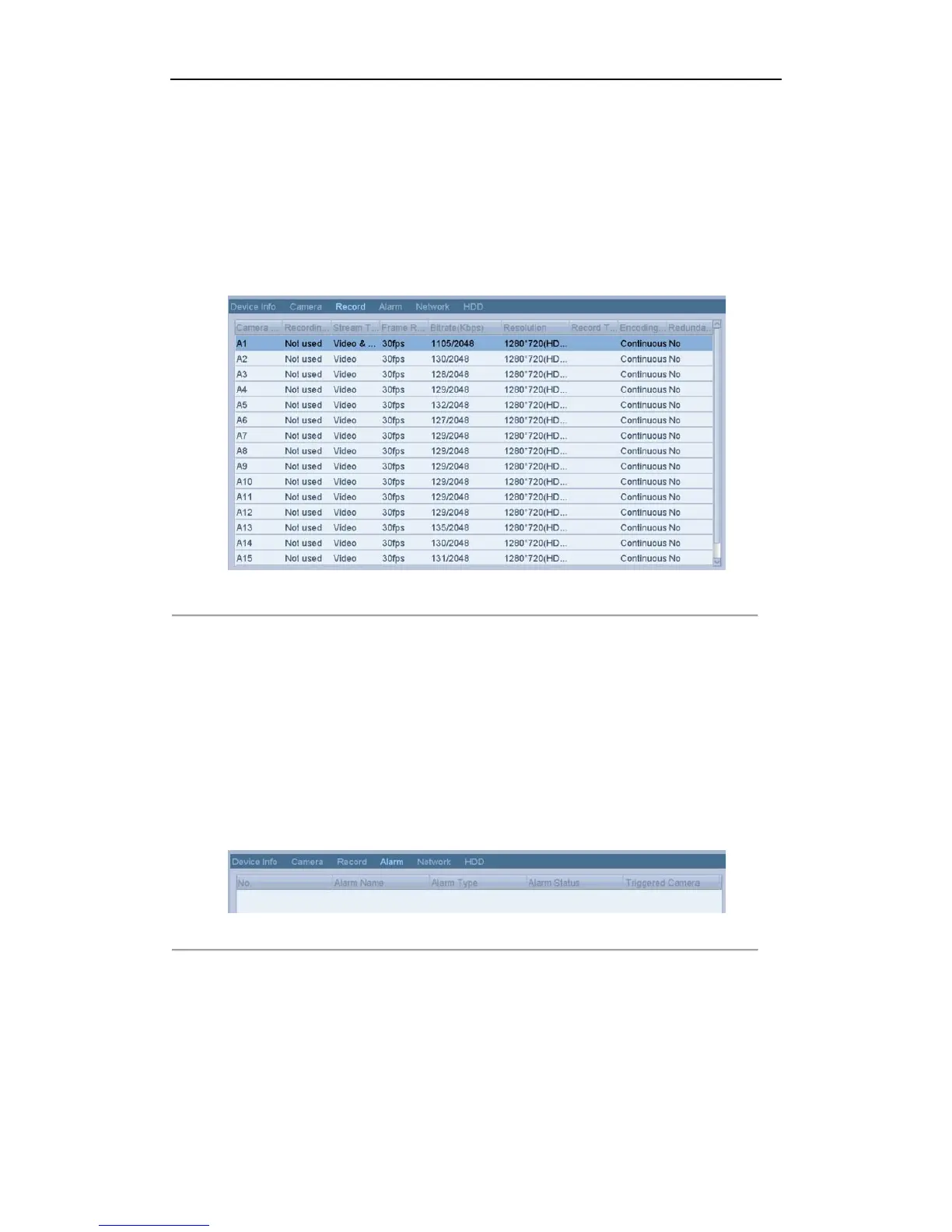

Figure 12. 3 Record Information Interface
12.1.4 Viewing Alarm Information
Note: his function is not supported by FT series DVR.
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Alarm tab to enter the Alarm Information menu to view the alarm information, as shown in Figure
12. 4.
Figure 12. 4 Alarm Information Interface
12.1.5 Viewing Network Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info

HIKVISION DS-2CD7164-E Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Minimum illumination	0.01 lx
Field of view (FOV) angle	73 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	2.0
Fixed focal length	8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
