UM ColorVu DS-2CExxHFT-Fxx 122919NA 8

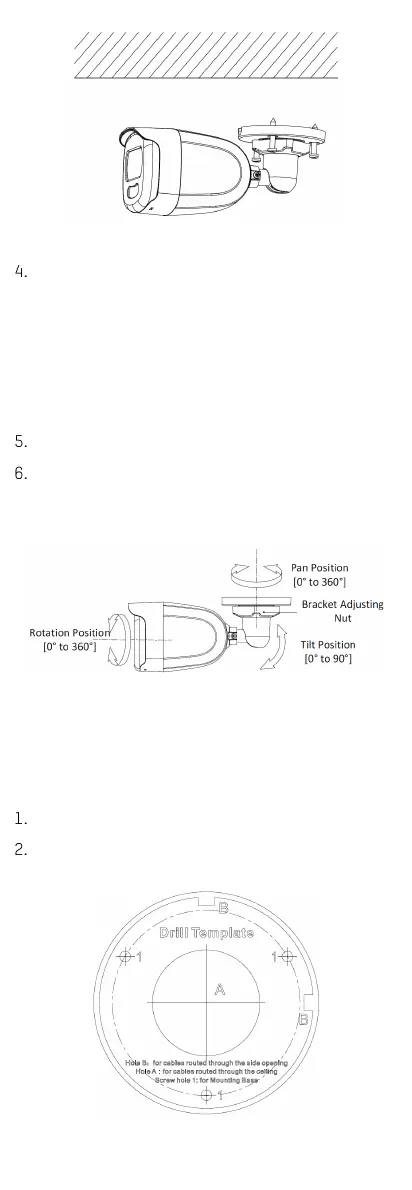

Figure 5, Secure the Camera to the Ceiling
Attach the bracket to the ceiling, and secure the
camera with supplied screws.
NOTES: The supplied screw package contains self-
tapping screws and expansion bolts.
For a concrete wall/ceiling, expansion bolts are
required to fix the camera. For a wood
wall/ceiling, self-tapping screws are required.
Connect the power cord and video cable.
Power on the camera to check if the image on the
monitor is at an optimum angle. If not, loosen the
bracket adjusting nut to modify the position.
Figure 6, 3-Axis Adjustment
2.1.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box in advance.
Paste the drill template (supplied) on the ceiling/wall.
Drill screw holes and the cable hole on the ceiling
according to the drill template.
Figure 7, Drill Template of Junction Box
To Next Page
