Network Video Recorder Quick Start Guide
10
Figure 1. 4 DS-7700NI Series

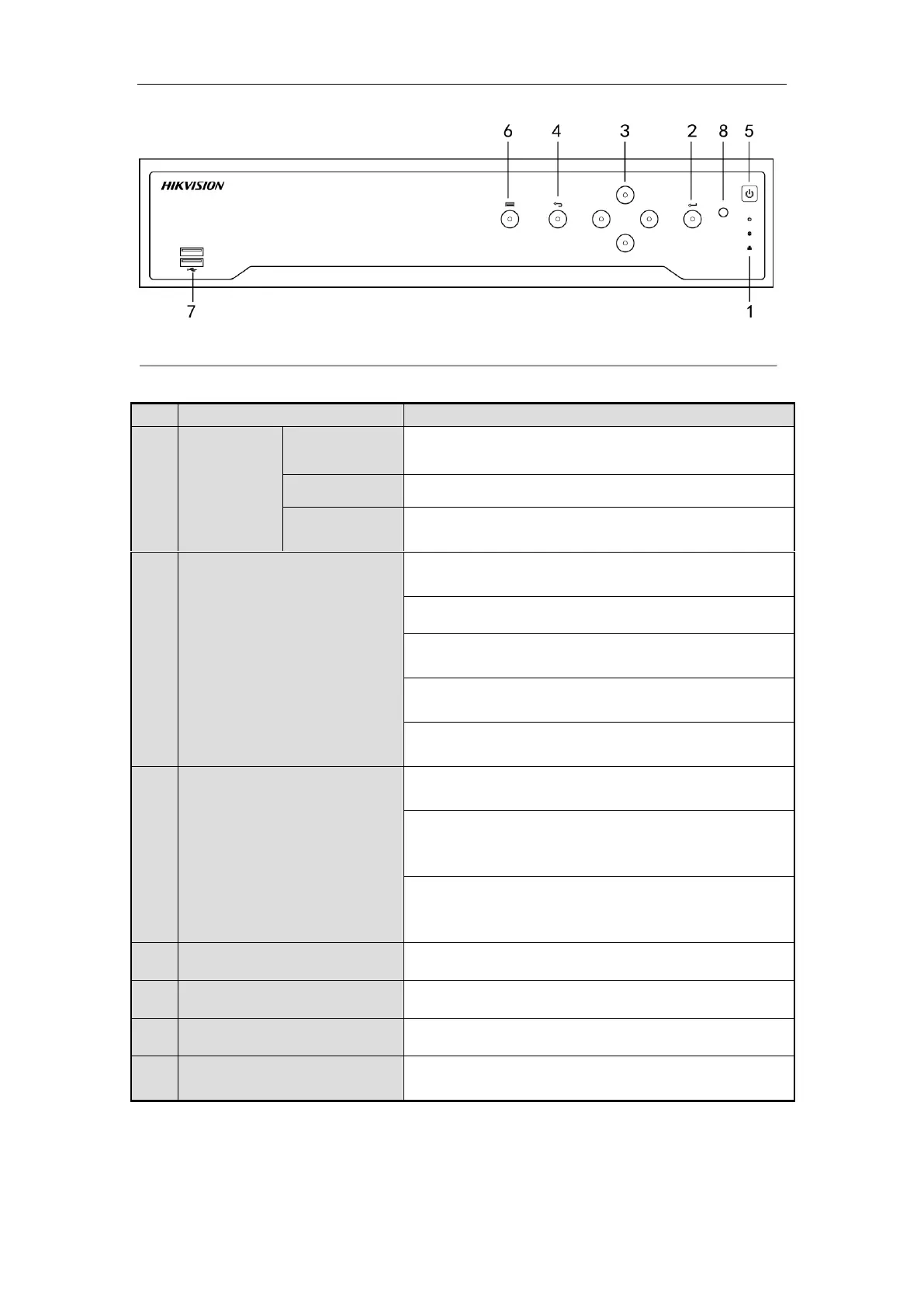

Table 1. 2 Panel Description
Turns green when NVR is powered up.
Blinks red when HDD is reading/writing.
Blinks green when network connection is functioning normally.
The Enter button is used to confirm selection in menu mode; or
used to check checkbox fields and ON/OFF switch.
In playback mode, it can be used to play or pause the video.
In single-frame play mode, pressing the Enter button will play the
video by a single frame.
In auto sequence view mode, the buttons can be used to pause or
resume auto sequence.
The Enter button is used to confirm selection in menu mode; or
used to check checkbox fields and ON/OFF switch.
In menu mode, the direction buttons are used to navigate between
different fields and items and select setting parameters.
In playback mode, the Up and Down buttons are used to speed up
and slow down record playing, and the Left and Right buttons are
used to move the recording 30s forwards or backwards.
In the image setting interface, the up and down button can adjust
the level bar of the image parameters.
In live view mode, these buttons can be used to switch channels.
Back to the previous menu.
Access the main menu interface.
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
