HIKVISION DS-7104HQHI-F1/N User Manual

Digital Video Recorder User Manual
110

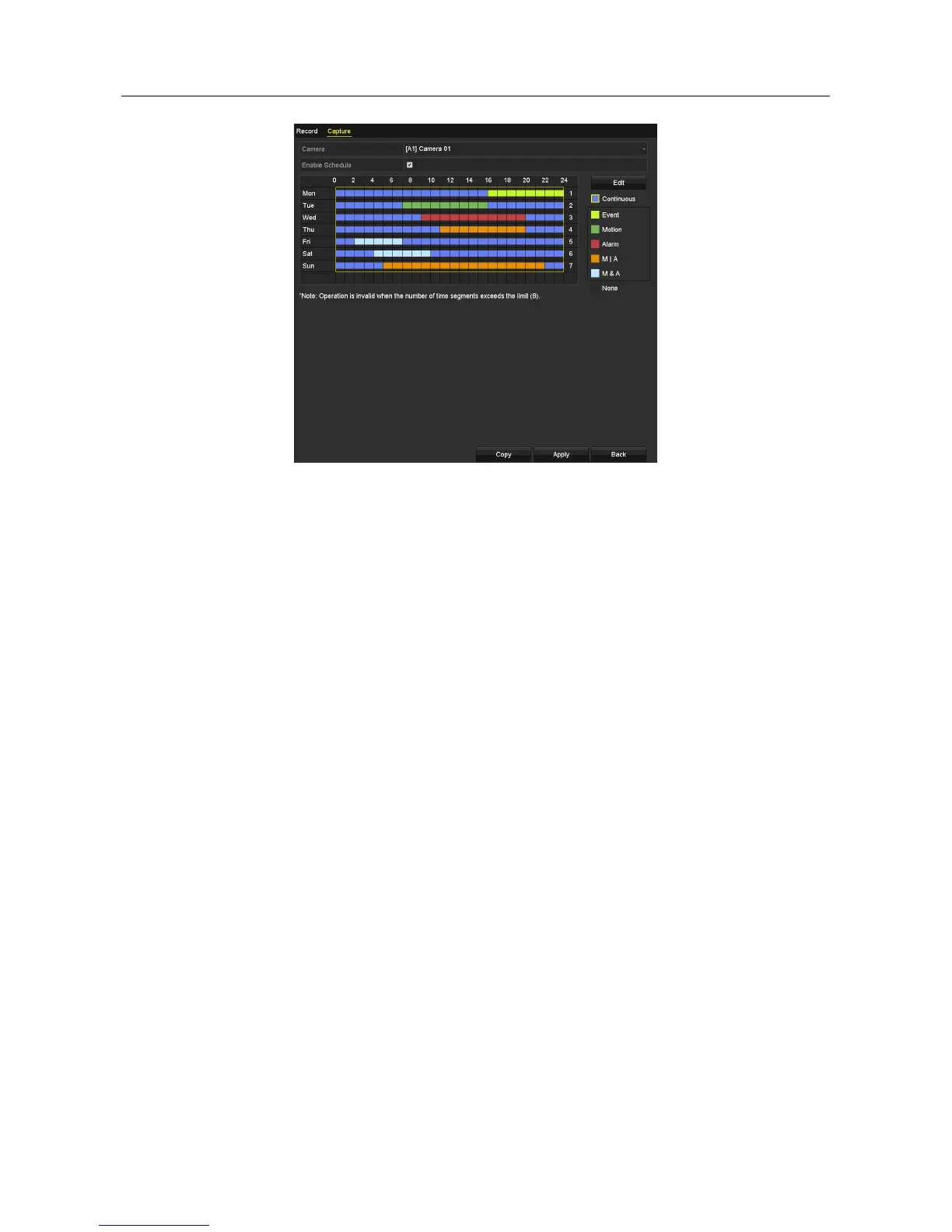

Figure 5-13 Draw the Capture Schedule
2) Click and drag the mouse on the schedule.
3) Click on the other area except for the schedule table to finish and exit from the drawing.
You can repeat step 4 to set schedule for other channels. If the settings can also be used to
other channels, click Copy, and then choose the channel to which you want to copy to.
Step 5 Click Apply in the Record Schedule interface to save the settings.
5.3 Configuring Motion Detection Recording and Capture
Purpose
Follow the steps to set the motion detection parameters. In the live view mode, once a motion
detection event takes place, the DVR can analyze it and do many actions to handle it. Enabling
motion detection function can trigger certain channels to start recording, or trigger full screen
monitoring, audio warning, notifying the surveillance center, sending email and so on.
Step 1 Enter the Motion Detection interface.
Menu>Camera>Motion

HIKVISION DS-7104HQHI-F1/N Specifications

General

Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
BNC input ports	1
Video input channels	4 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
