HIKVISION DS-7104NI-Q1 Quick Start Guide

Network Video Recorder Quick Start Guide
8

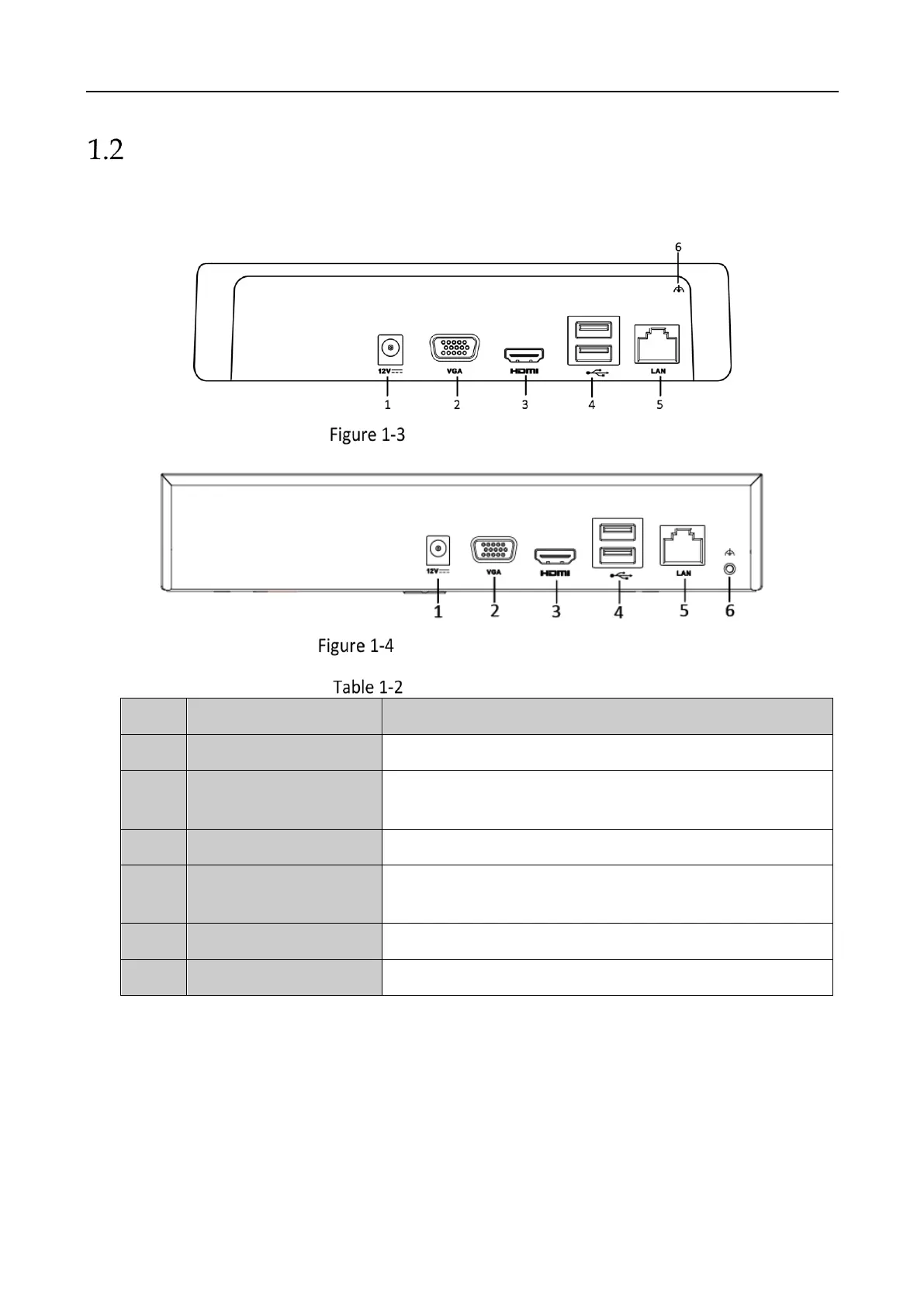

Rear Panel
DS-7100NI-Q1 and DS-7100NI-Q1/M Series
DS-7100NI-Q1 Rear Panel
DS-7100NI-Q1/M Rear Panel
Description of Rear Panel
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
LAN Network Interface
10 /100 Mbps self-adaptive Ethernet interface.
6
Ground
Ground (needs to be connected when NVR starts up).

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
