Chapter1 Panels Description
1.1 Front Panel
The front panel vaires according to different models. Please refer to the actual product. The
following figures only take examples of several models.
 Front Panel 1

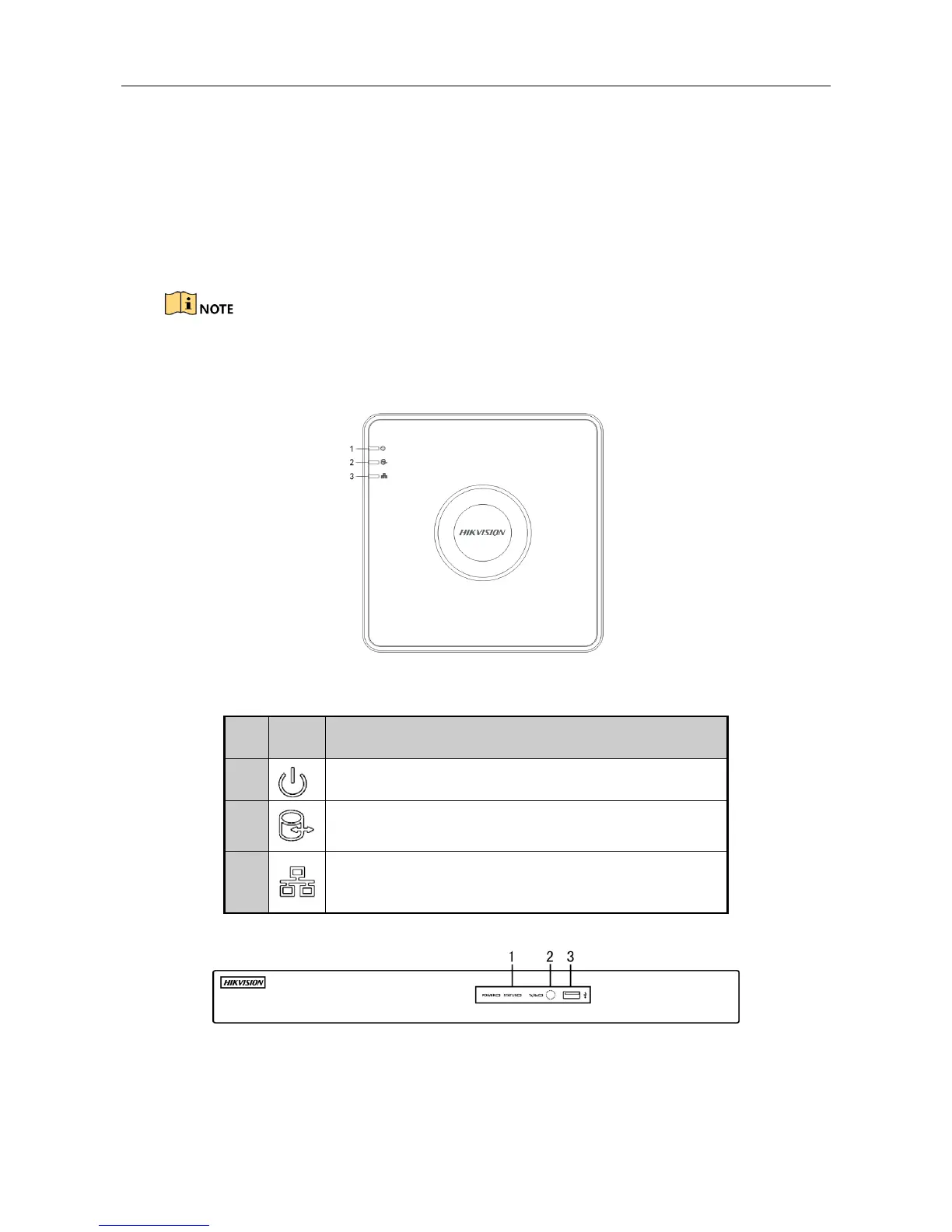

Figure 1-1 Front Panel 1
Table 1-1 Description of Front Panel 1
No.
Icon
Description
1
Turns red when DVR is powered up.
2
Turns red when data is being read from or written to
HDD.
3
Flickers blue when network connection is functioning
properly.
 Front Panel 2
Figure 1-2 Front Panel 2

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
