HIKVISION DS-7208HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
37

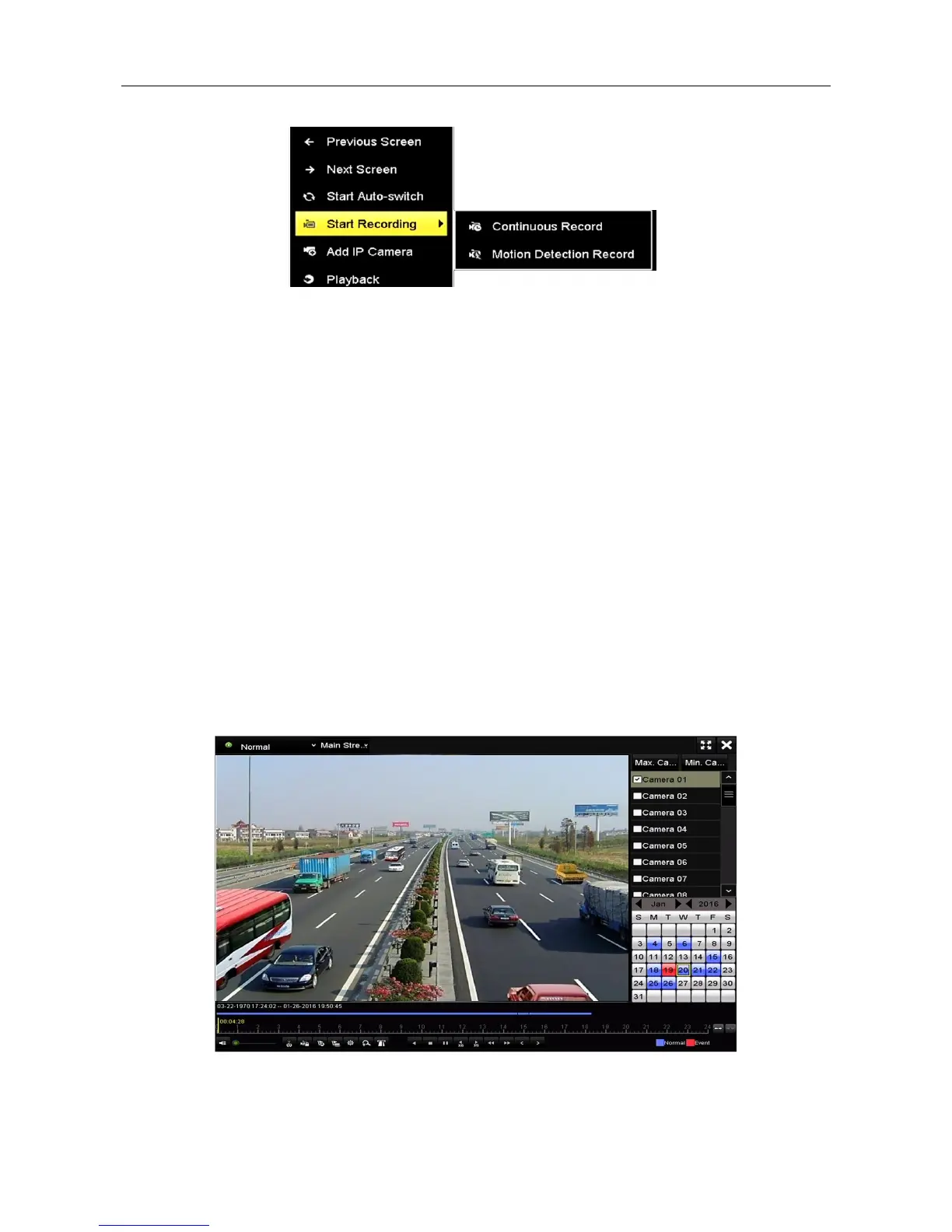

Figure 3-24 Start Recording from Right-click Menu
Step 2 Click the Yes button in the pop-up Attention message box to confirm the settings. All the
channels will start to record in the selected mode.
3.12 Playback
The recorded video files and pictures on the hard disk can be played back in the following modes:
instant playback, all-day playback for the specified channel, and playback by
normal/event/smart/tag/system logs/sub-periods/external file search/picture.
Step 1 Enter playback interface.
Menu > Playback
Or select Playback from the right-click menu.
Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on
the calendar.
Step 3 (Optional) Use the toolbar in the bottom part of Playback interface to control playing
progress.
Figure 3-25 Playback Interface

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
