HIKVISION DS-7216HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
31
Menu > Shutdown

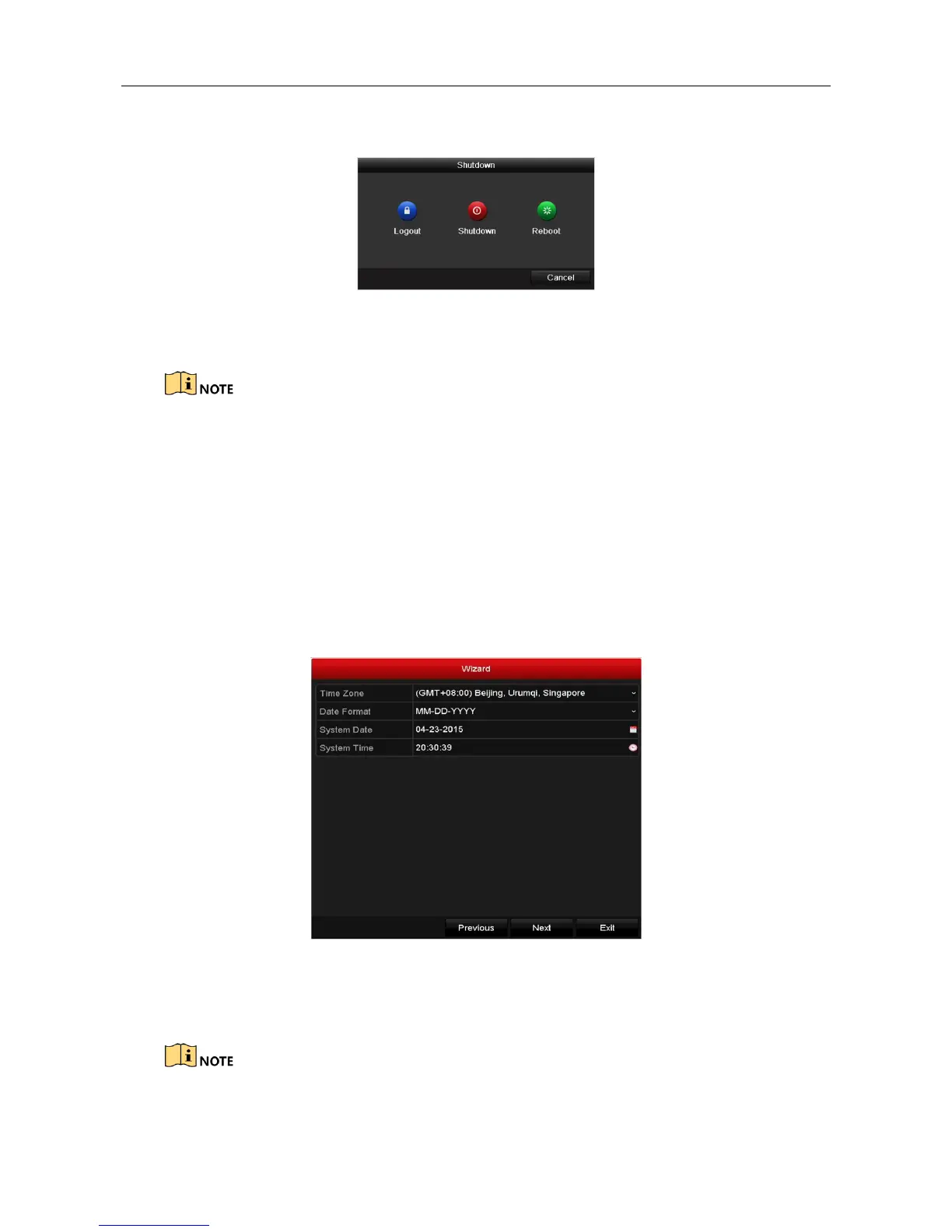

Figure 3-17 Logout
Step 2 Click Logout.
After you have logged out the system, menu operation on the screen is invalid. It is required to
input a user name and password to unlock the system.
3.6 Using the Setup Wizard
The Setup Wizard can walk you through some important settings of the device. By default, the
Setup Wizard starts once the device has loaded.
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup
wizard. Follow the guide of the Setup Wizard to configure the system resolution, system date/time,
network settings, HDD management, record settings, etc.
Figure 3-18 Wizard
3.7 Viewing Signal Input Status
The Single Input Status interface is only available for DS-7200HUHI-F/S series DVR.

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
