Digital Video Recorder User Manual
80
Step 5 Click Apply to save the settings.
Step 6 Optionally, you can click Copy to copy the settings to other analog channels if needed.

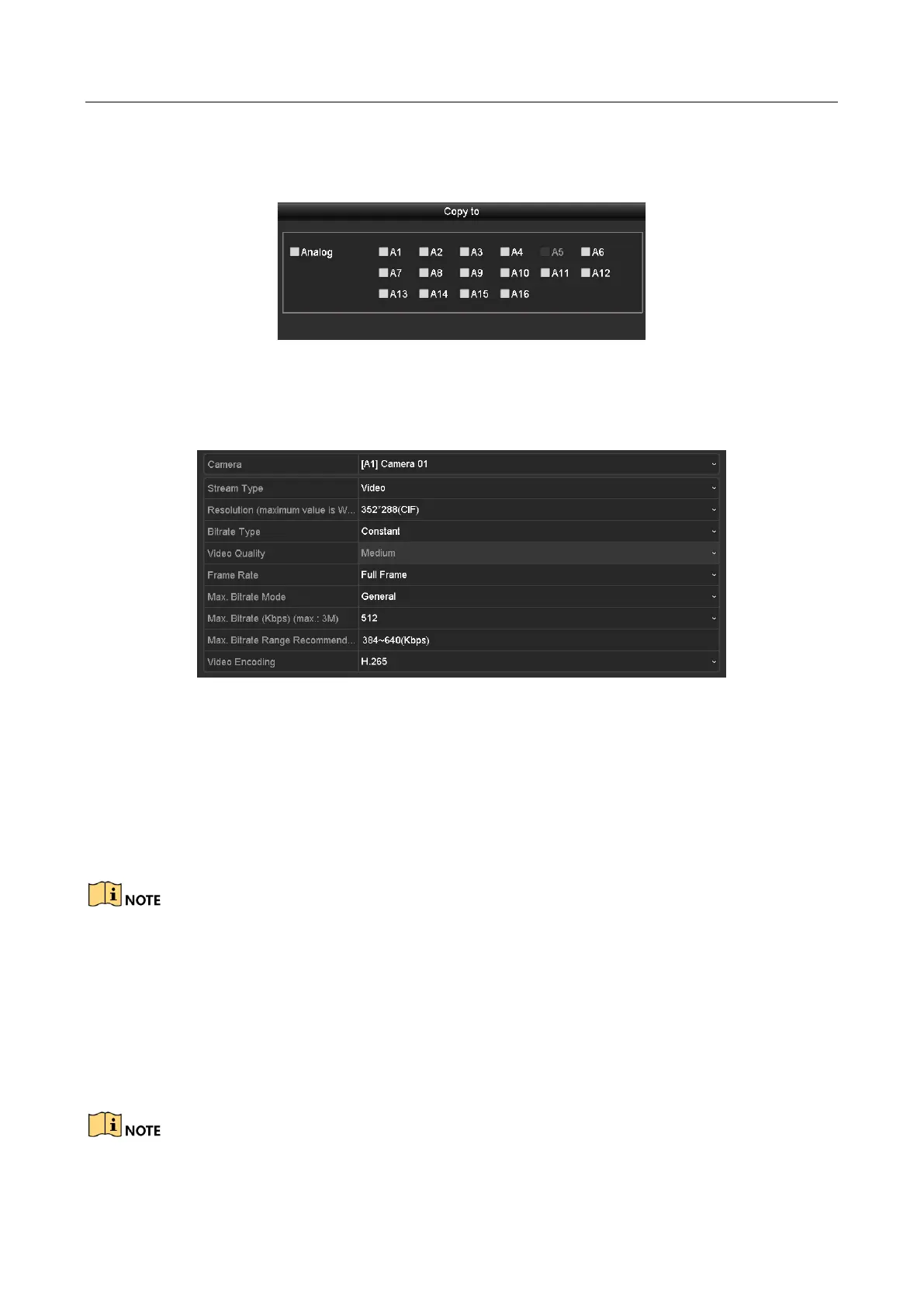

Figure 5-5 Copy Camera Settings
Step 7 Set encoding parameters for sub-stream.
1) Select the Sub-Stream tab.
Figure 5-6 Sub-Stream Encoding
2) Select a camera in the camera drop-down list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

The resolution of sub-stream can be selected among WD1, 4CIF, and CIF.

The minimum frame rate for the sub-stream is 1 fps.

You can select the Video Encoding for the sub-stream of IP and analog cameras. For the
analog cameras, H.264 and H.265 are selectable. For the IP cameras supporting H.265, you
can select H.265 encoding mode.
5.2 Configuring Recording Schedule

HIKVISION DS-7216HUHI-K2 Specifications

General

BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	25 W
Voltage	12 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
