HIKVISION DS-7604NI-Q1 User Manual

Network Video Recorder Quick Start Guide
13
Chapter 2 Installation and Connections
2.1 NVR Installation
During installation of the NVR:
 Use brackets for rack mounting.
 Ensure ample room for audio and video cables.
 When routing cables, ensure that the bend radius of the cables are no less than five times than
its diameter.
 Connect the alarm cable.
 Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
 Ensure the NVR is grounded.
 Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.
 Environmental humidity should be within the range of 10% to 90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.

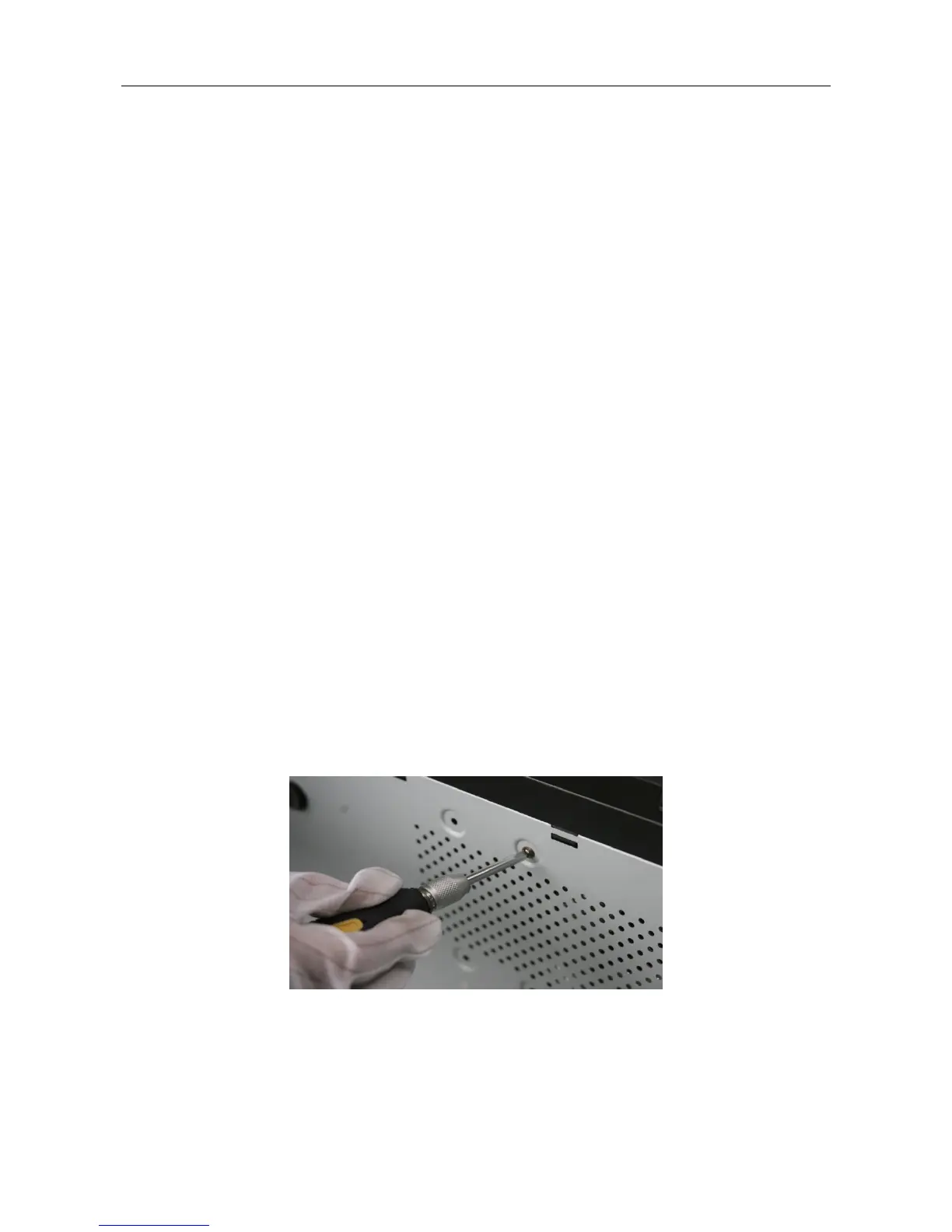

Step 1 Remove the cover from the NVR by unfastening the screws on the rear and side panel.
Figure 2-1 Remove Cover
Step 2 Connect one end of the data cable to the motherboard of NVR and the other end to the
HDD.

HIKVISION DS-7604NI-Q1 Specifications

General

Audio system	2-way
Input bandwidth	40 Mbit/s
Number of users	16 user(s)
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	4
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	50 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	Part 15 Subpart B, ANSI C63.4-2014

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
