HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
14

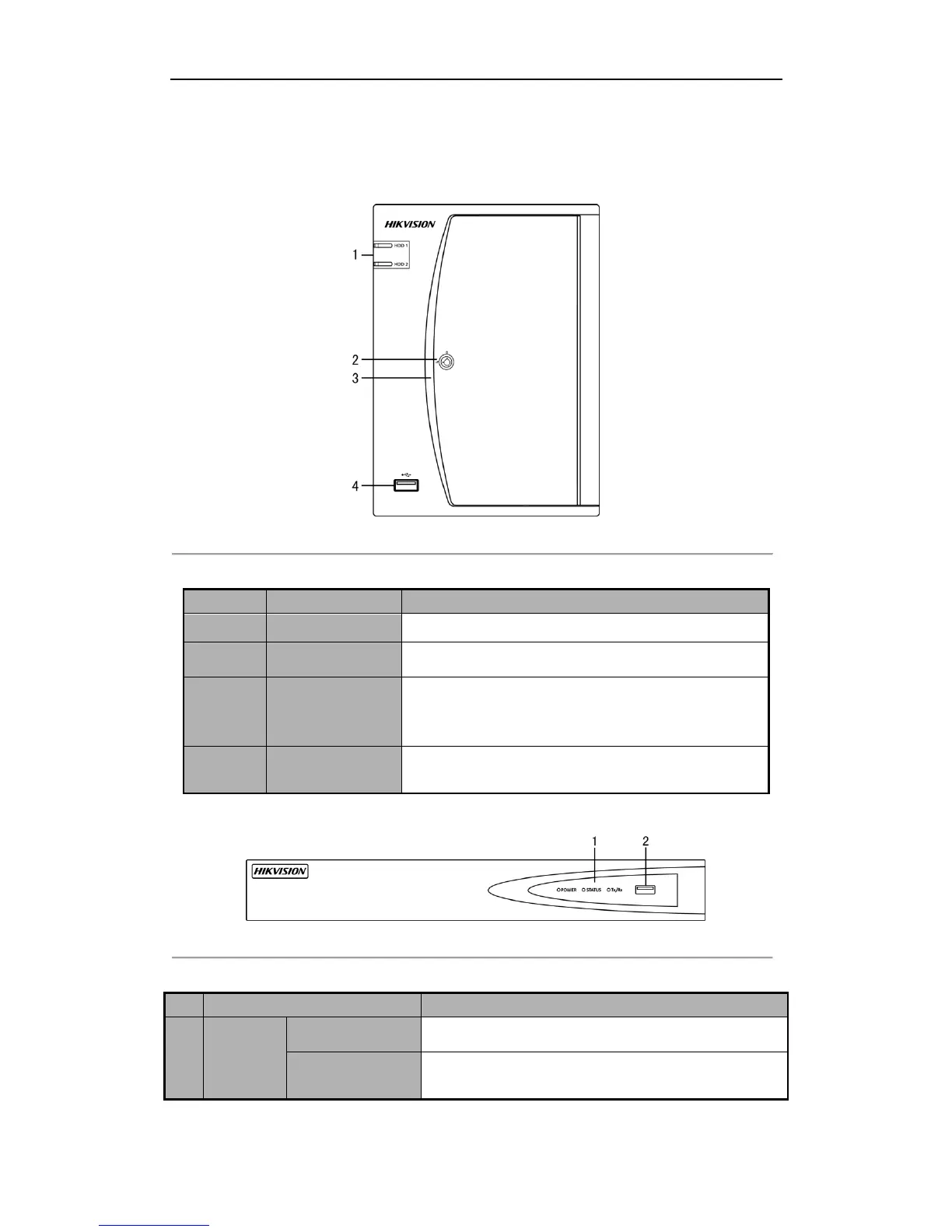

1.1 Front Panel
DS-7600NI-V and DS-7600NI-VP
Figure 1. 1 DS-7600NI-V and DS-7600NI-VP
Table 1. 1 Description of Control Panel Buttons
No.
Name
Description
1
HDD1/HDD2
Blinks red when data is being read from or written to HDD.
2
Panel Lock
Lock/unlock the front panel.
3
Running Status
Indicator
Indicator turns yellow when system is running.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
DS-7600NI-SN Series
Figure 1. 2 DS-7600NI-SN Series
Table 1. 2 Description of Control Panel Buttons
No.
Name
Description
1
Status
Indicator
Power
Power indicator turns yellow when system is running.
Status
Status indicator blinks red when data is being read from or written
to HDD.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
