HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
164

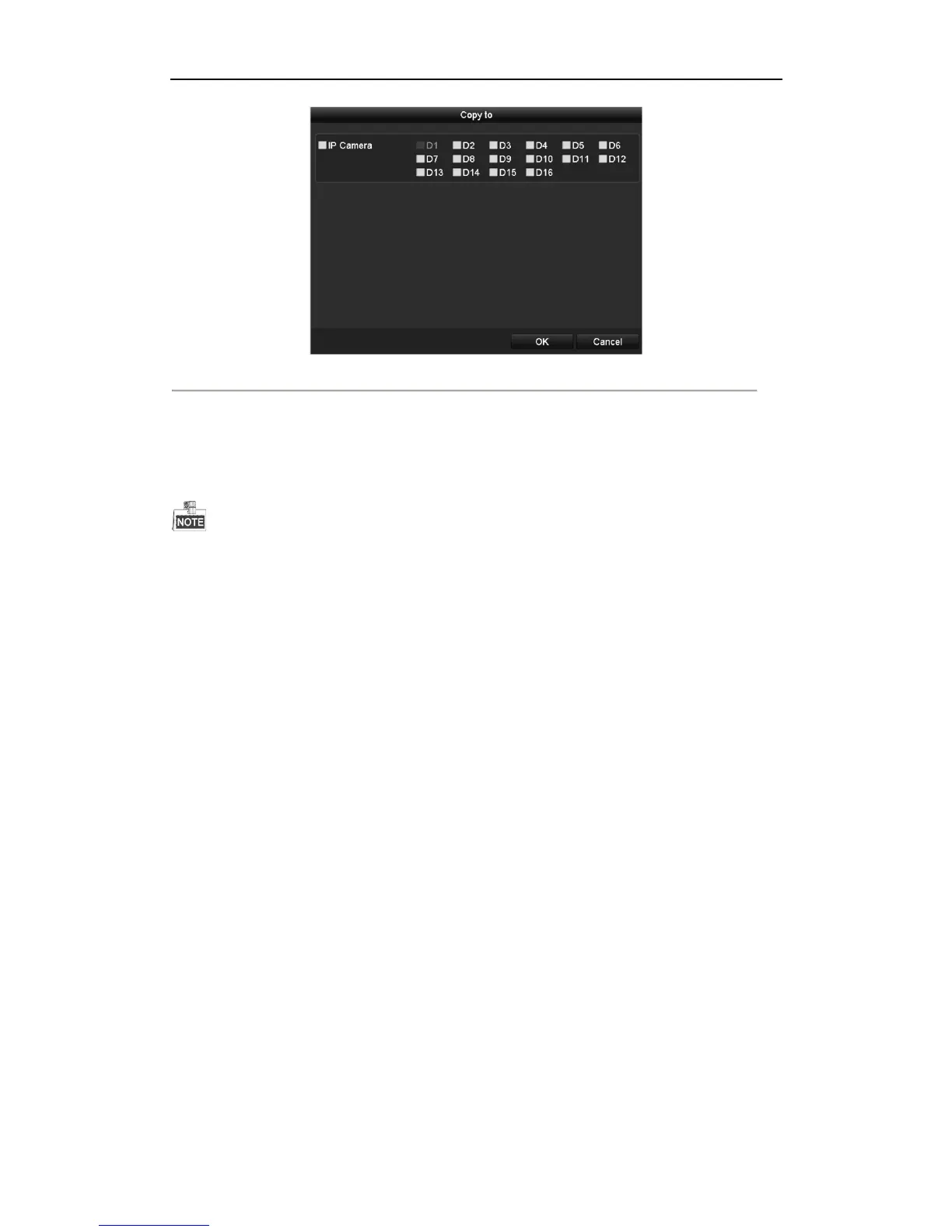

Figure 10. 18 Copy Settings to Other Camera(s)
6. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of IP
Camera to select all cameras.
7. Click the OK button to finish the Copy settings and back to the Storage Mode interface.
8. Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
