HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
26

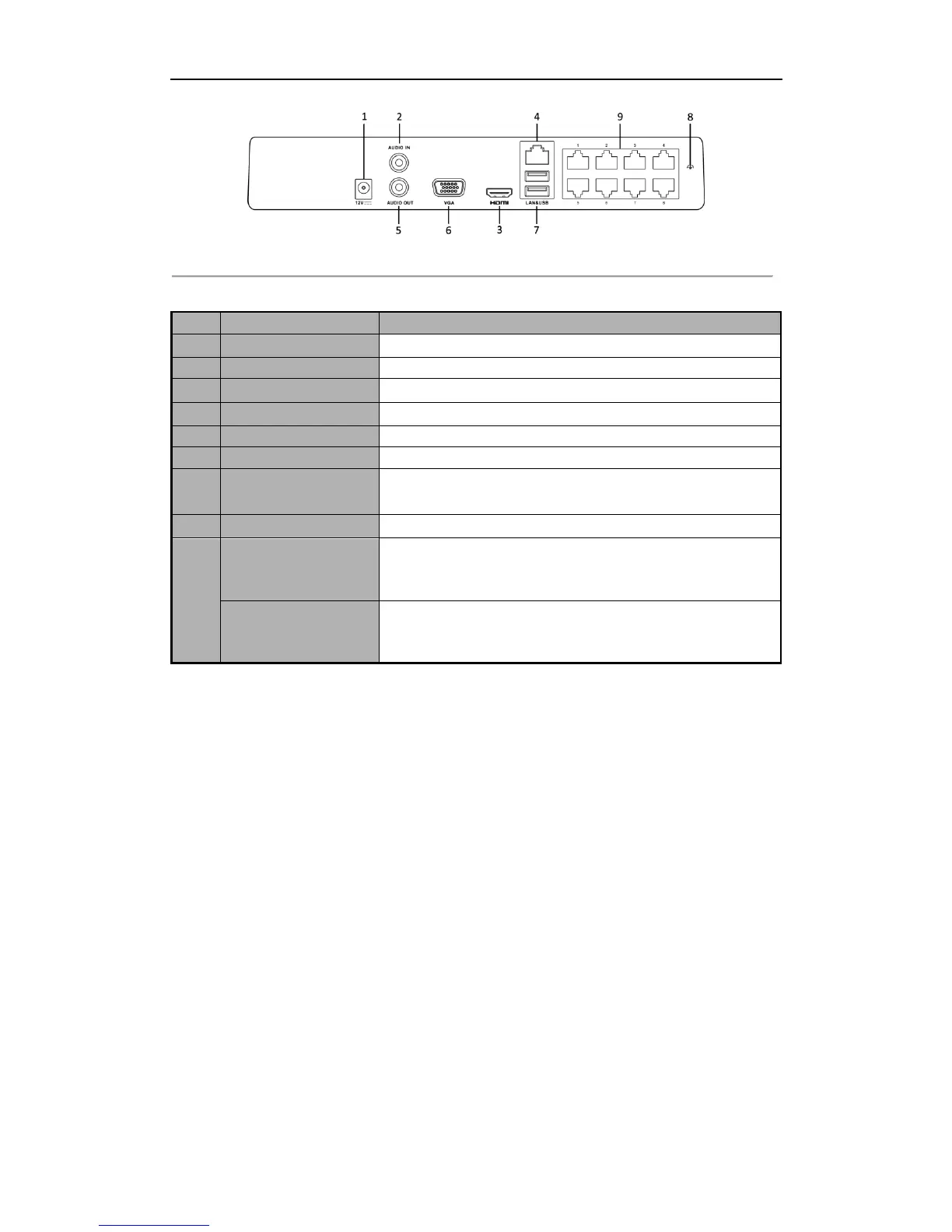

Figure 1. 19 DS-7108 & 7116NI-SN/N, DS-7108 & 7116NI-SN/P
Table 1. 13 Description of Rear Panel Interfaces
No.
Item
Description
1
Power Supply
12VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Network Interfaces with
switch function
(for DS-7100NI-SN/N)
Network interface for the cameras.
Network Interfaces with
PoE function (for
DS-7100NI-SN/P )
Network interface for the cameras and to provide power over Ethernet.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
