HIKVISION DS-K1102M Connecting Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K1T105&DS-K1T200 Series
Access Control Terminal
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 4

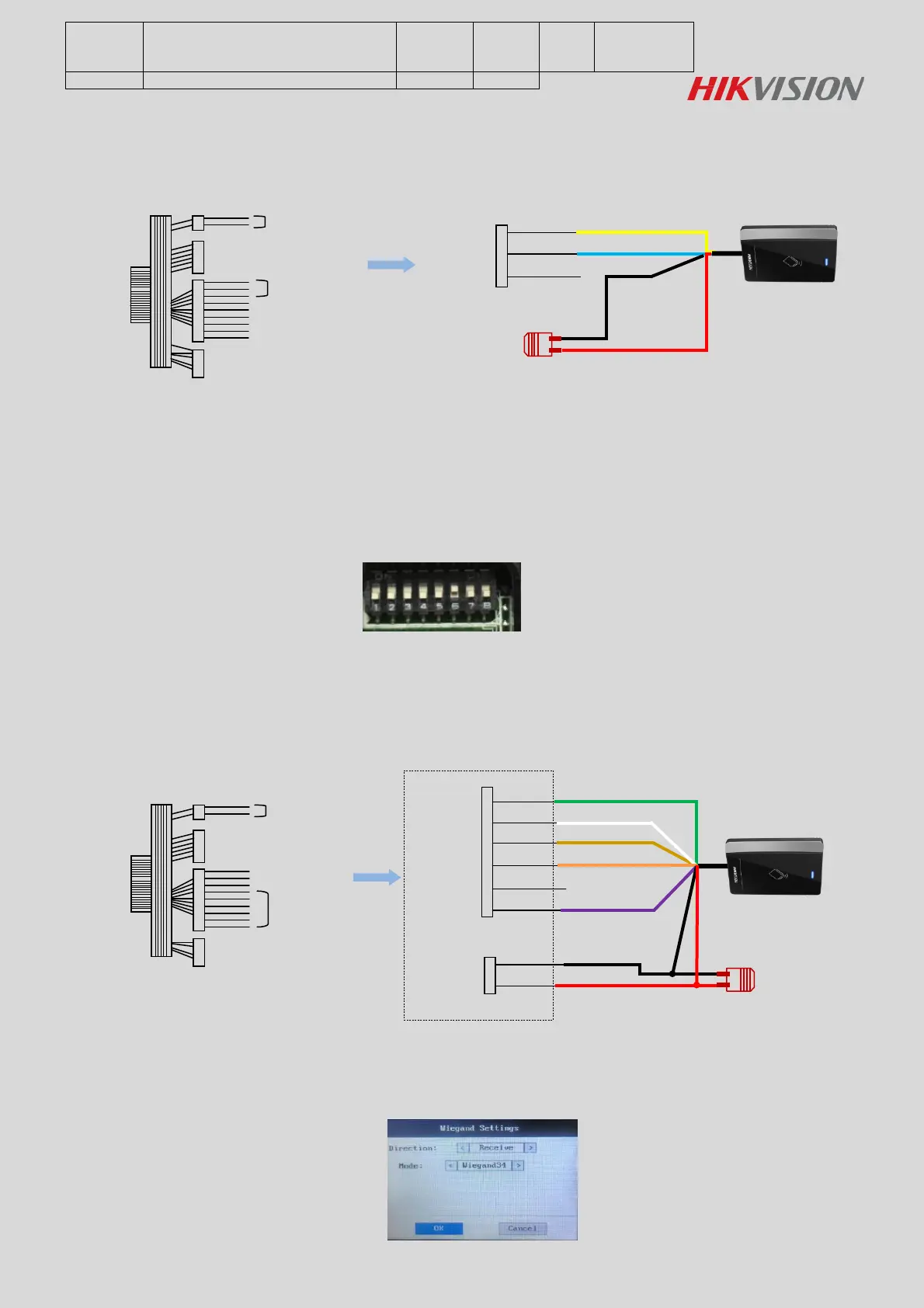

Step 2: Wiring
We recommend that customers use external power supply to card reader.
Please connect card reader as following picture:
Wiegand Wiring
Step 1: DIP Switch
When terminal adopts the wiegand interafce connecting card reader, terminal only supports Wiegand34
protocol. Please set the DIP switch firstly before connecting the external card reader, the binary value of
the card reader is 0000 0100, please set as the following picture;
Step 2: Wiring
We recommend that customers use external power supply to card reader.
Please know that the external power supply and the access control terminal should use the same GND
cable; Please connect card reader as following picture:
Step 3: Local Setting
Enter local configuration interface by inputting password, Comm  Wiegand, setting like below picture
shows:
Power Input
RS485
RS485
Interface
RS485+
RS485-
GND
RS485-/Blue
RS485+/Yellow
GND/Black
12V/Red
External Power
Supply
Power Input
Wiegand
Wiegand
Interface
WG_ERR
TAMPER
BUZZER
GND/Black
+12V/Red
Power Supply
W0
W1
WG_OK
W1/White
W0/Green
ERR/Orange
OK/Brown
BUZZER/Purple
Power
Input
GND
12V

HIKVISION DS-K1102M Specifications

General

Internal	No
Certification	IP64 CE, FCC
Product color	Black
LED indicators	Power, Status
Housing material	Acrylonitrile butadiene styrene (ABS)
Compatible memory cards	-
Input voltage	12 V
Output current	500 mA
Power source type	DC
Power consumption (max)	2 W
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Interface	RS485 / Wiegand
Supported protocols	Mifare
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Built-in processor	Yes
International Protection (IP) code	IP64
Frequency	13.56 MHz
Maximum read range	50 mm

Weight and Dimensions

Depth	121 mm
Width	86.5 mm
Height	14 mm
Weight	140 g
