HIKVISION DS-K1802 Series User Manual

DS-K1802 Series Card Reader
4
Color
Description
White
Wiegand W1
Blue
Wiegand 26/ 34
2.2 Wiring Cables
Purpose:
Wire the cables between controller and card reader, thus to
establish the communication between them.
Steps for Wiegand communication mode:
1. Set the Wiegand mode before power-on:
Cable
Wiring Method
Wiegand Mode
Blue Wiegand Cable
Grounded
Wiegand 26
Not Grounded
Wiegand 34
2. Wiring the cable between controller and card reader as
shown below.
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader
Card Reader
Card Reader
ERR
OK

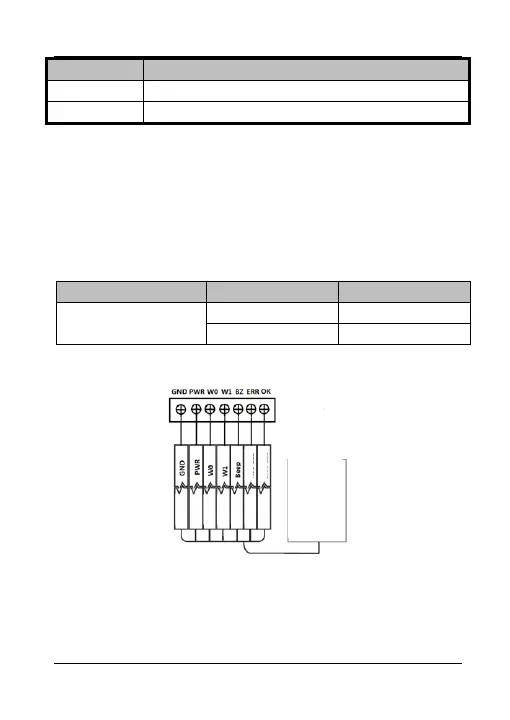

Figure 2-1 Wiring for Wiegand Communication Mode
2.3 Installing Card Reader
Steps:
